Timing Cover





Timing Case Cover
Install the M8 bolts of cylinder head on timing case cover.

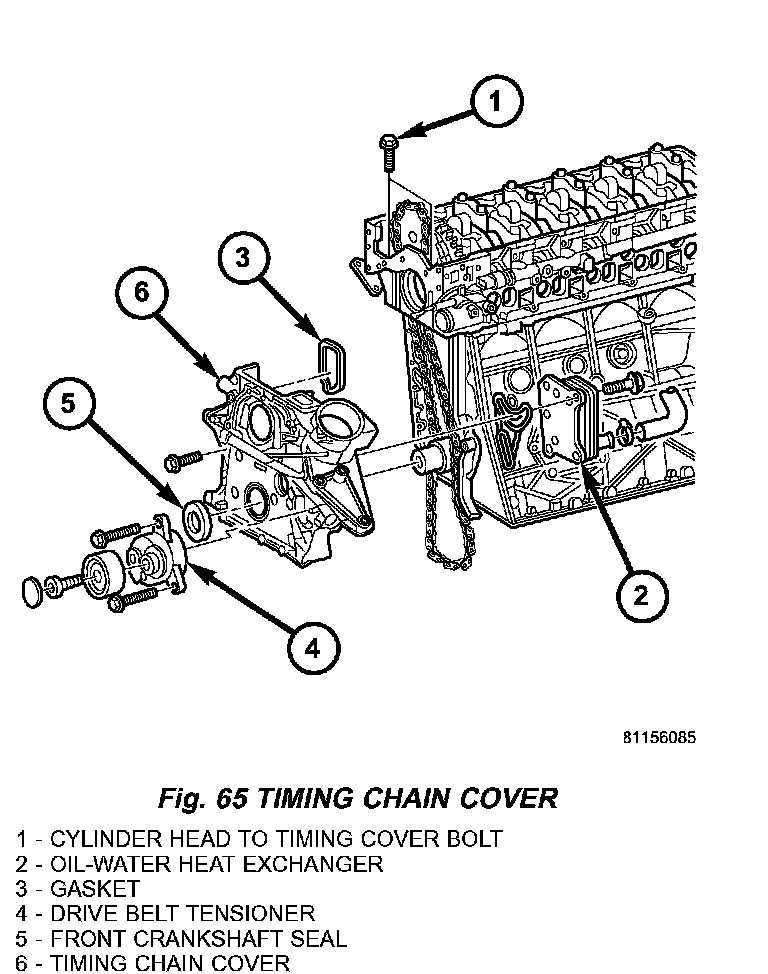

Tighten bolts to 20 Nm (177 inch lbs.) (Fig. 65).
