Verification Tests

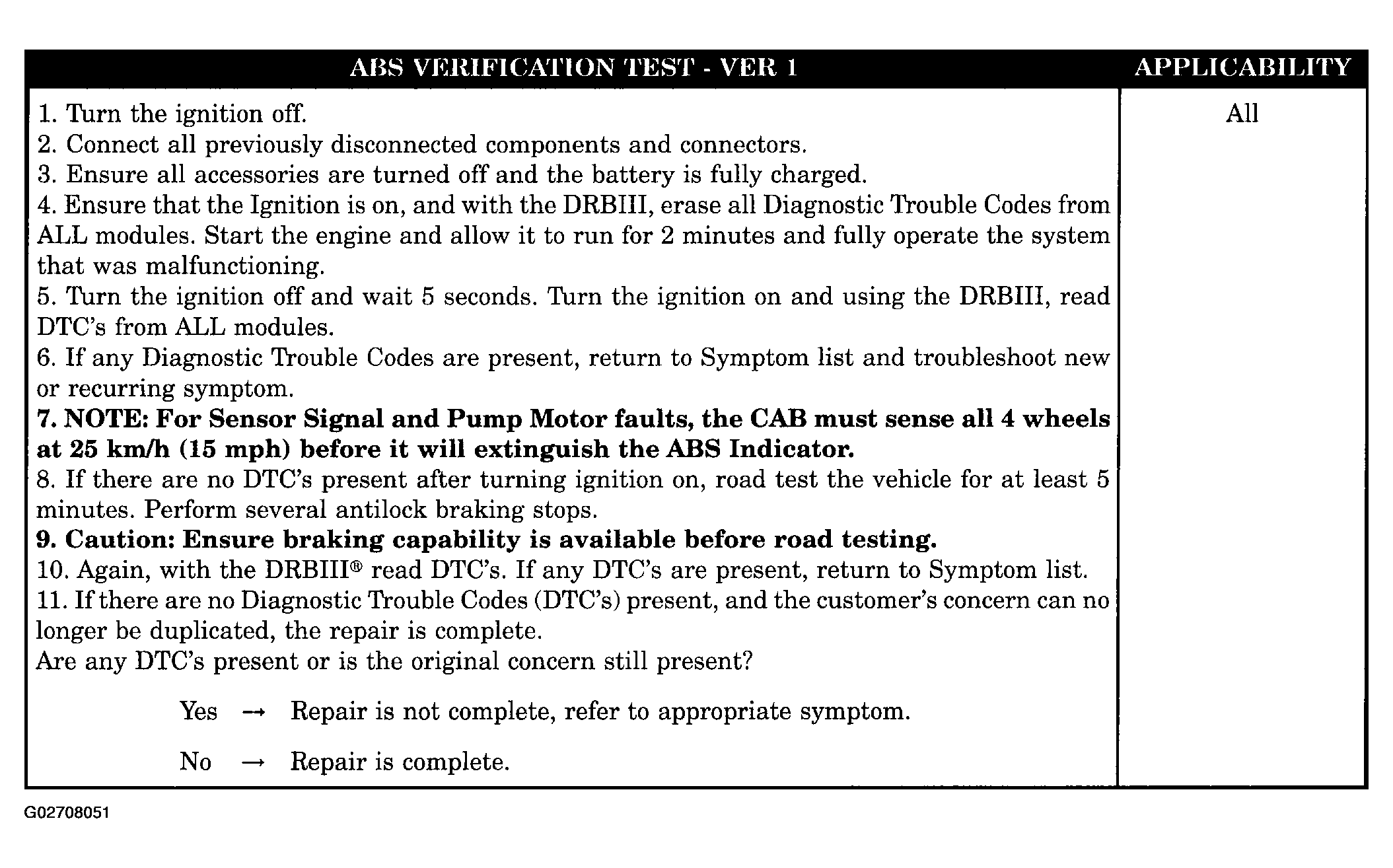

Fig 1: ABS Verification Test - VER 1

Courtesy of DAIMLERCHRYSLER CORP.

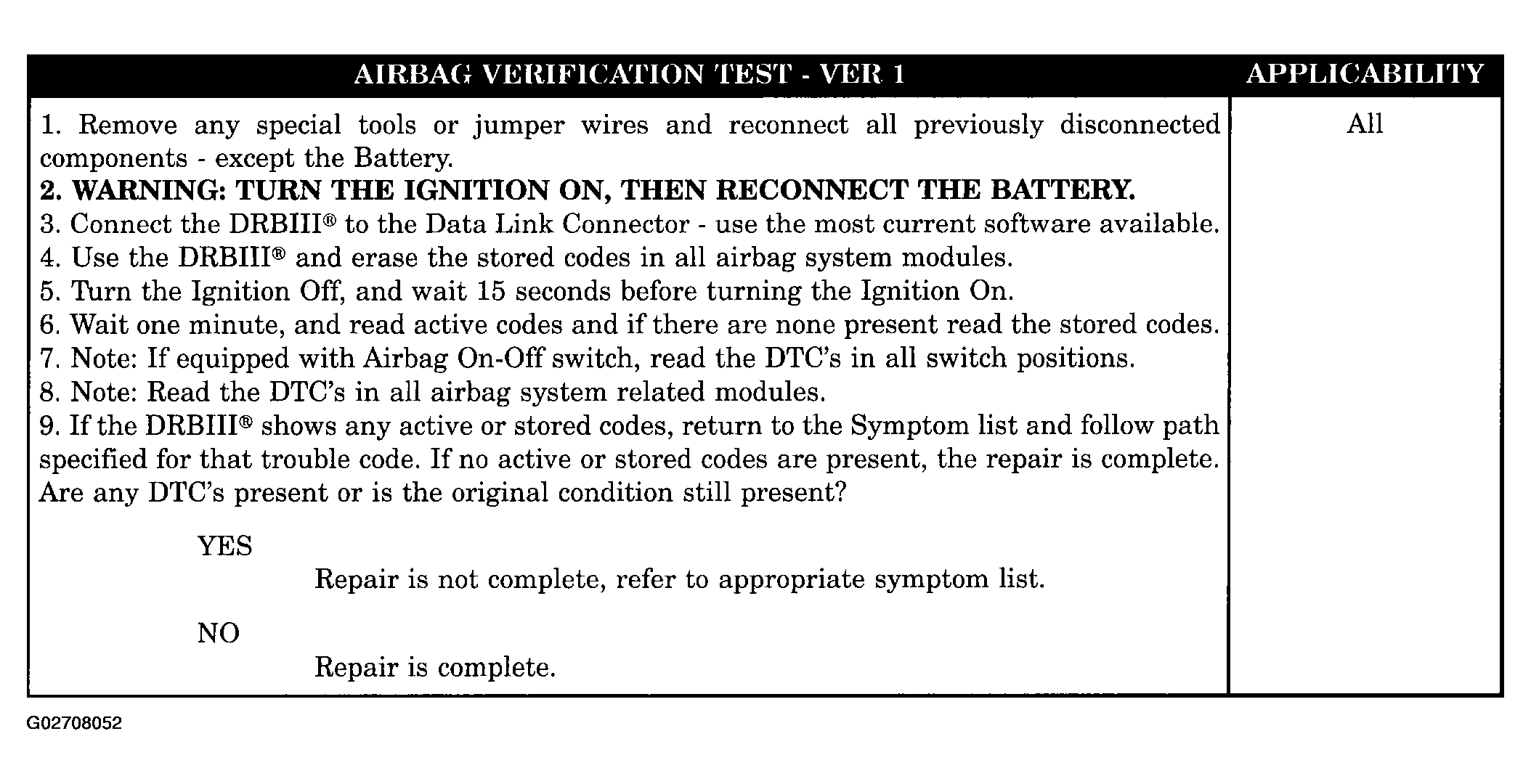

Fig 2: Airbag Verification Test - VER 1

Courtesy of DAIMLERCHRYSLER CORP.

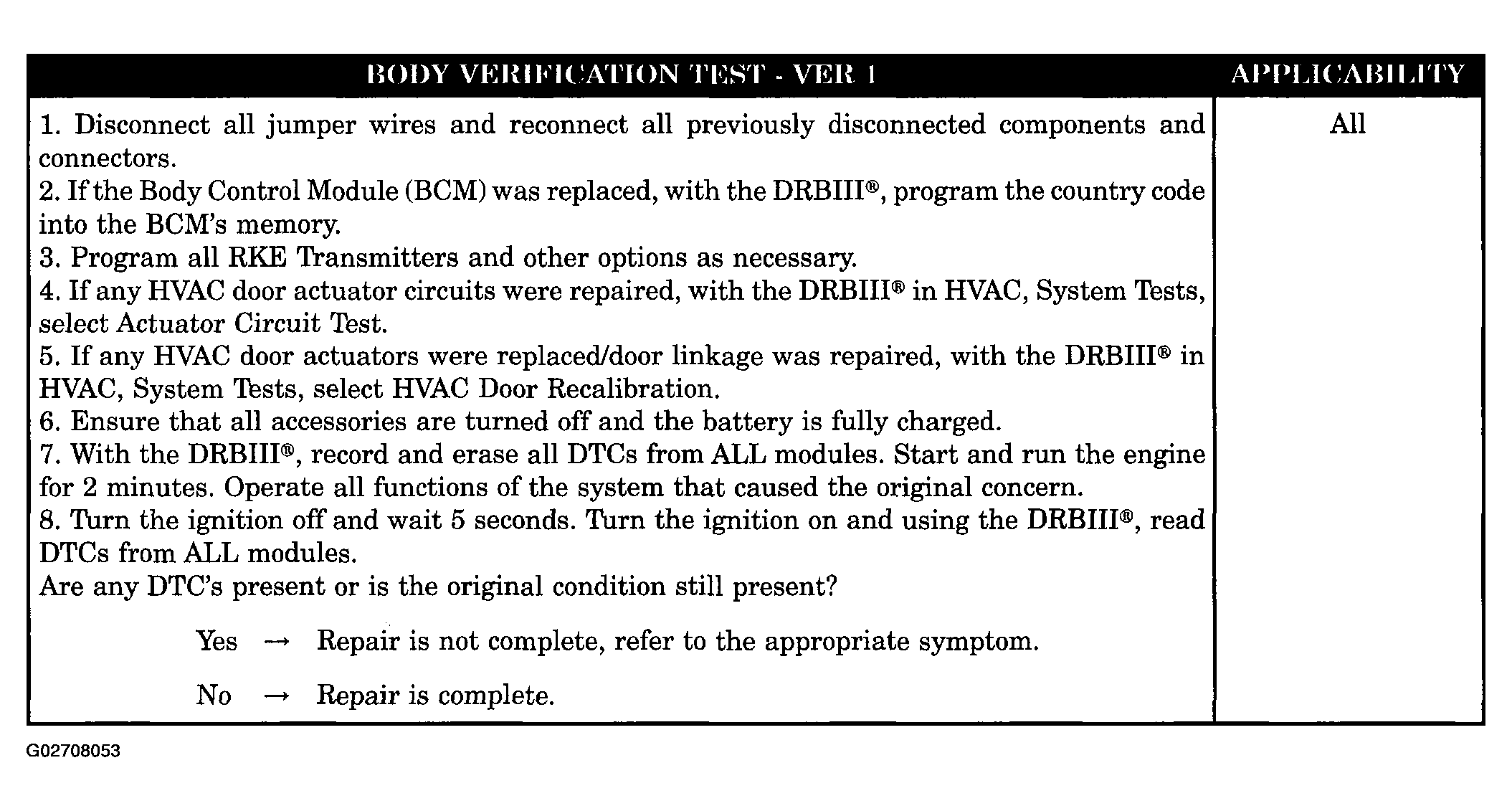

Fig 3: Body Verification Test - VER 1

Courtesy of DAIMLERCHRYSLER CORP.

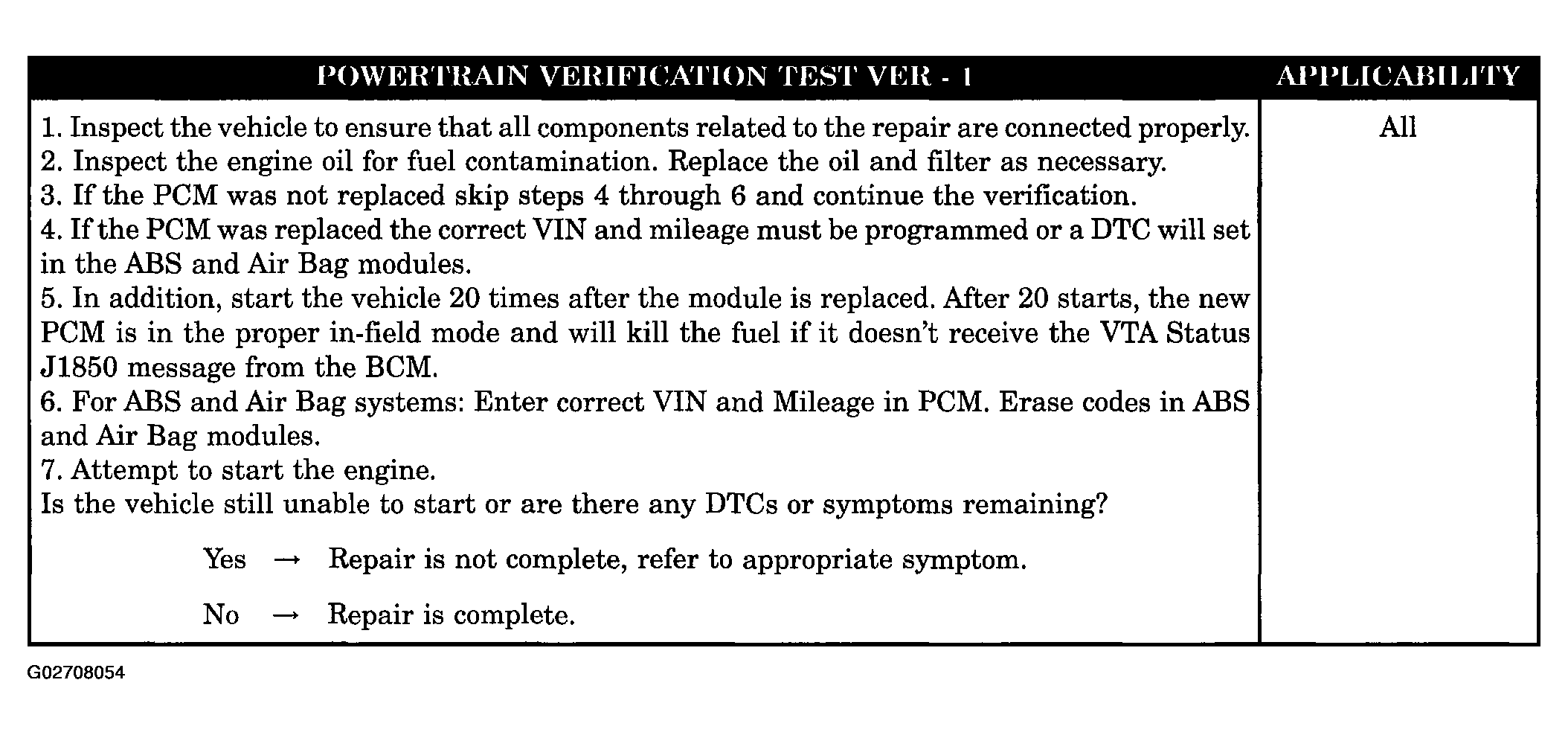

Fig 4: Powertrain Verification Test - VER 1

Courtesy of DAIMLERCHRYSLER CORP.

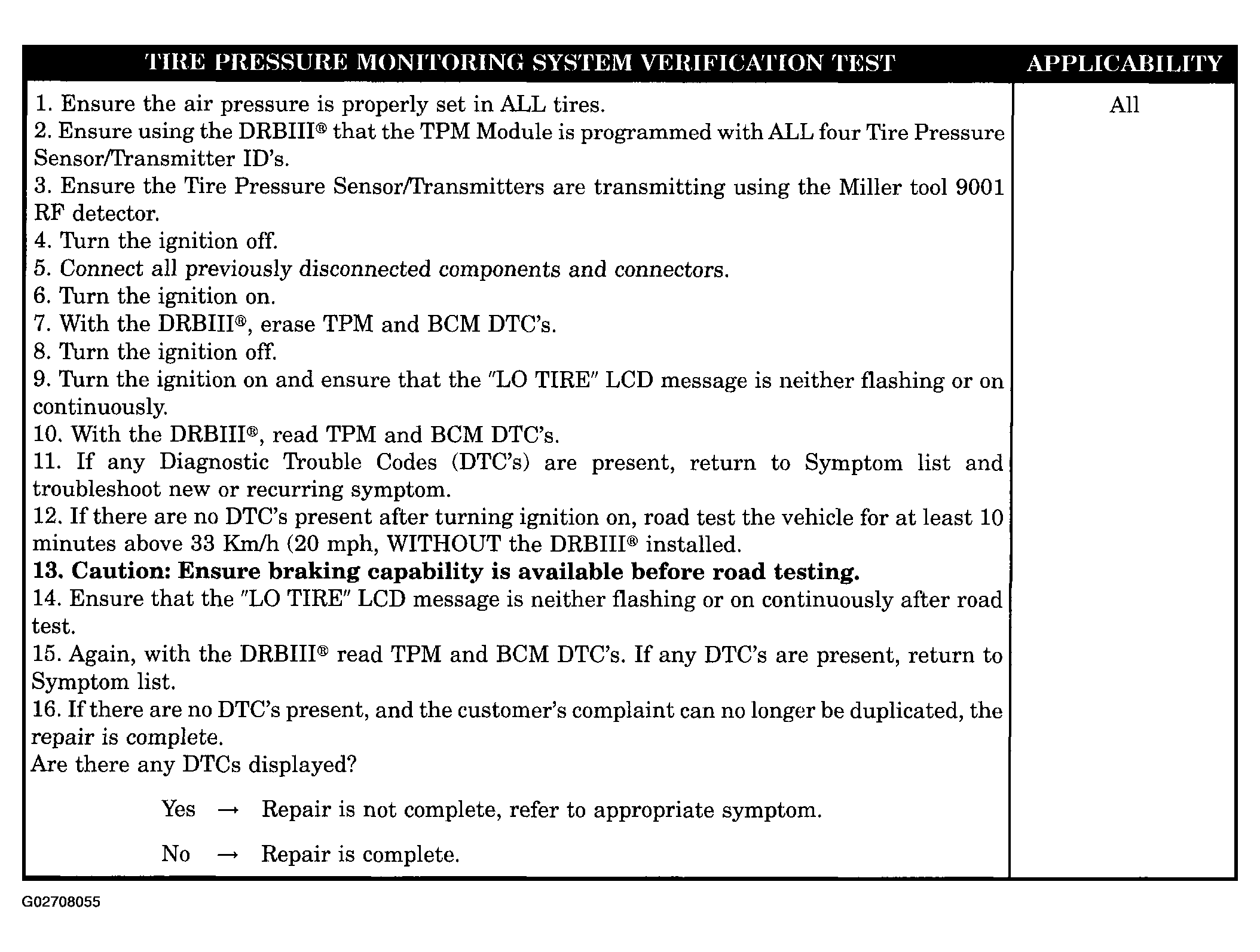

Fig 5: Tire Pressure Monitoring System Verification Test

Courtesy of DAIMLERCHRYSLER CORP.

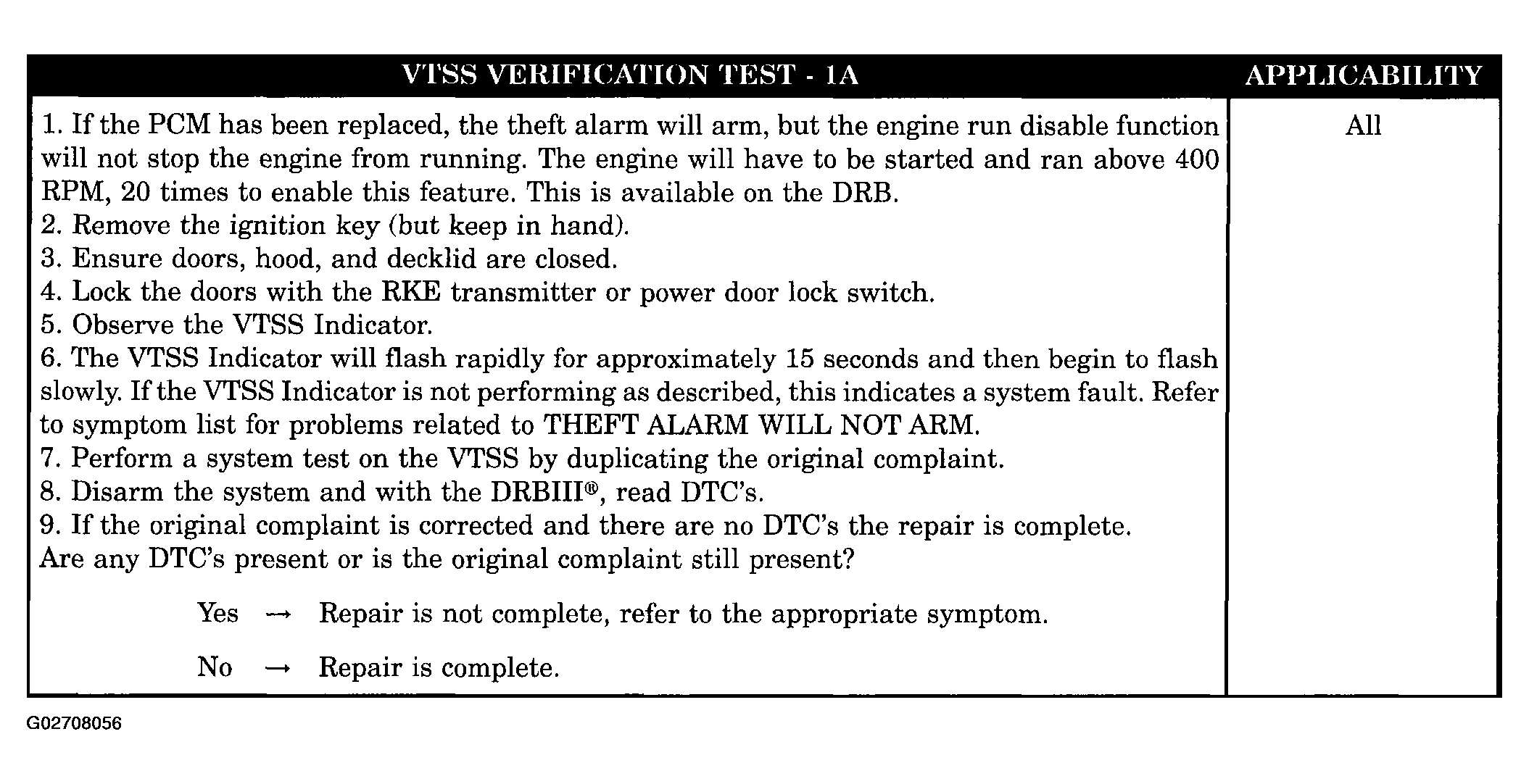

Fig 6: VTSS Verification Test - 1A

Courtesy of DAIMLERCHRYSLER CORP.
