Engine Block: Inspection

The cylinder walls should be checked for out-of-round and taper with Special Tool C-119 (Fig 1). If the cylinder walls are badly scuffed or scored, the cylinder bore can be machined oversize. Oversize piston and rings are available.

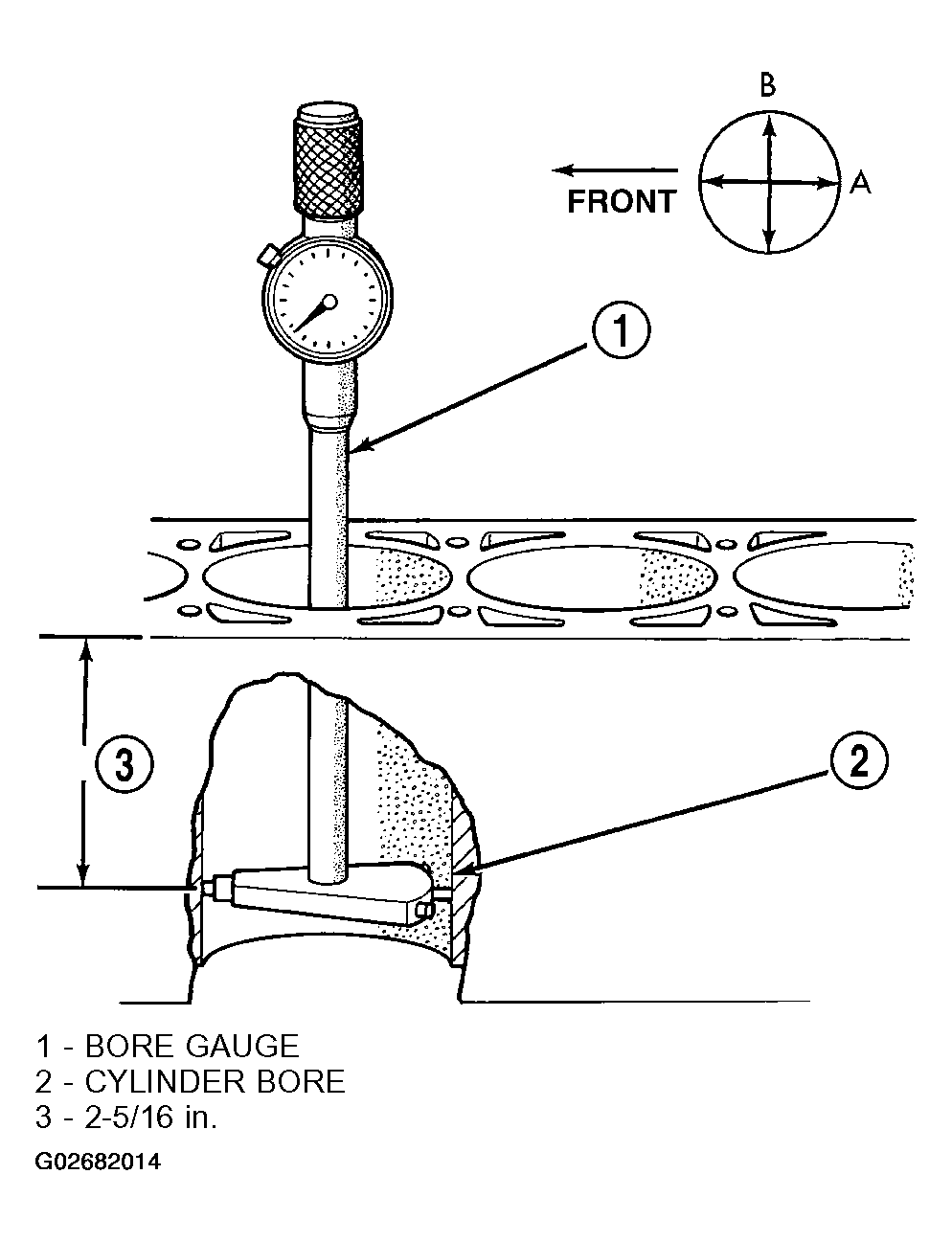

Fig 1: Measuring Cylinder Bore Size

Courtesy of DAIMLERCHRYSLER CORP.

Measure the cylinder bore at three levels in directions A and B (Fig 1). Top measurement should be 12 mm (0.50 in.) down and bottom measurement should be 12 mm (0.50 in.) up from bottom of bore. (Refer to SPECIFICATIONS ) for cylinder bore and piston specifications.
