Oil Temperature Sensor: Installation

  1. Apply thread sealer to oil temperature sensor threads.

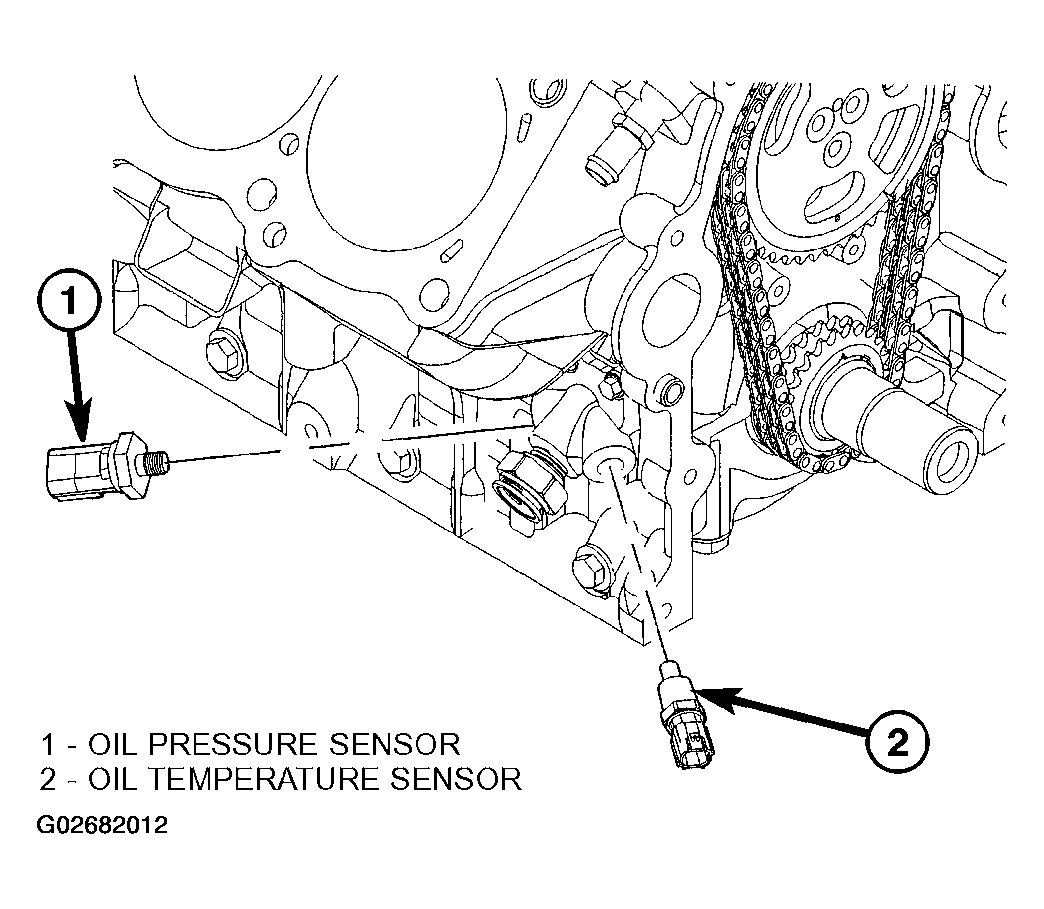

  2. Install oil temperature sensor (Figure).
  3. Connect electrical connector.
