Map Sensor: Removal

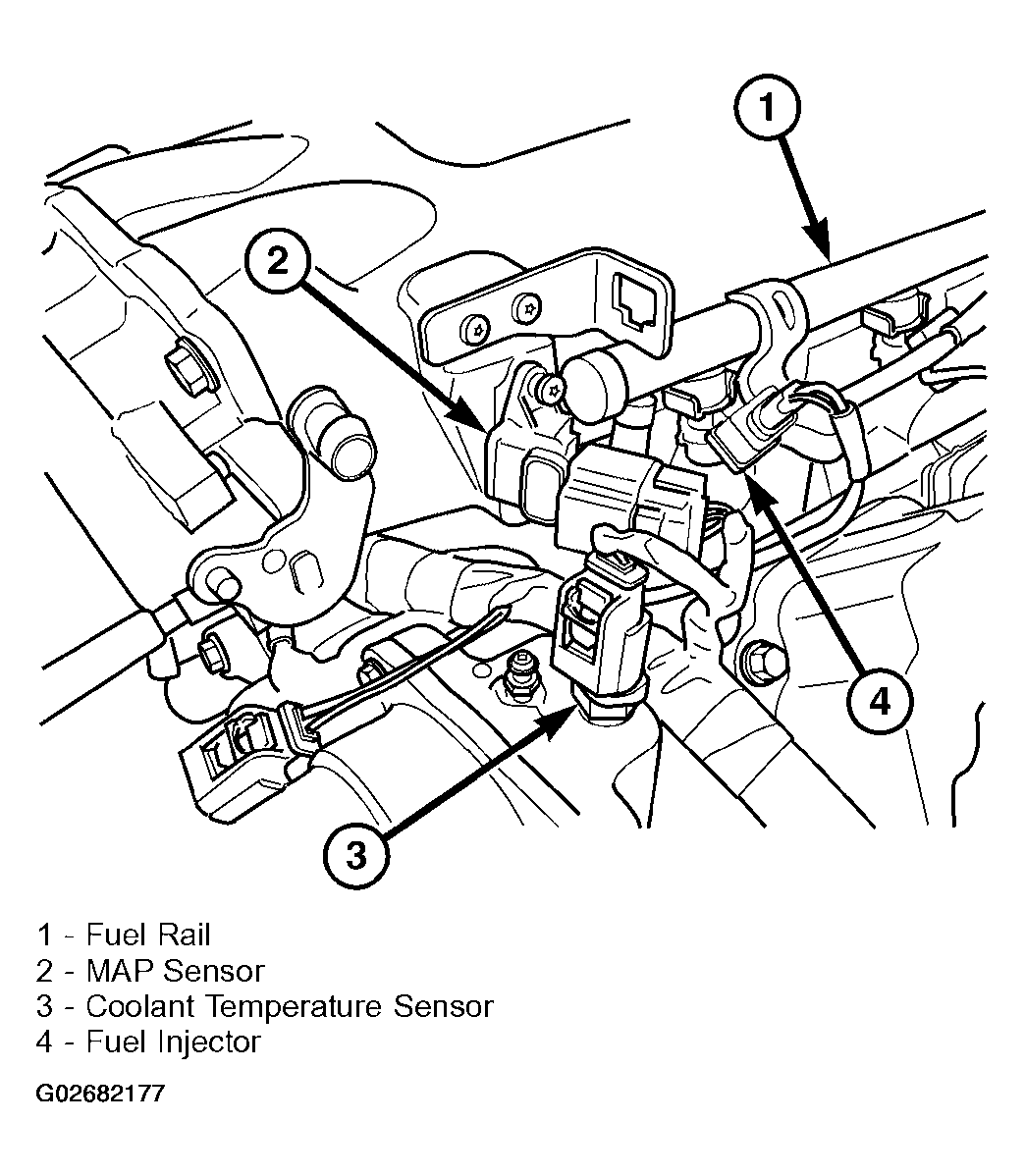

The manifold absolute pressure sensor is mounted on the drivers side of the intake manifold (Figure ).

Disconnect the electrical connector from the MAP sensor.
Remove MAP sensor mounting screws.
