Fuel System

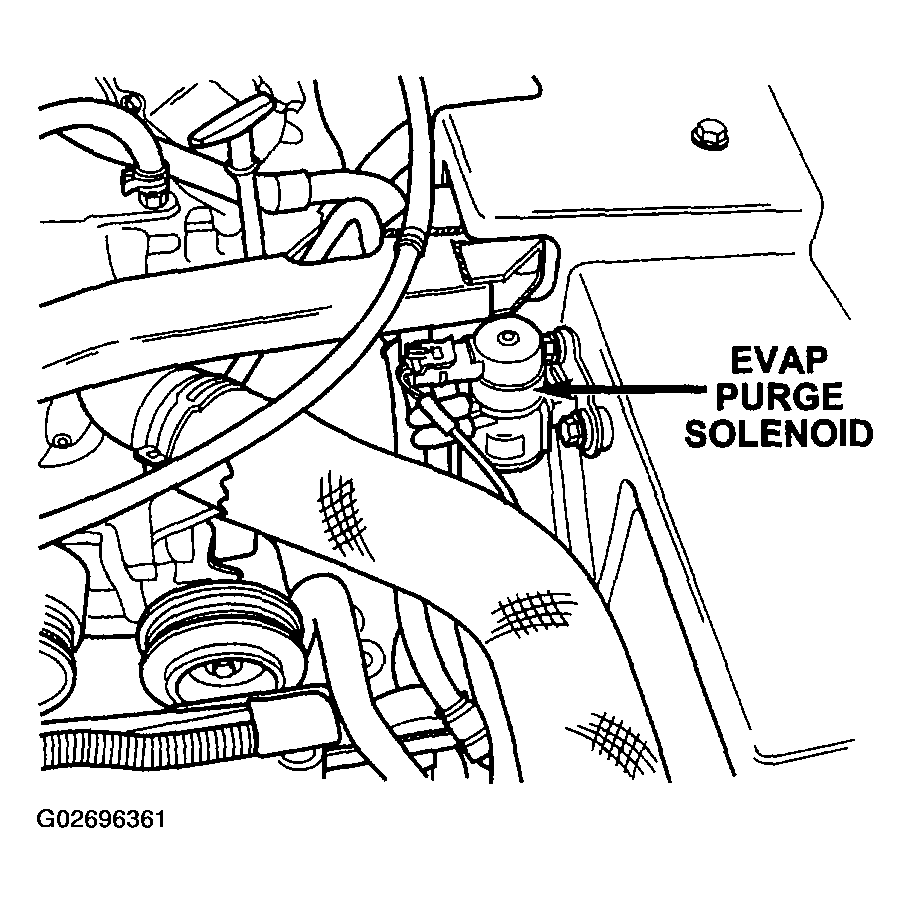

Fig 1: Locating EVAP Purge Solenoid

Courtesy of DAIMLERCHRYSLER CORP.

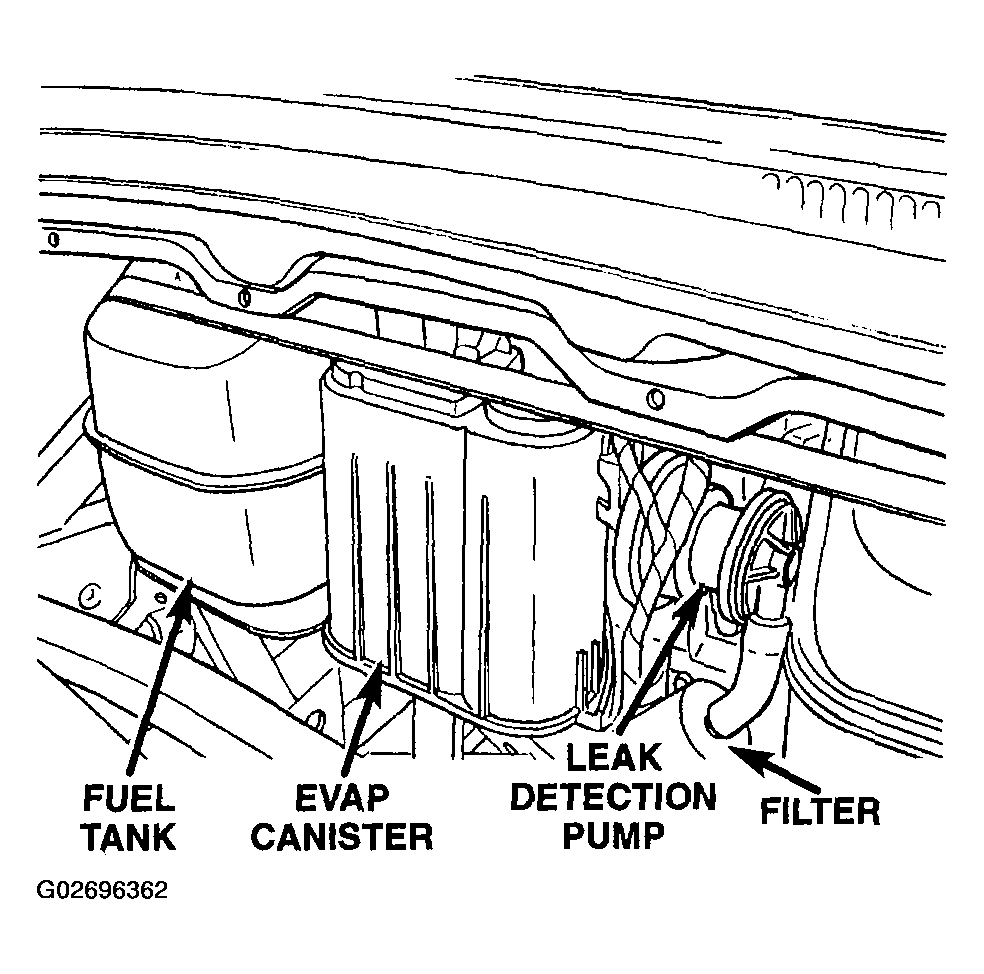

Fig 2: Locating EVAP Canister Solenoid

Courtesy of DAIMLERCHRYSLER CORP.

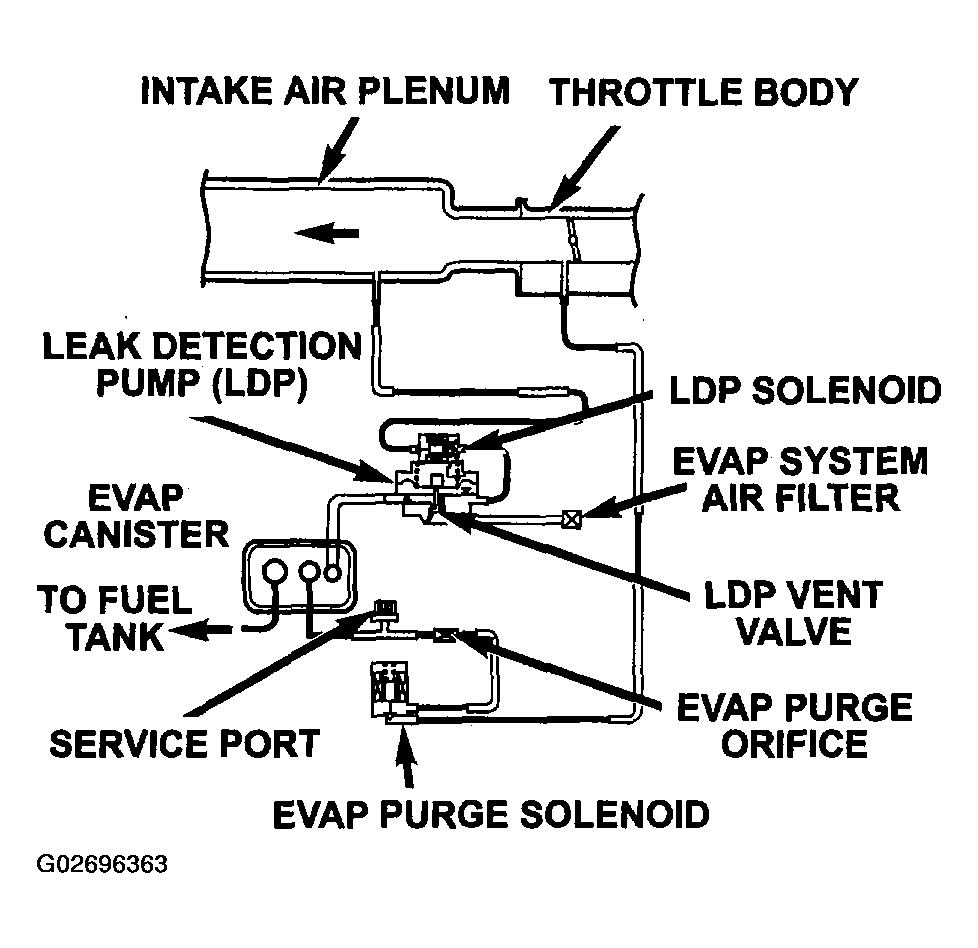

Fig 3: Locating EVAP Leak Detection System Components

Courtesy of DAIMLERCHRYSLER CORP.

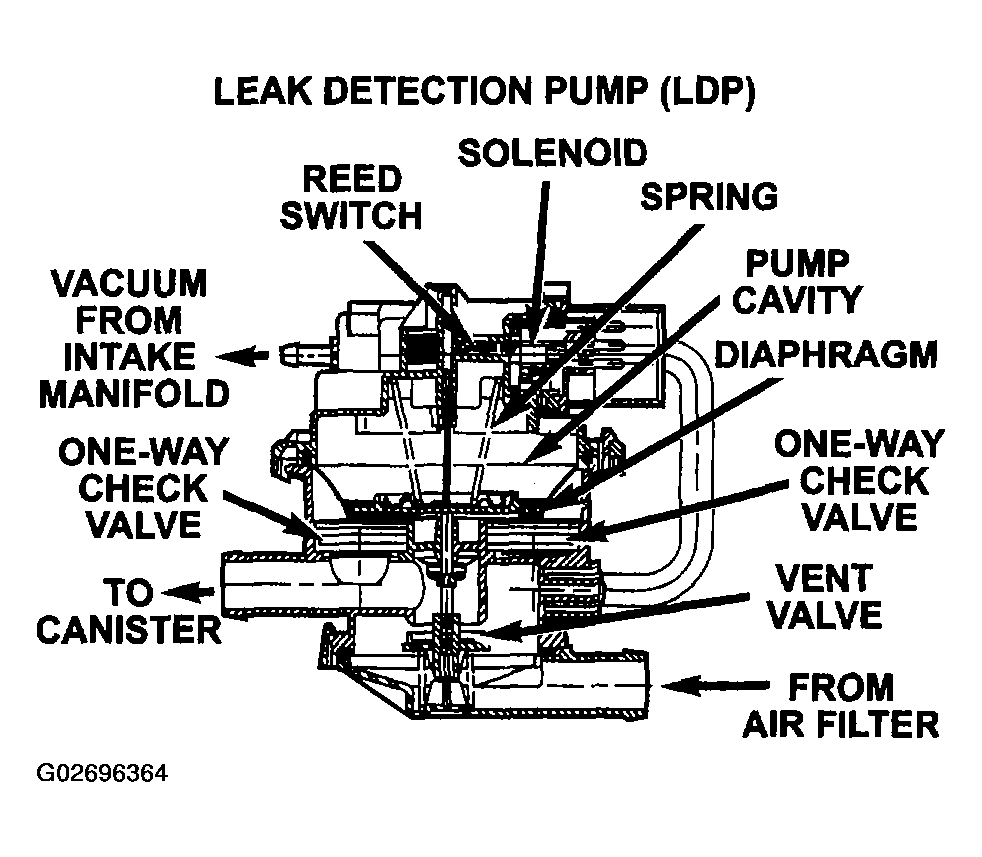

Fig 4: Locating Leak Detection Pump Assembly Components

Courtesy of DAIMLERCHRYSLER CORP.

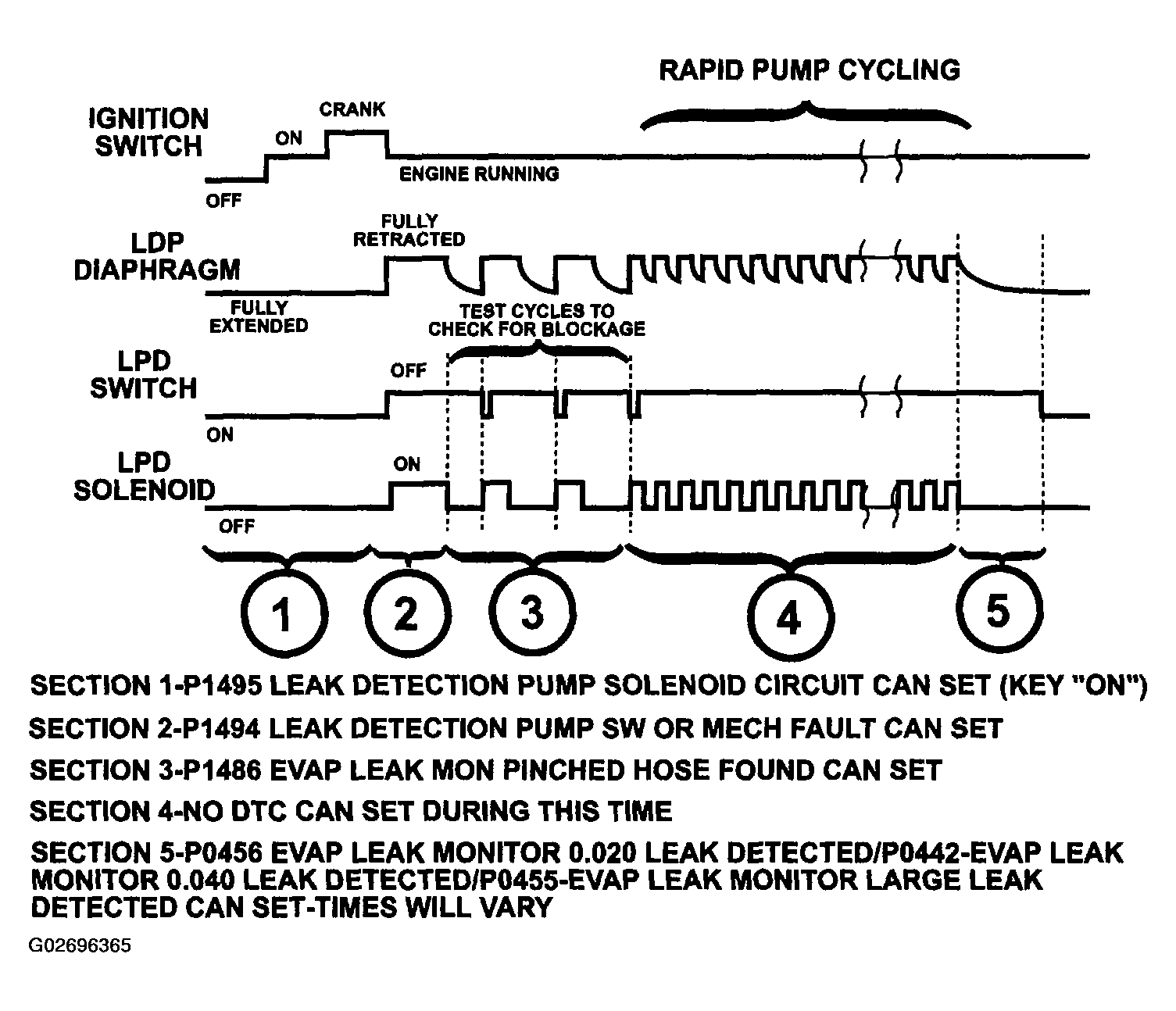

Fig 5: EVAP Leak Detection Test Sequence

Courtesy of DAIMLERCHRYSLER CORP.
