Alignment Specifications

NOTE: All specifications are given in degrees. All wheel alignments are to be set with vehicle at its proper design height.

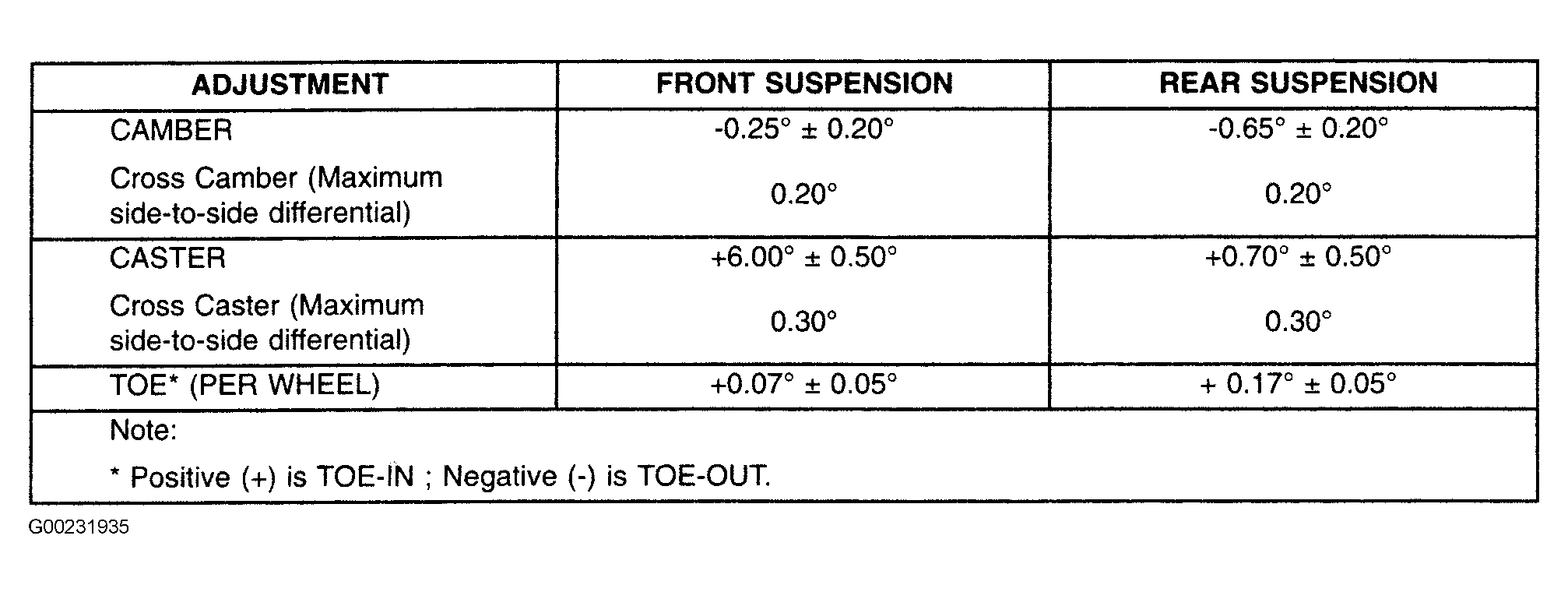

Fig 1: Wheel Alignment Specifications

Courtesy of DAIMLERCHRYSLER CORPORATION

NOTE: All height specifications are taken using front and rear suspension height gages and adapters.

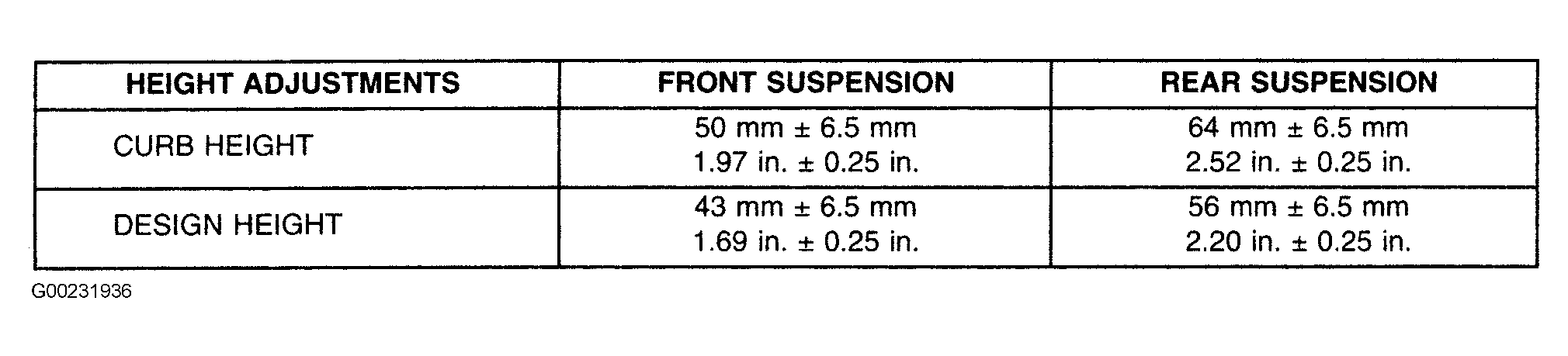

Fig 2: Curb & Design Height Specifications

Courtesy of DAIMLERCHRYSLER CORPORATION

NOTE: In the following illustration, all specifications are listed per wheel. Positive (plus) toe is toe-in. Negative (minus) toe is toe-out.

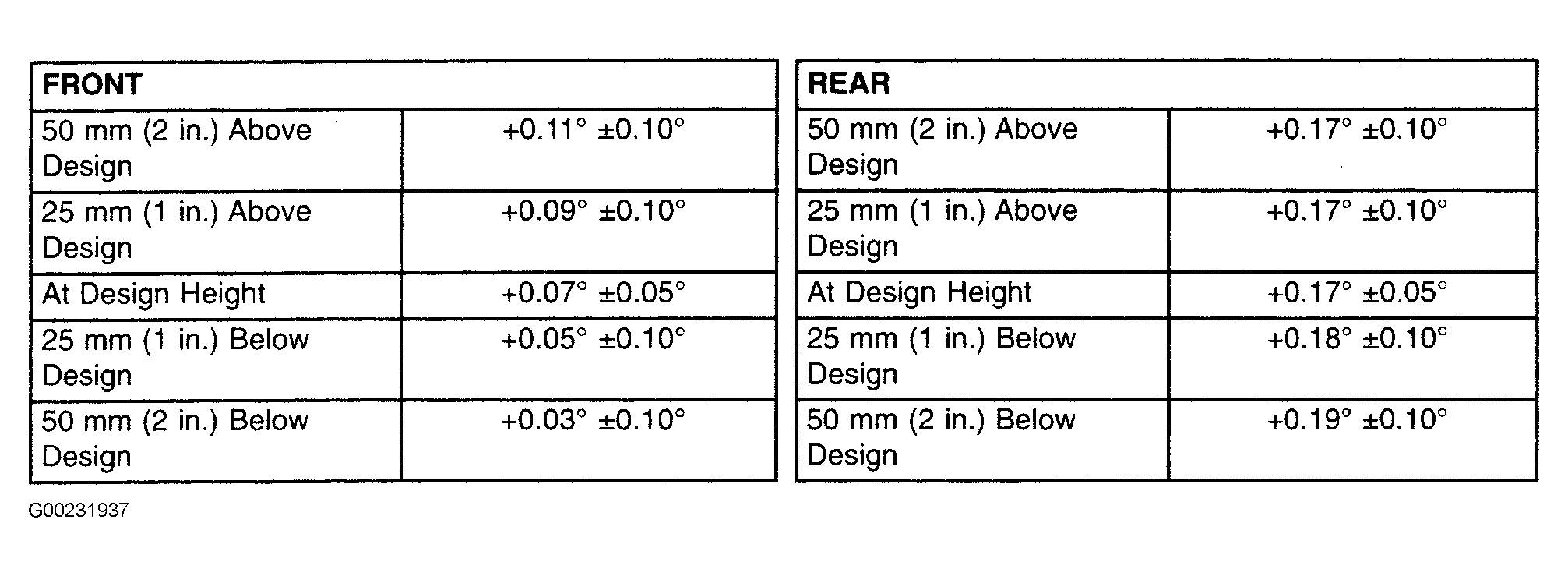

Fig 3: Dynamic Toe Pattern Specifications

Courtesy of DAIMLERCHRYSLER CORPORATION
