Cruise Control Servo: Service and Repair

REMOVAL
1. Release hood latch and open hood.
2. Disconnect the negative battery cable.

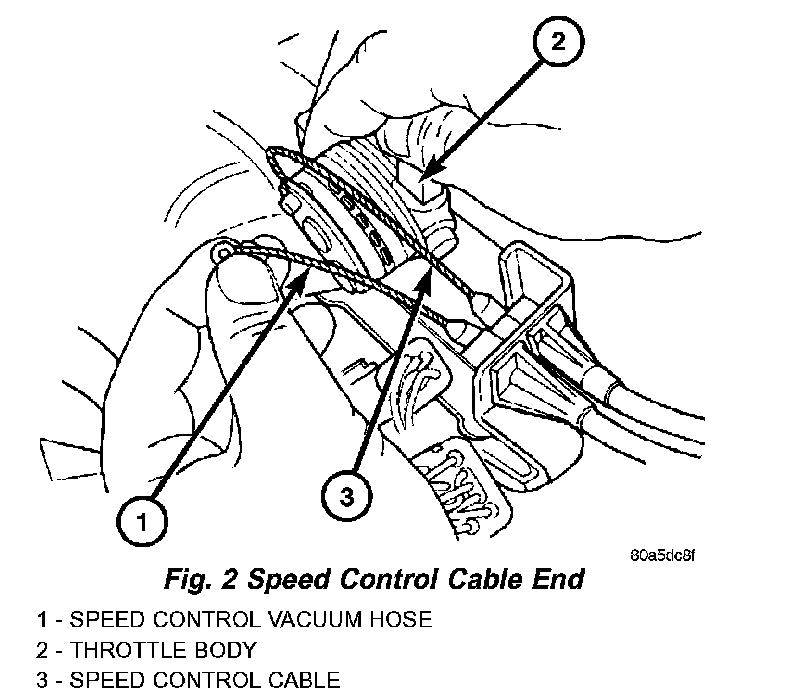

Fig.2 Speed Control Cable End:

3. Disconnect the throttle and speed control cable ends from throttle body.
4. Depress lock tabs holding speed control and throttle cable casing to cable mount bracket.
5. Disconnect vacuum line from speed control servo that leads to the battery tray/vacuum reservoir.

Fig.3 Battery Tray/Vacuum Reservoir:

6. Remove battery tray/vacuum reservoir, refer to the Battery section for more information.

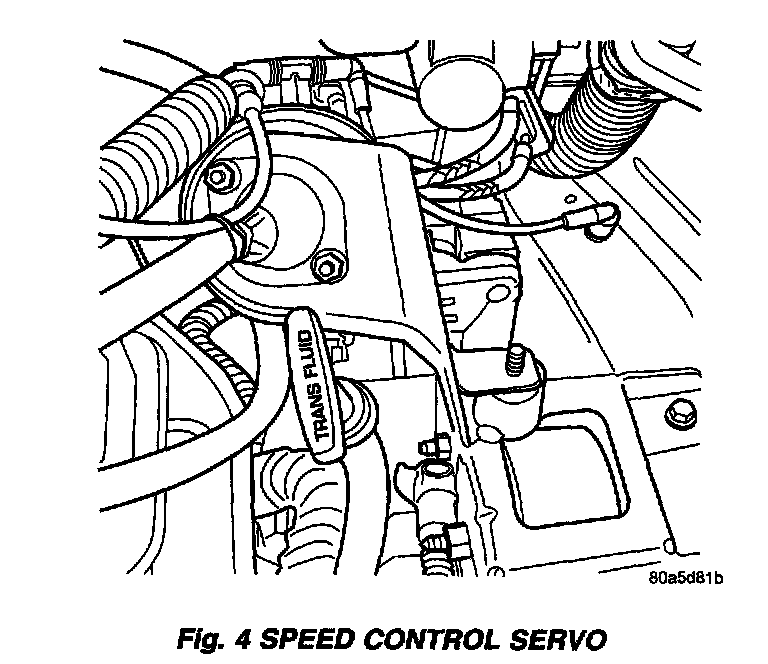

Fig.4 Speed Control Servo:

7. Remove speed control servo and bracket.
8. Disconnect wire connector from speed control servo.
9. Remove speed control servo.

INSTALLATION
Transfer speed control cable to replacement speed control servo.
1. Install retaining clip to cable at servo.
2. Install 2 nuts at cable to servo and servo bracket, tighten to 7 Nm (60 in. lbs.).
3. Connect electrical connector to servo.
4. Connect vacuum line to speed control servo that leads to the battery tray/vacuum reservoir.
5. Install speed control servo and bracket.
6. Install battery tray/vacuum reservoir, refer to the Battery section for more information.
7. Install speed control and throttle cable casing to cable mount bracket.
8. Connect the throttle and speed control cable ends to throttle body.
9. Connect the negative battery cable.
