Connector Views

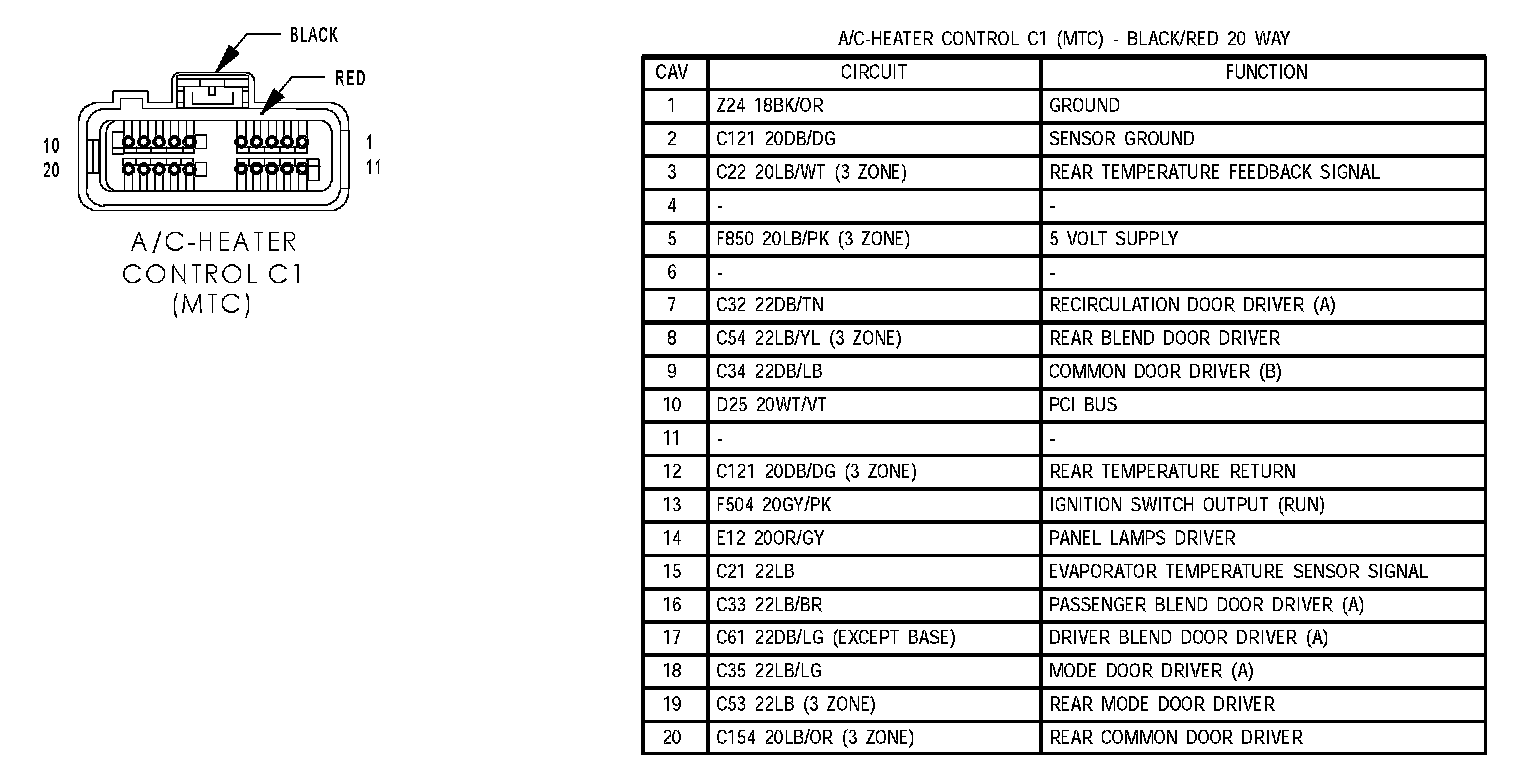

A/C Heater Control C1 (MTC):






A/C Heater Control C2 (MTC):






Auto Temp Control C1:






Auto Temp Control C2:






Auto Temp Control C3:






Rear A/C-Heater Unit (3 Zone ATC):






Rear Auto Temp Control Switch (3 Zone ATC):
