Transmission Control Module: Description

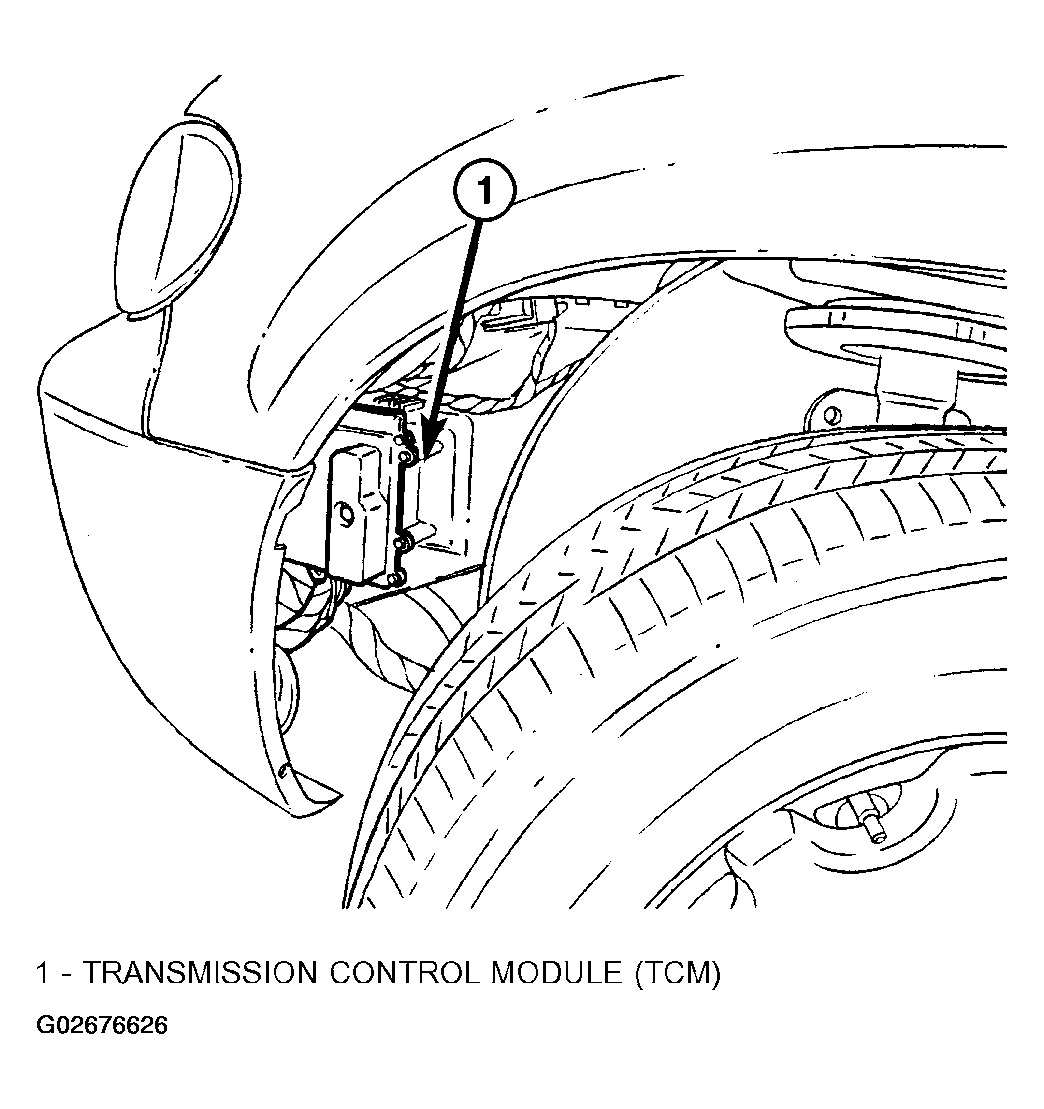

On models equipped with the 2.4L Engine option, the Transmission Control Module (TCM) is located behind the left fender and is fastened with three screws to three clips in the left frame rail forward of the suspension (Fig 1). Models equipped with the 3.3/3.8L Engine option utilize a Powertrain Control Module (PCM) which incorporates TCM functionality.
