Transmission Control Module: Removal

NOTE: If transmission control module is being replaced with a new or replacement unit, the Pinion Factor and Quick Learn procedures must be performed. (Refer to STANDARD PROCEDURE ).
  1. Disconnect battery negative cable.
  2. Raise vehicle on hoist.
  3. Remove left front tire/wheel assembly.
  4. Pull back splash shield to gain access to TCM location.
  5. Disconnect TCM 60-way connector (Fig 1).

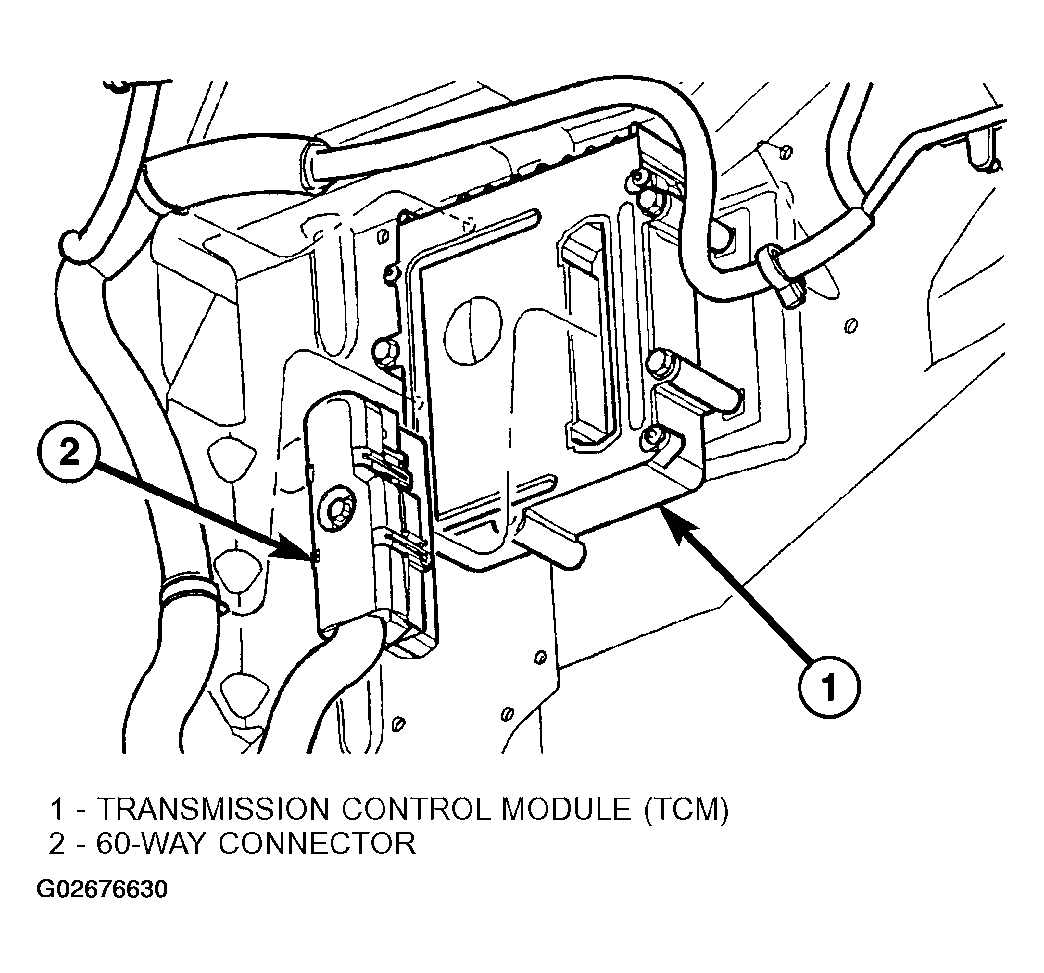

    Fig 1: Locating Transmission Control Module 60-Way Connector
    G02676630Courtesy of DAIMLERCHRYSLER CORP.
  6. Remove three (3) TCM-to-rail screws and remove TCM from vehicle (Fig 2).

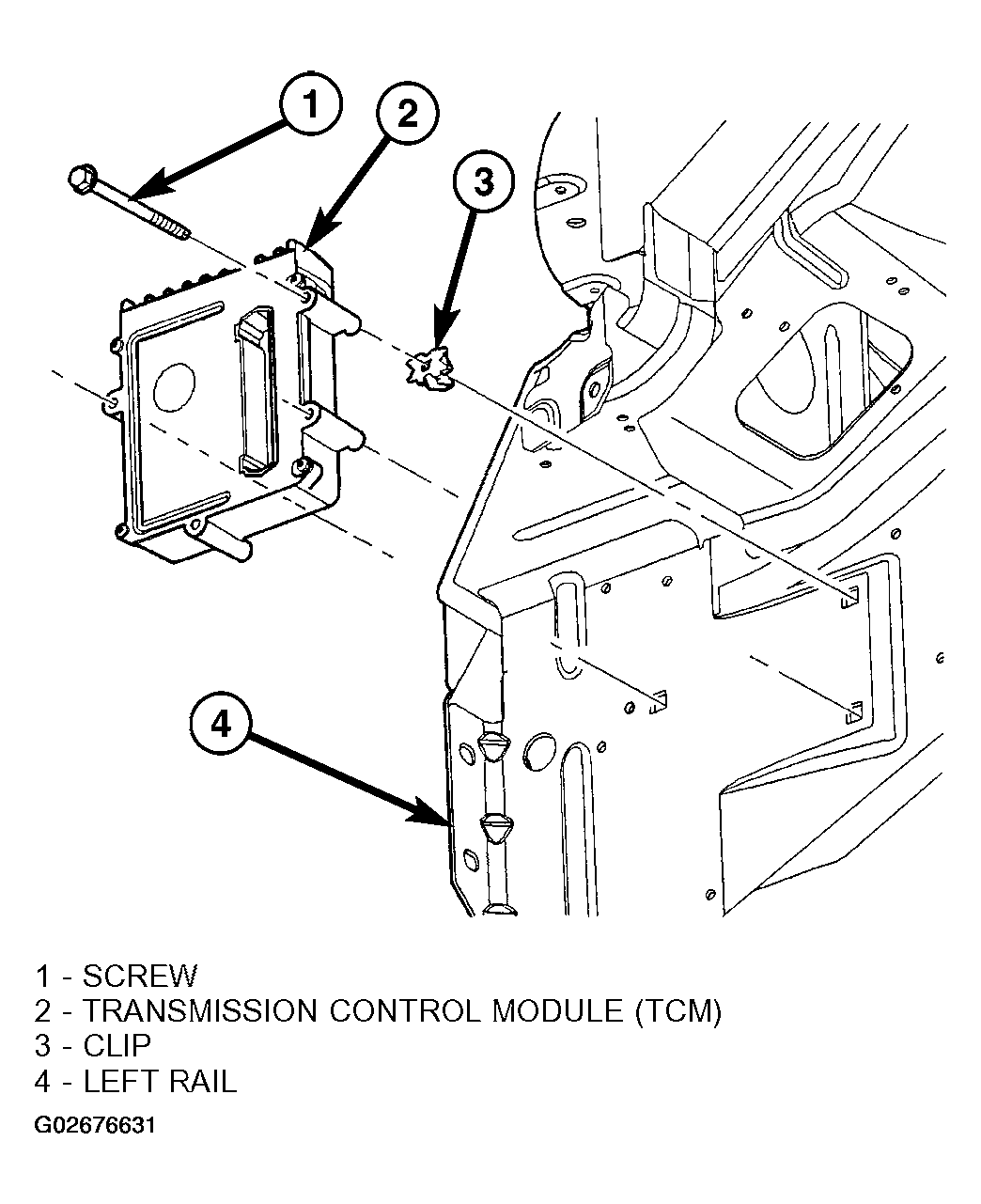

    Fig 2: Removing/Installing Transmission Control Module
    G02676631Courtesy of DAIMLERCHRYSLER CORP.
