Fuel Injector: Description

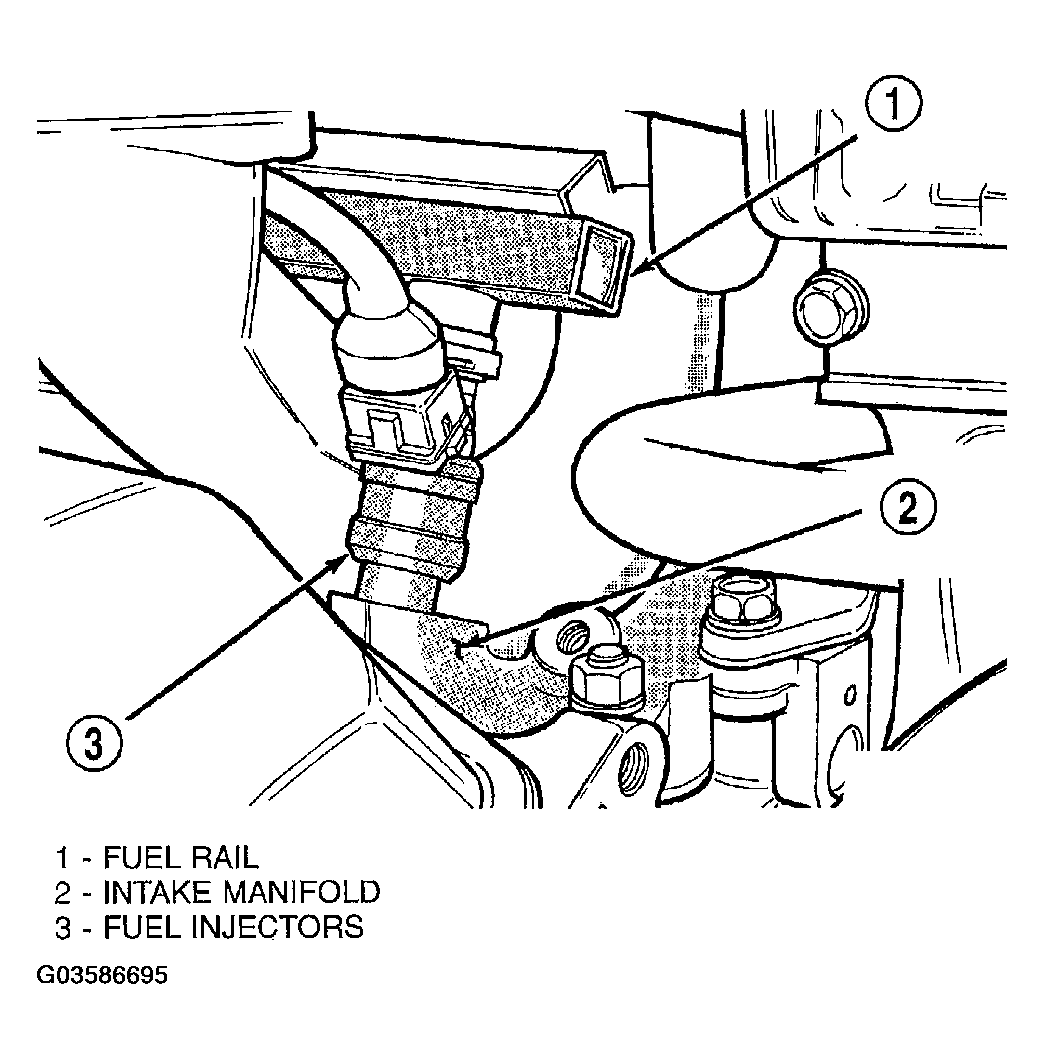

The injectors are positioned in the intake manifold or cylinder head with the nozzle ends directly above the intake valve port (Fig 1).

Fig 1: Identifying Fuel Injector Location

Courtesy of DAIMLERCHRYSLER CORP.
