Diagnostic Procedure

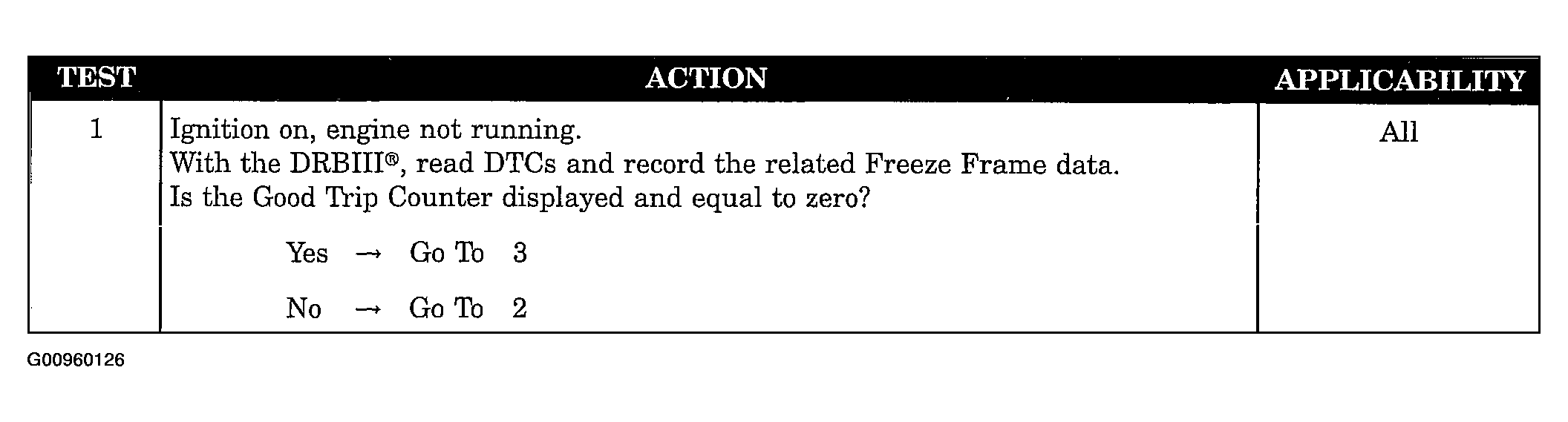

Fig 1: Sensor Heater Circuit High Diagnostic Chart (Step 1)
G00960126Courtesy of DAIMLERCHRYSLER CORP.
Fig 2: Sensor Heater Circuit High Diagnostic Chart (Steps 2-5)
G00960127Courtesy of DAIMLERCHRYSLER CORP.

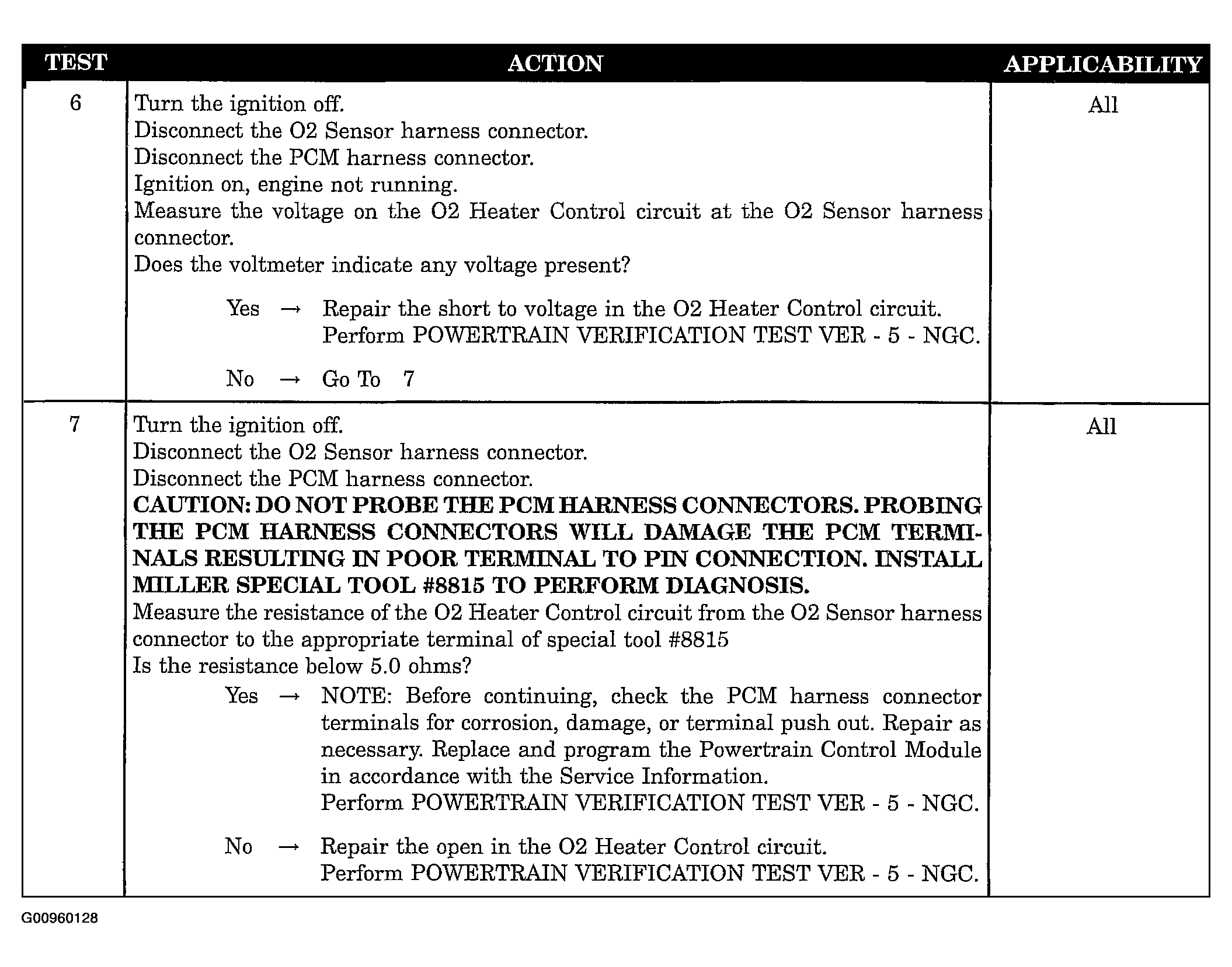

Fig 3: Sensor Heater Circuit High Diagnostic Chart (Steps 6-7)
G00960128Courtesy of DAIMLERCHRYSLER CORP.
