Power Windows: Switch-Window: Installation

The driver and front passenger side power window switch is included in the window/lock switch.  (Refer to SWITCH-WINDOW/DOOR LOCK ).

1. Install the switch to the door trim panel.
2. Install the door trim panel.
3. Connect the battery negative cable.

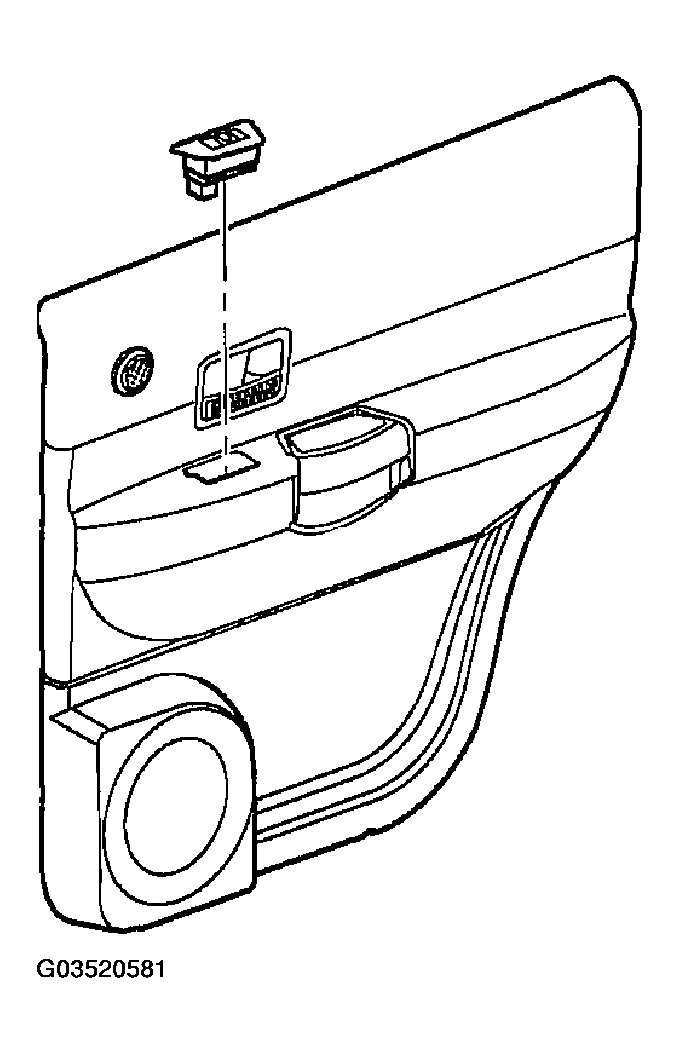

   Fig 1: Installing Switch To Door Trim Panel

   Courtesy of DAIMLERCHRYSLER CORP.
