Dodge and Ram
>>
2004
>>
Durango 3.7 K
>>
Repair and Diagnosis
>>
Engine Performance
>>
Ignition System
>>
Ignition Control
>>
Ignition System - Electrical Diagnostics
>>
B2100-Ignition Run/Start Input Circuit Performance
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

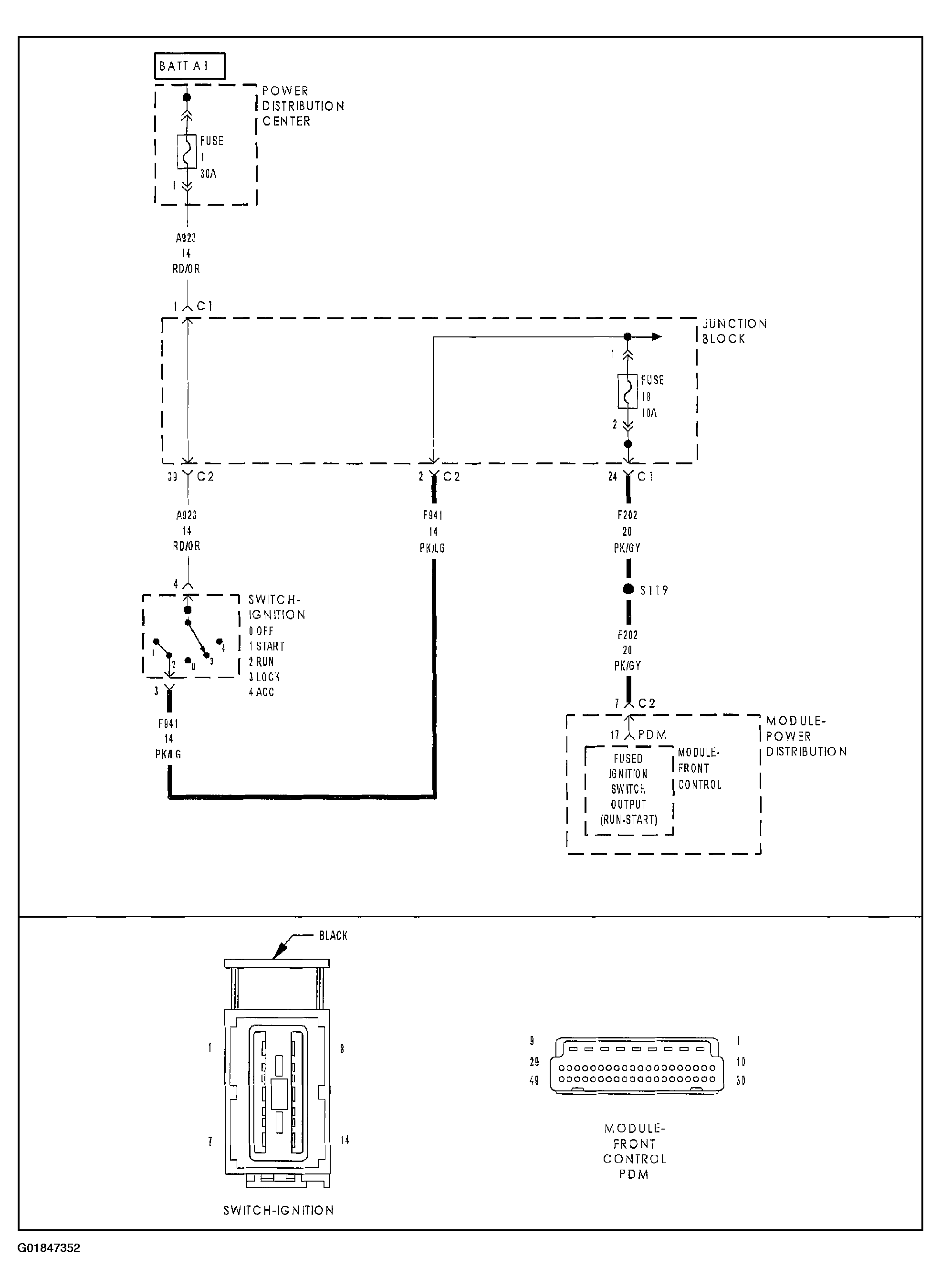

Fig 1: B2100 Schematic Diagram
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
