Ignition Control: Switch-Ignition: Installation

1. Before installing ignition switch (1), rotate the slot in the switch to the ON position.
2. Connect the electrical connector to rear of the ignition switch. Make sure that locking tabs are fully seated into wiring connector.
3. Position switch to column and install the mounting screws (2). Tighten screw to 3 N.m (26 in. lbs.).

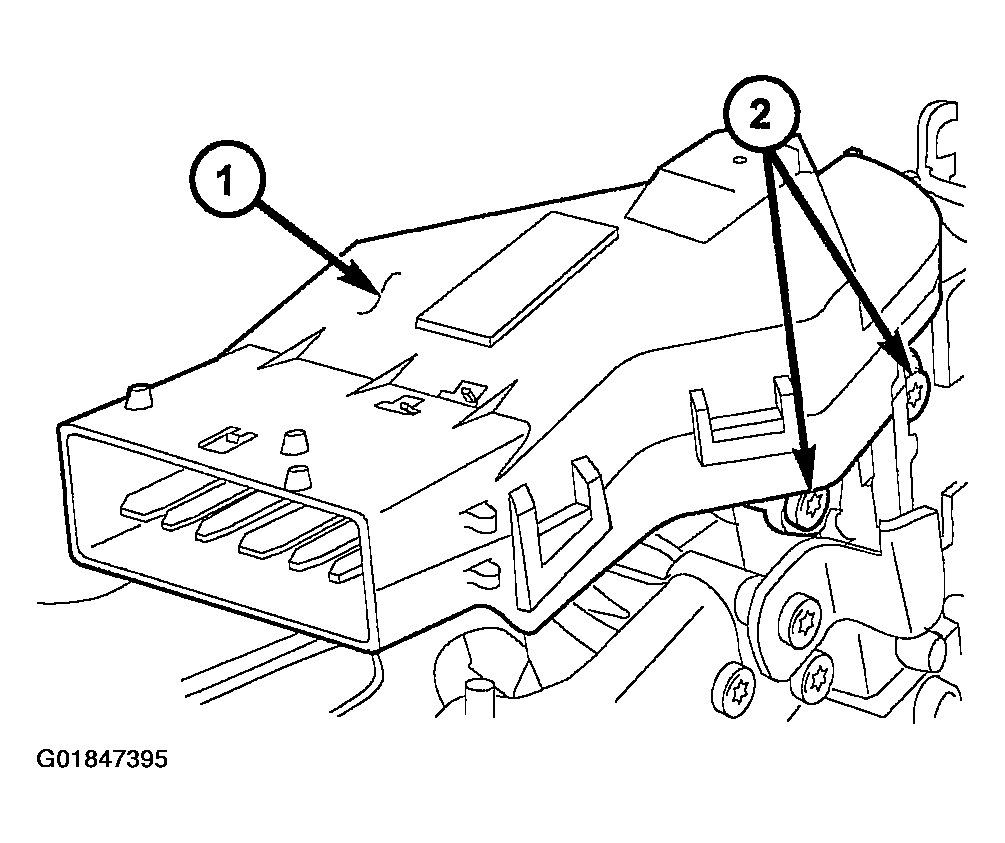

Fig 1: Installing Switch On Steering Column
Courtesy of DAIMLERCHRYSLER CORP.
4. Install the tilt lever bracket (2) mounting screws. Tighten screws to 4.5 N.m (40 in. lbs.).

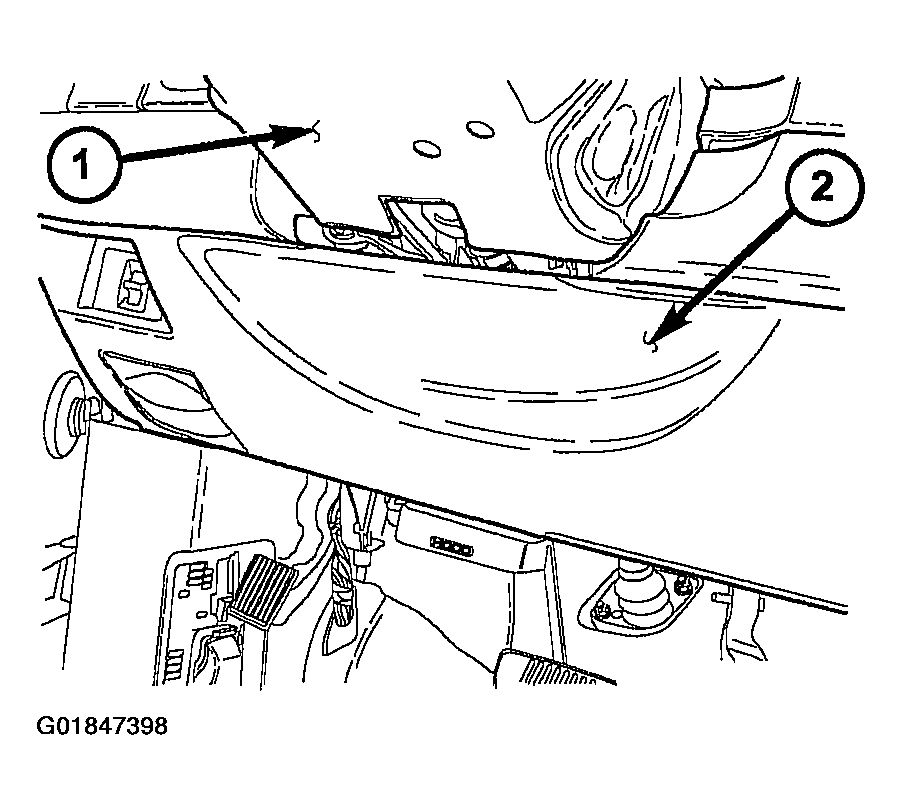

Fig 2: Installing The Tilt Lever Bracket Mounting Screws
Courtesy of DAIMLERCHRYSLER CORP.
5. Position the wire retainer into the tilt lever bracket.
6. Reconnect the lower clockspring connectors.
7. Install the steering column opening reinforcement (1).

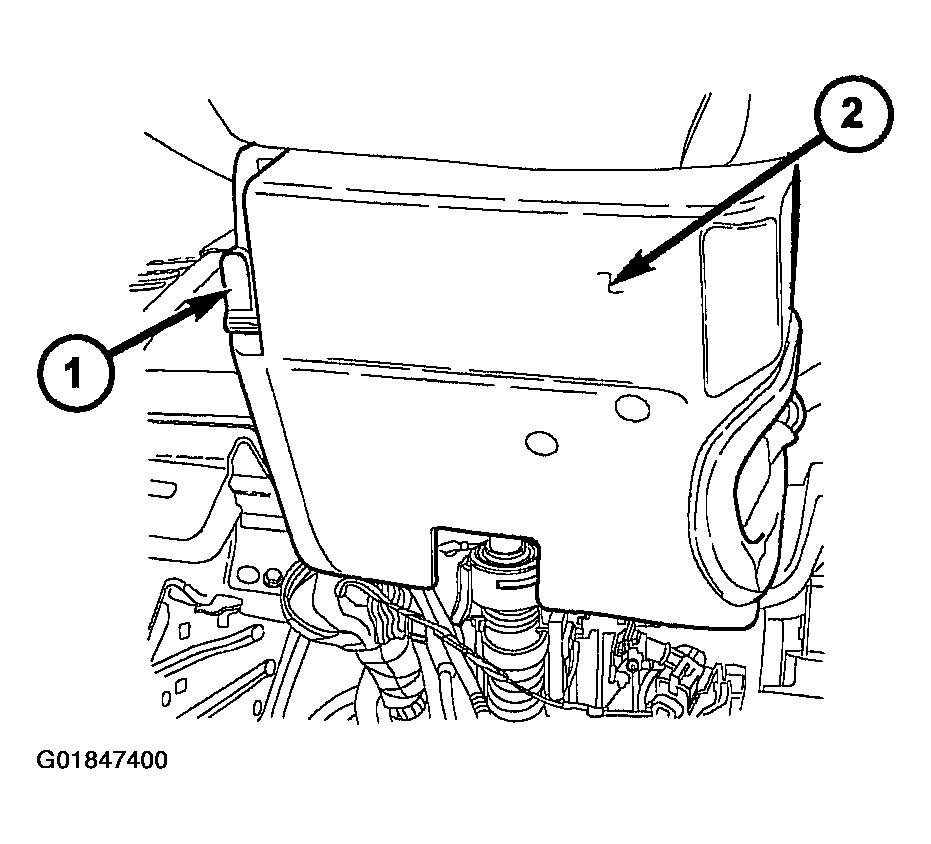

Fig 3: Installing Steering Column Opening Reinforcement
Courtesy of DAIMLERCHRYSLER CORP.
8. Install the steering column opening cover (2).

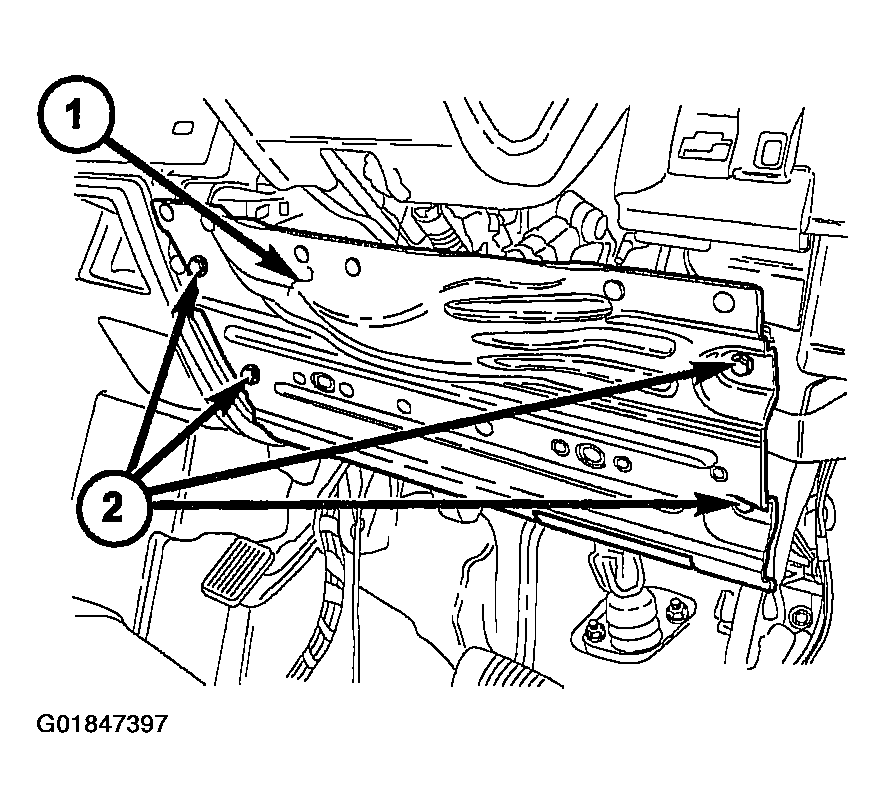

Fig 4: Installing Steering Column Opening Cover
Courtesy of DAIMLERCHRYSLER CORP.
9. Install the key cylinder (1) with the key (2) in the cylinder (1).

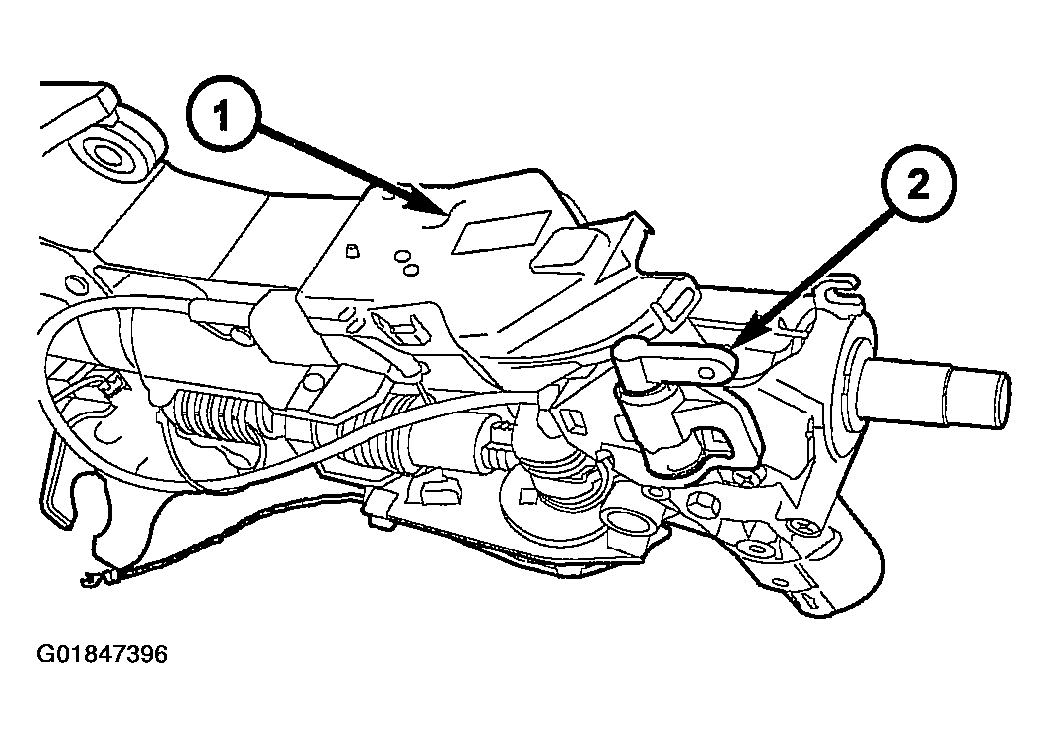

Fig 5: Installing Key Cylinder
Courtesy of DAIMLERCHRYSLER CORP.
10. Install steering column upper and lower shrouds (2).
11. Install the tilt lever knob (1).
12. Enable the airbag system. (Refer to AIR BAG RESTRAINT SYSTEMS ).

Fig 6: Installing Tilt Lever Knob

Courtesy of DAIMLERCHRYSLER CORP.
