*Engine Cranks But Does Not Start: Notes

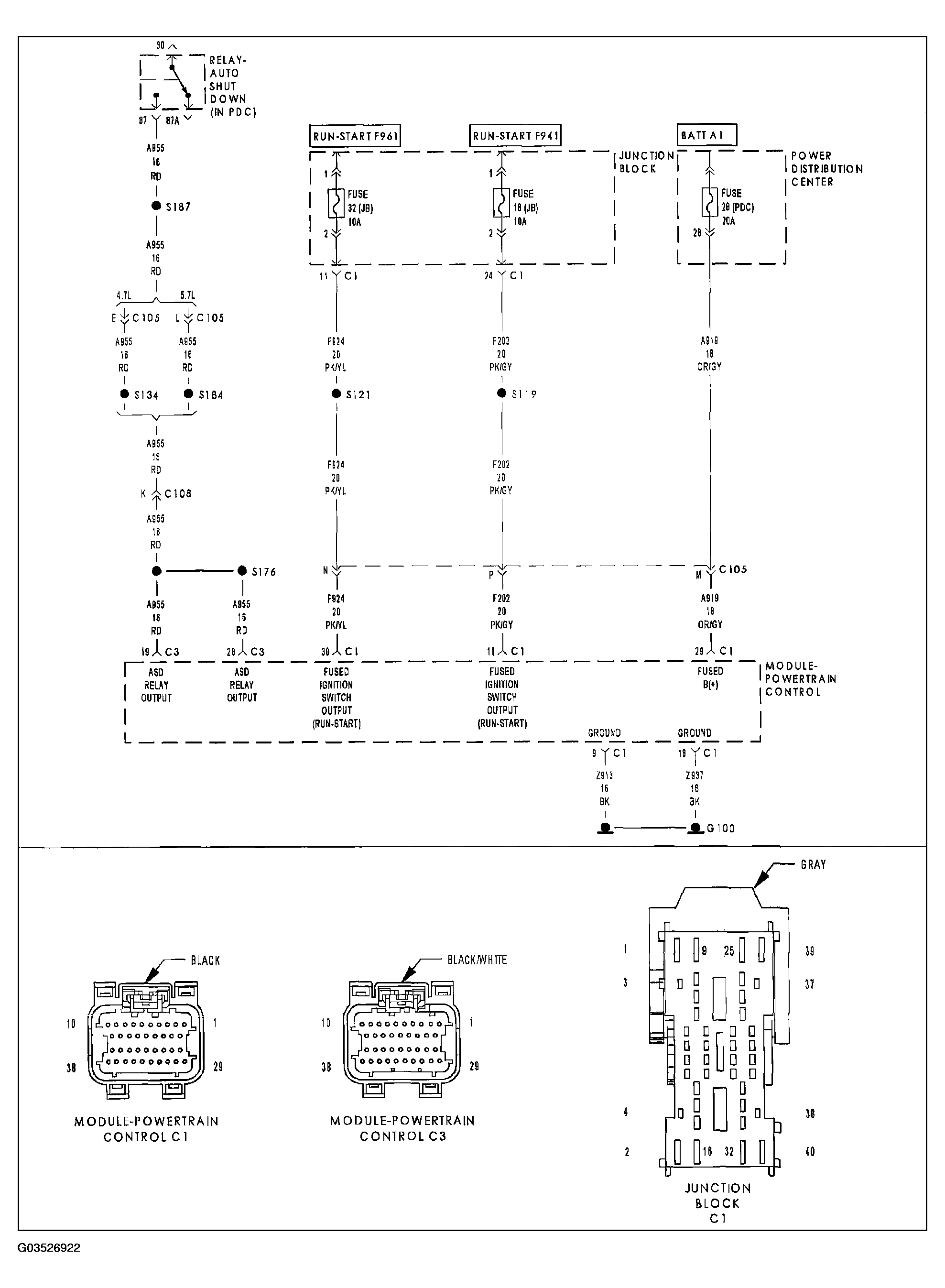

Fig 1: Engine Cranks But Does Not Start Diagram

Courtesy of DAIMLERCHRYSLER CORP.

For the Engine circuit diagram (Refer to SCHEMATICS AND DIAGRAMS ).

For a complete wiring diagram, Refer to  SYSTEM WIRING DIAGRAMS  .

Possible Causes

1. NO START PRE-TEST
2. POWERTRAIN FUSES OPEN
3. SECONDARY INDICATORS PRESENT
4. ENGINE MECHANICAL PROBLEM
5. (K432), (A955) ASD RELAY OUTPUT CIRCUIT OPEN
6. FUEL CONTAMINATION
