Powertrain Control Module C1 Connector End View

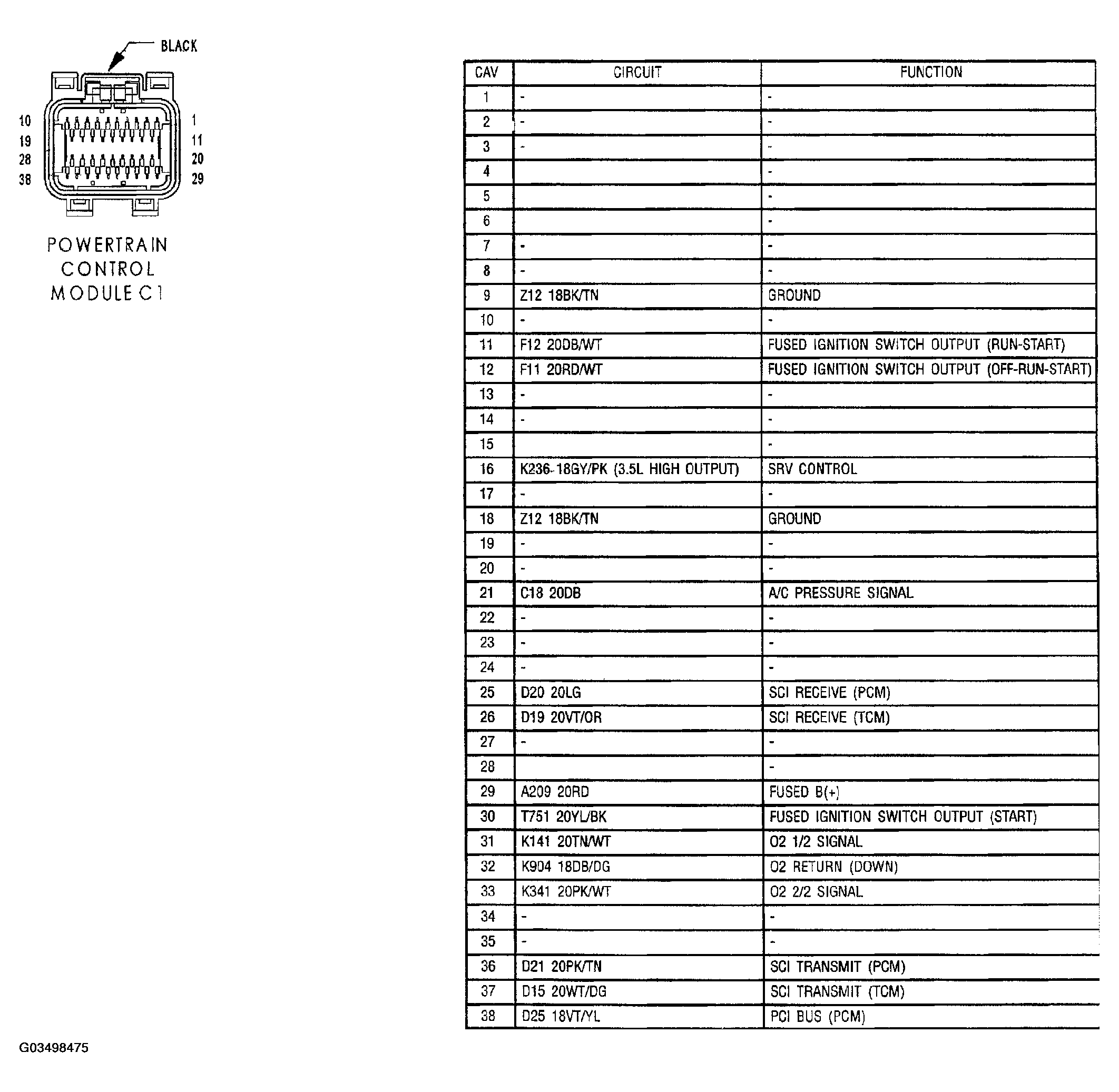

Fig 1: Powertrain Control Module Connector End View (C1)
G03498475Courtesy of DAIMLERCHRYSLER CORP.
