C112 (Export) - (Headlamp Module Side) Connector End View

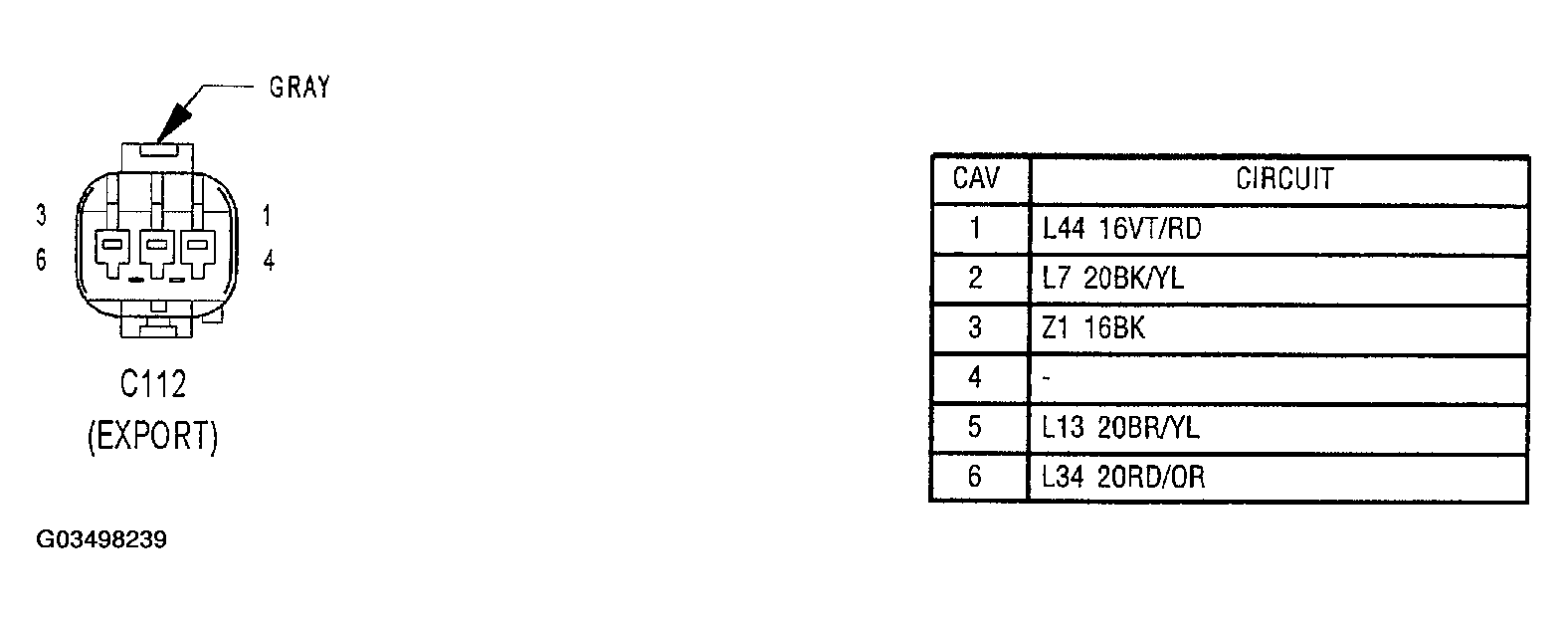

Fig 1: Headlamp Module Side (Export) Inline Connector End View (C112)
G03498239Courtesy of DAIMLERCHRYSLER CORP.
