Manifold Absolute Pressure Sensor Connector End View

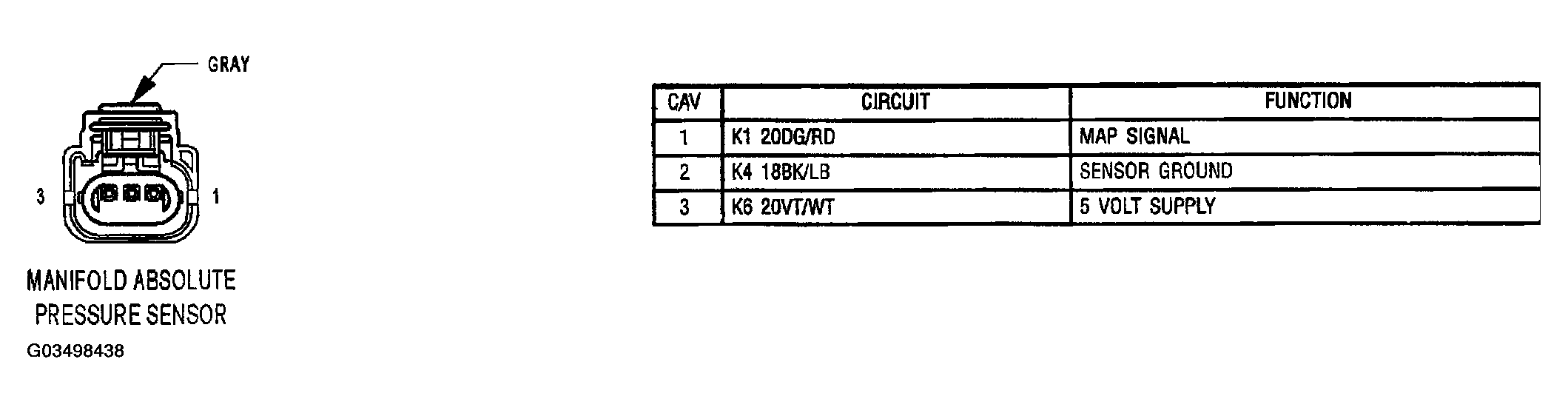

Fig 1: Manifold Absolute Pressure Sensor Connector End View
G03498438Courtesy of DAIMLERCHRYSLER CORP.
