Right Side Impact Airbag Control Module Connector End View

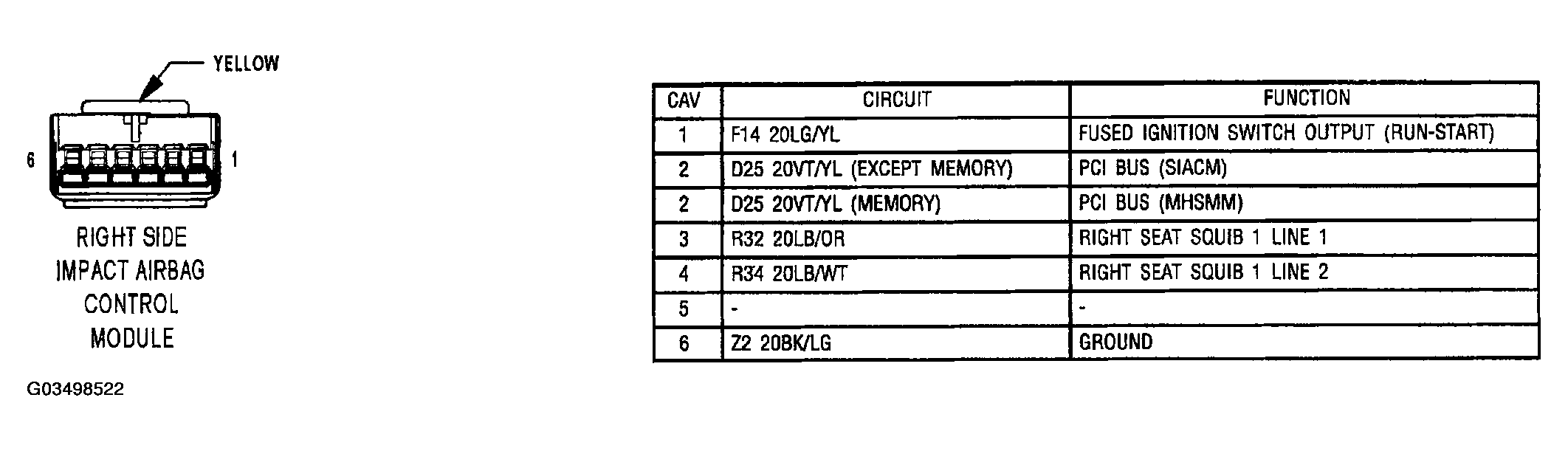

Fig 1: Right Side Impact Airbag Control Module Connector End View
G03498522Courtesy of DAIMLERCHRYSLER CORP.
