Driver Power Mirror (Memory) Connector End View

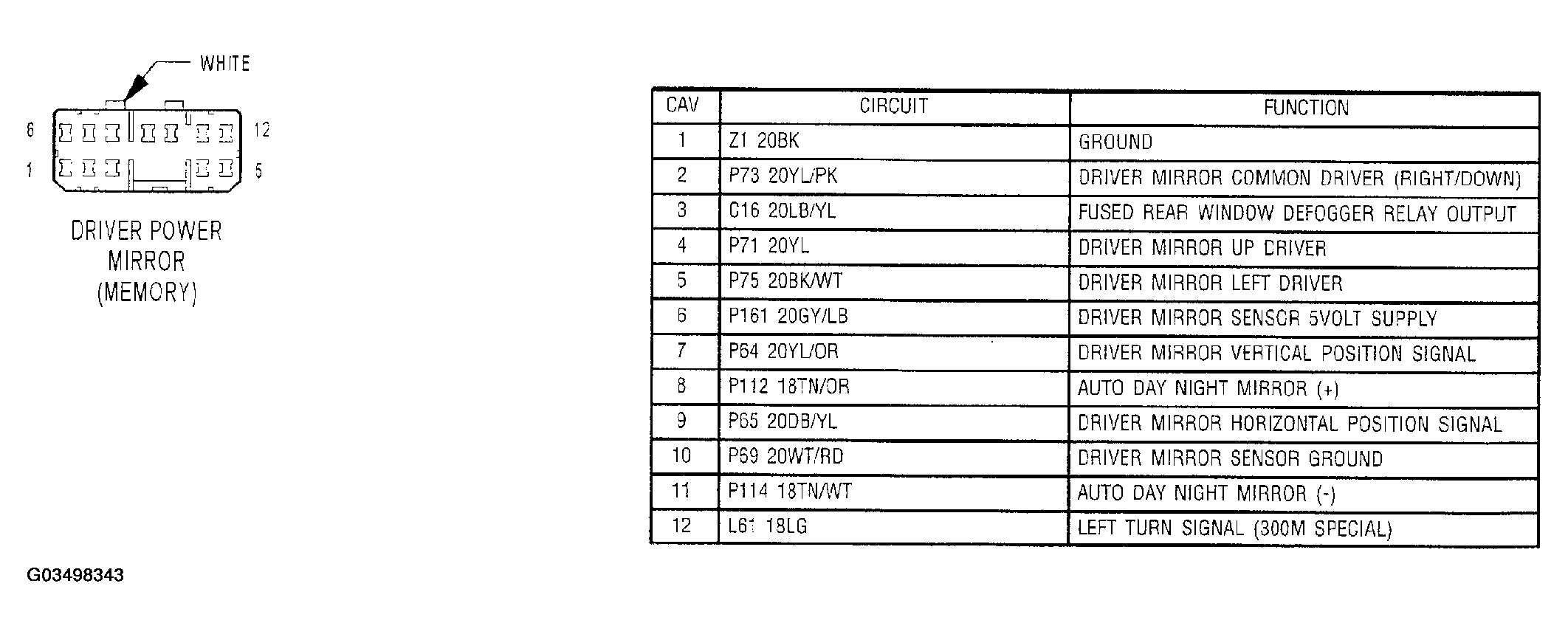

Fig 1: Driver Power Memory Mirror Connector End View
G03498343Courtesy of DAIMLERCHRYSLER CORP.
