Shift Schedules
WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
The PCM has programming that allows it to select a variety of shift schedules. Shift schedules. shift schedule selection is dependent on the following:
- Shift lever position
- Throttle position
- Engine load
- Fluid temperature
- Software level

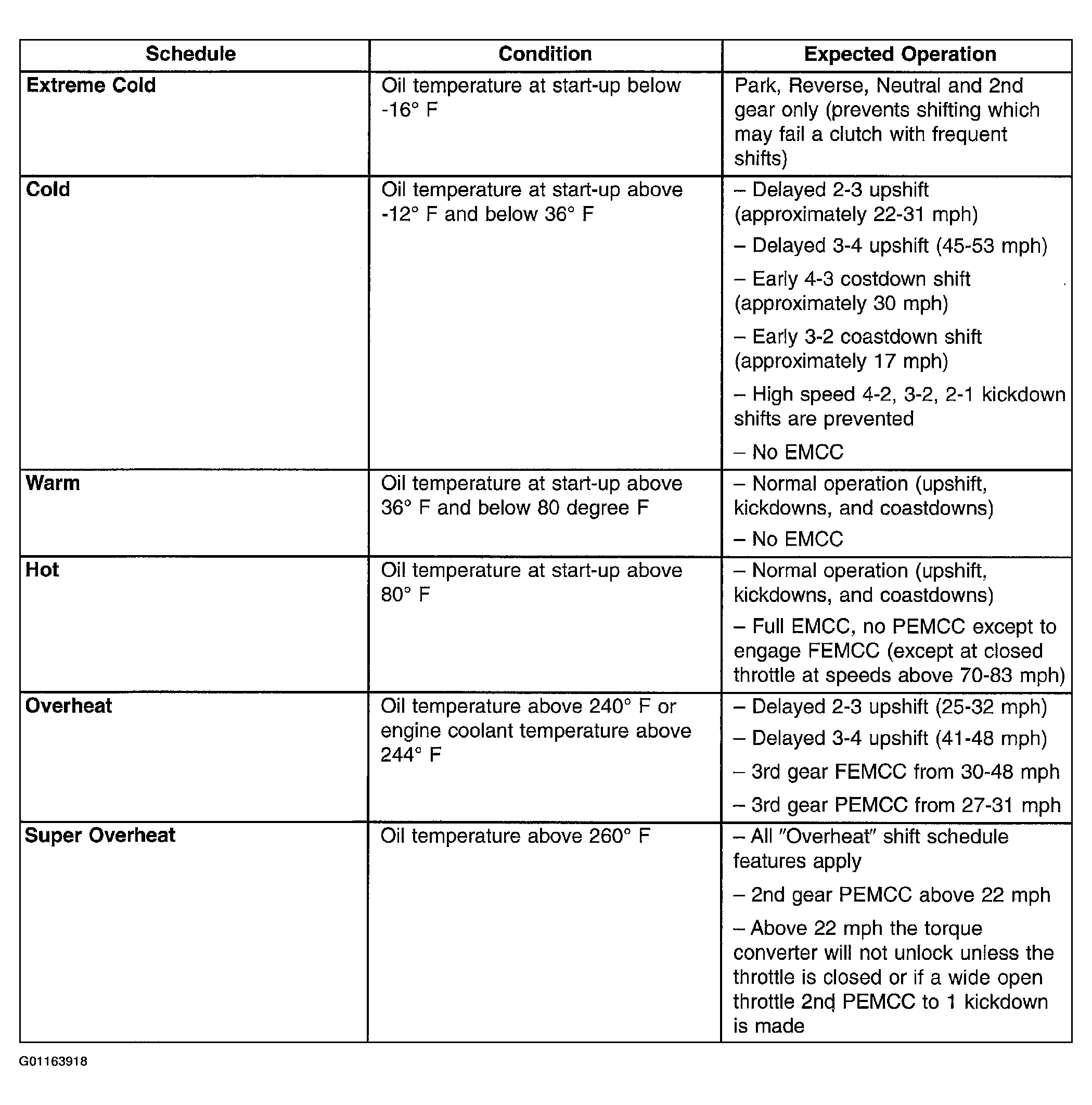

As driving conditions change, the PCM appropriately adjusts the shift schedule. Refer to the following chart (Fig 1 ) to determine the appropriate operation expected, depending on driving conditions.
