Courtesy Lamps On At All Times

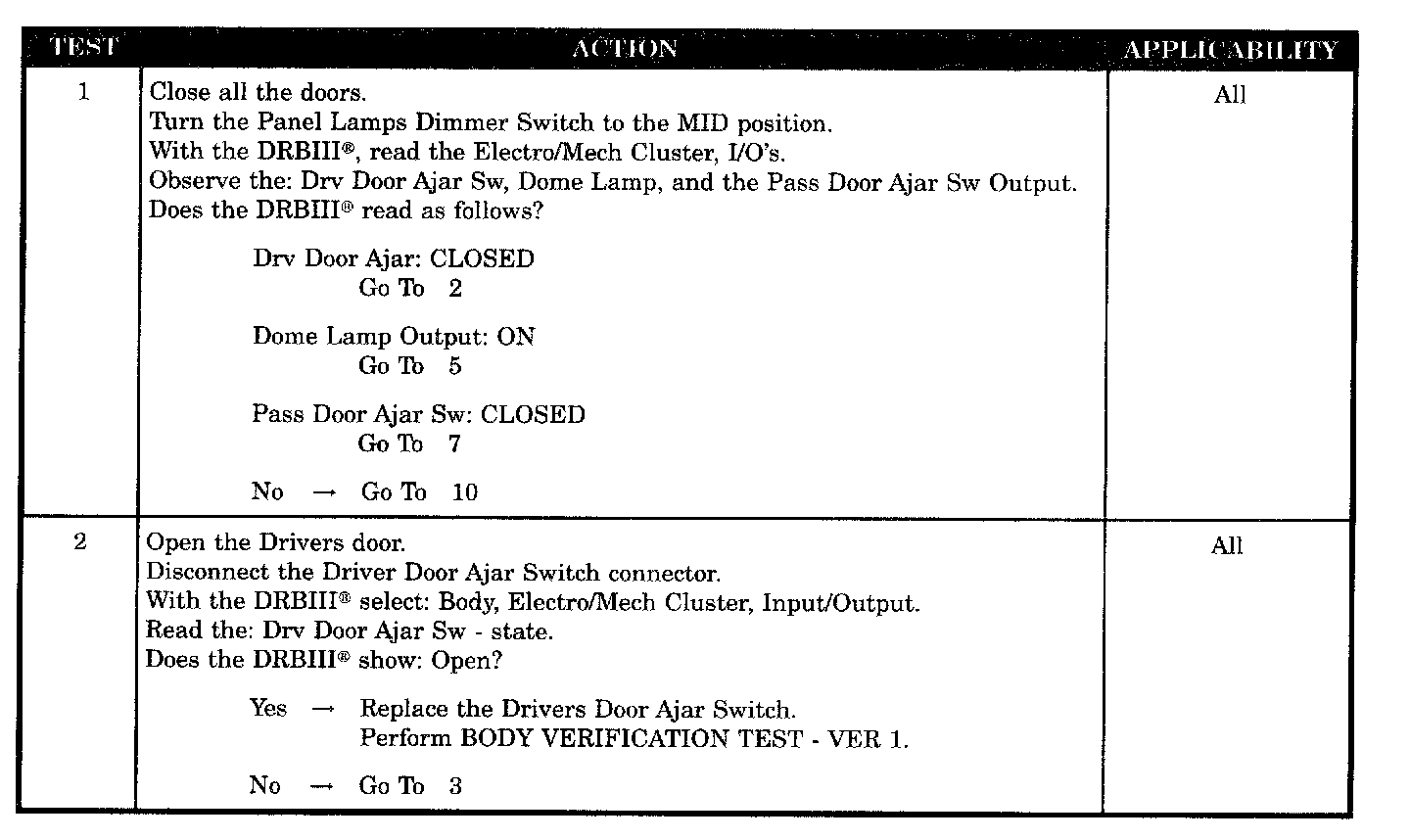

Test 1 - 2:

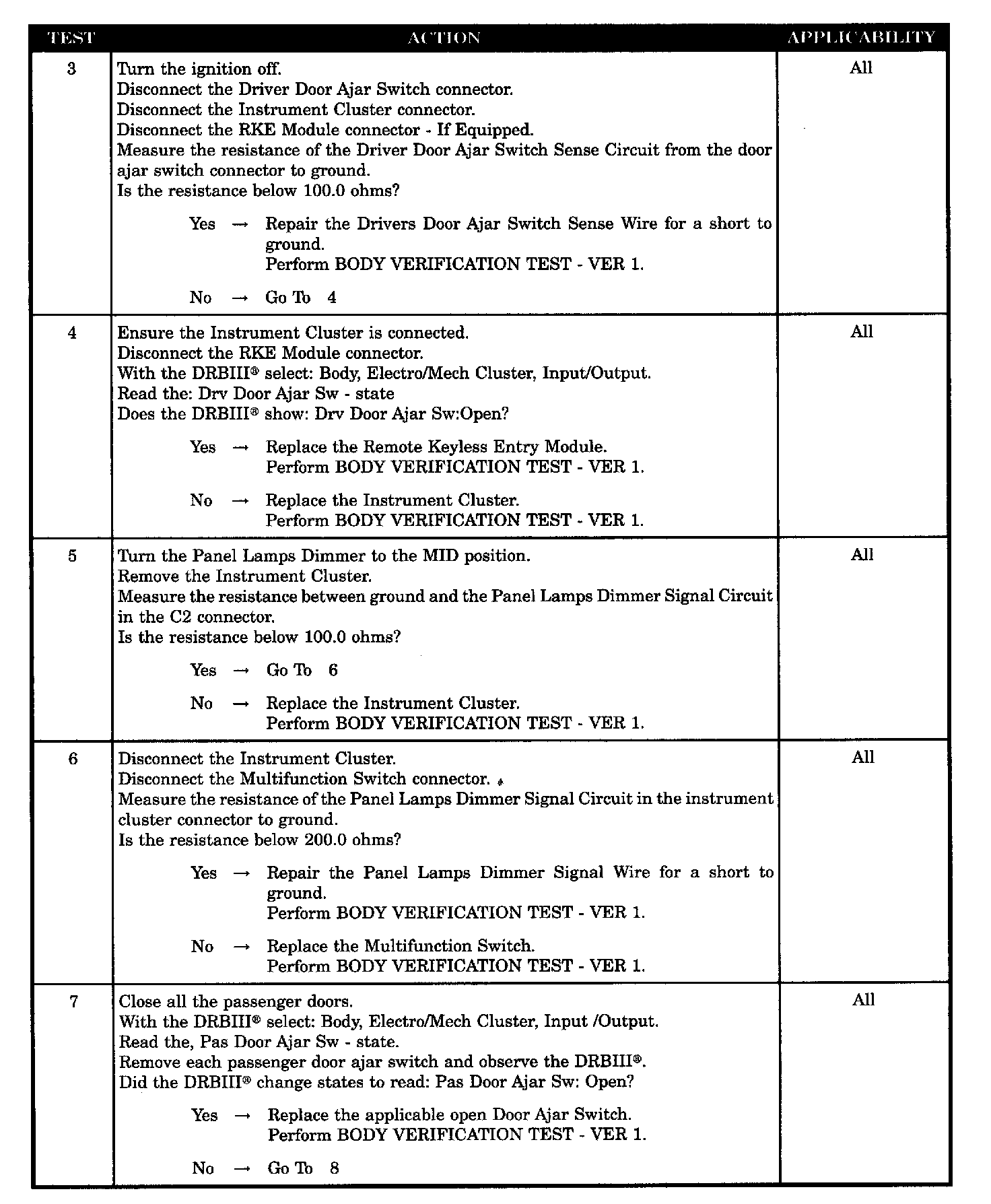

Test 3 - 7:

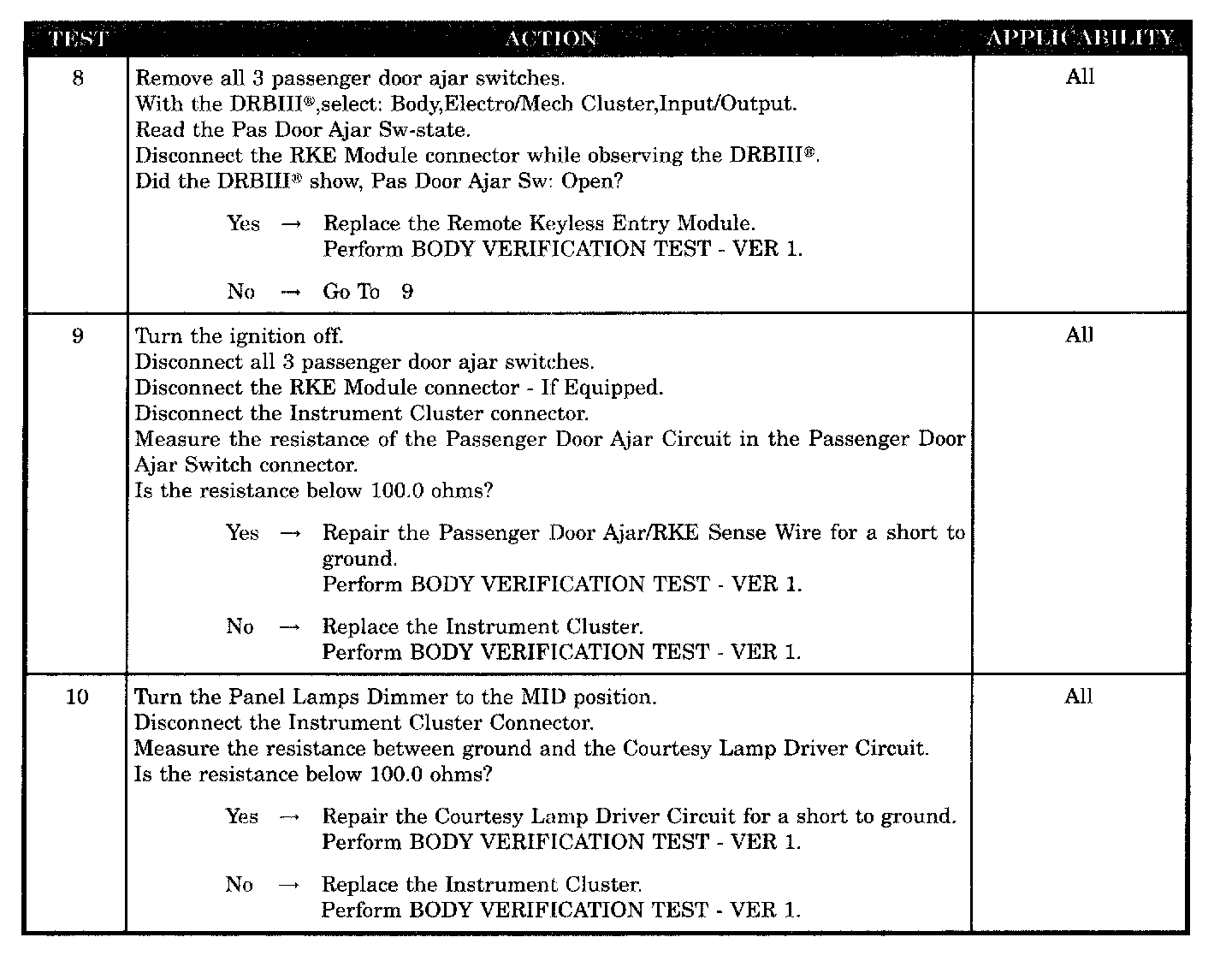

Test 8 - 10:

SYMPTOM
COURTESY LAMPS ON AT ALL TIMES

POSSIBLE CAUSES
- Drivers door ajar switch
- Drivers door ajar switch sense wire short to ground
- Remote keyless entry module - if equipped
- Instrument cluster
- Instrument cluster
- Panel lamps dimmer signal wire short to ground
- Multifunction switch
- Open door ajar switch
- Remote keyless entry module - if equipped
- Passenger door ajar/RKE sense wire short to ground
- Instrument cluster
- Courtesy lamp driver circuit short to ground
- Instrument cluster
