VTSS Siren Inoperative (Export Only)

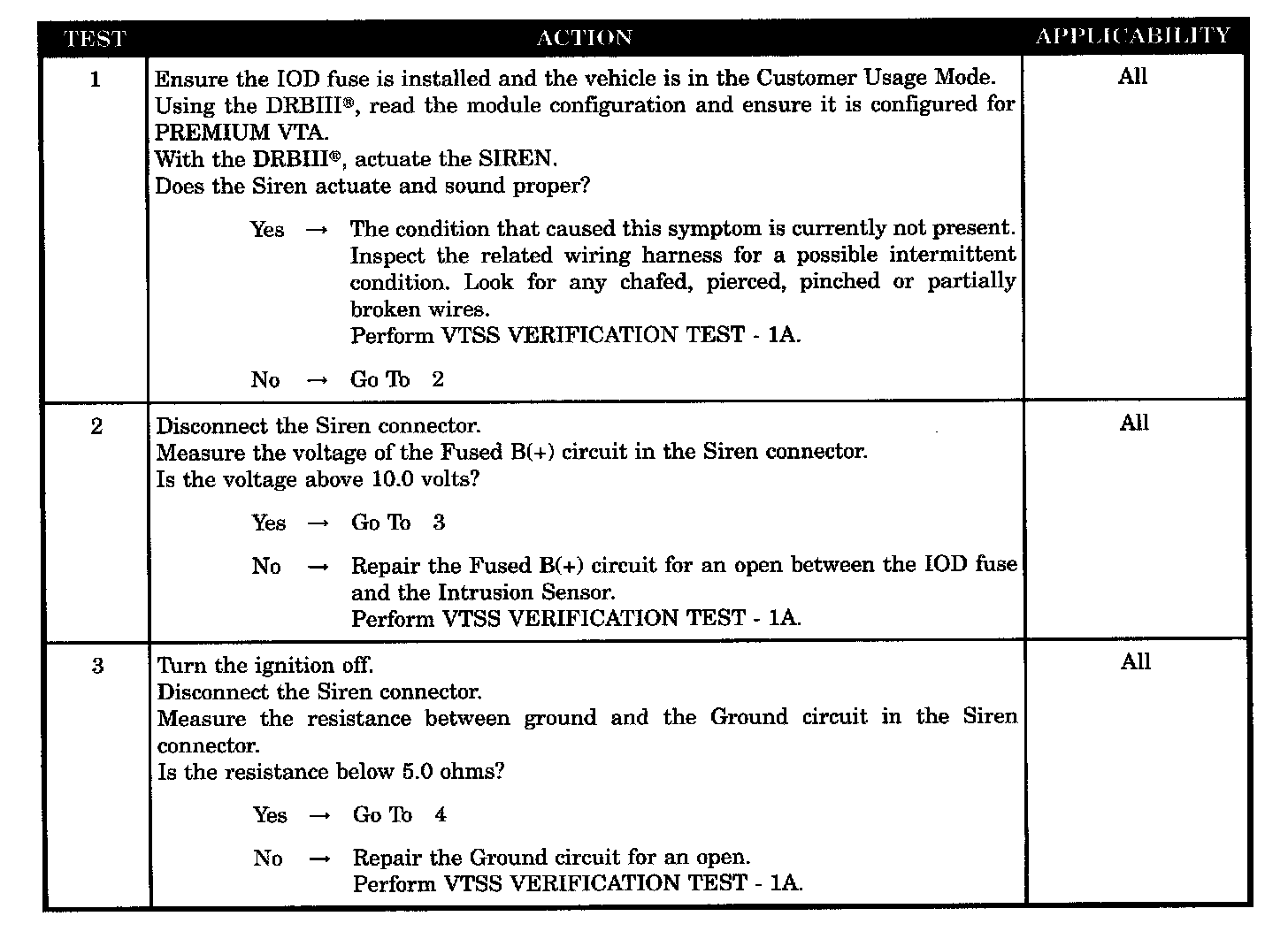

Test 1 - 3:

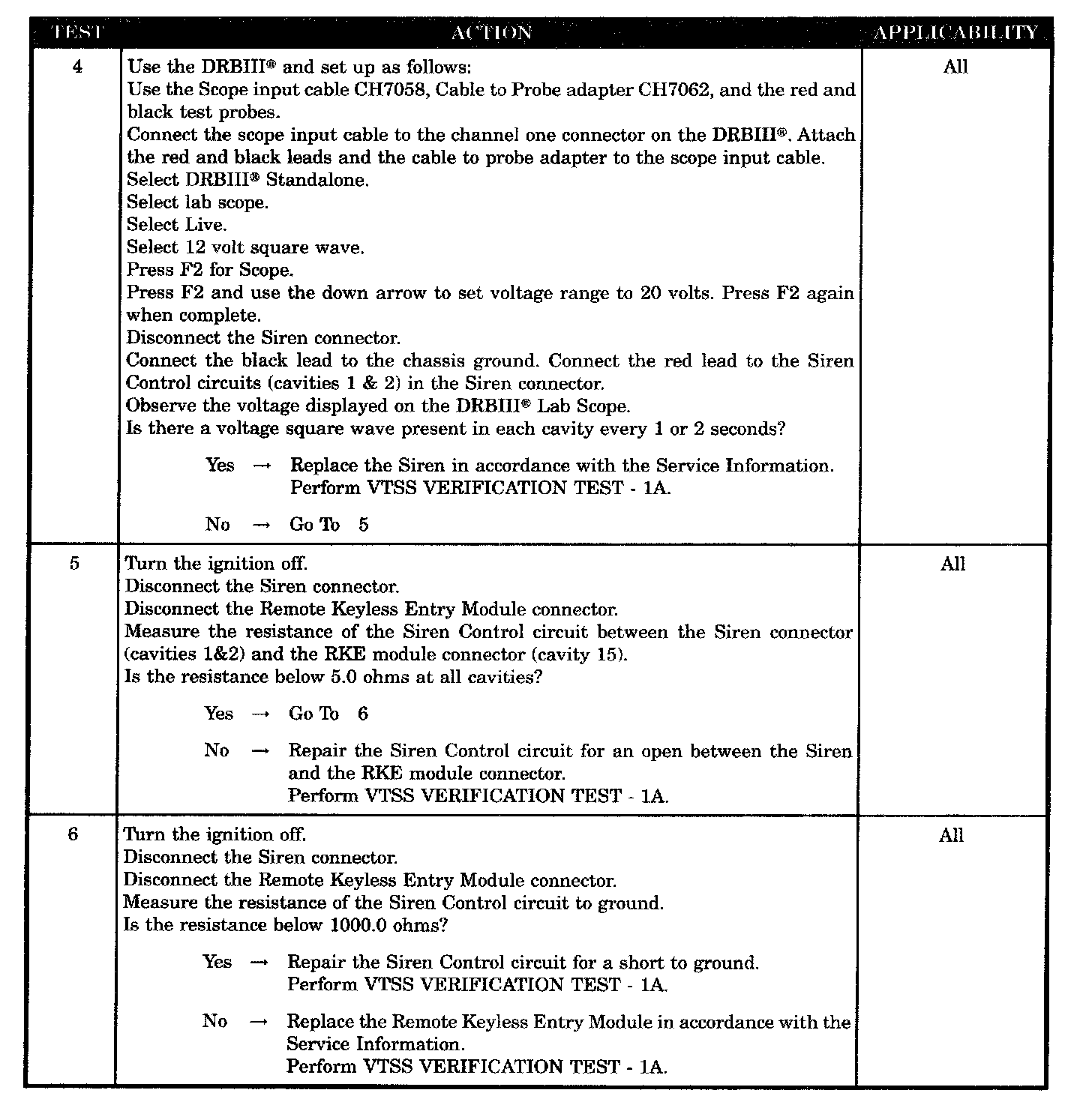

Test 4 - 6:






SYMPTOM
VTSS SIREN INOPERATIVE (EXPORT ONLY)

POSSIBLE CAUSES
- Siren functional test
- Open fused B(+) circuit
- Open ground circuit
- Faulty siren
- Siren control circuit open
- Siren control circuit shorted to ground
- Remote keyless entry module
