Removal - 1.6L

  1. Disconnect the negative battery cable.
  2. Remove the air cleaner box.
  3. Disconnect the Powertrain Control Module connector (Fig 1).

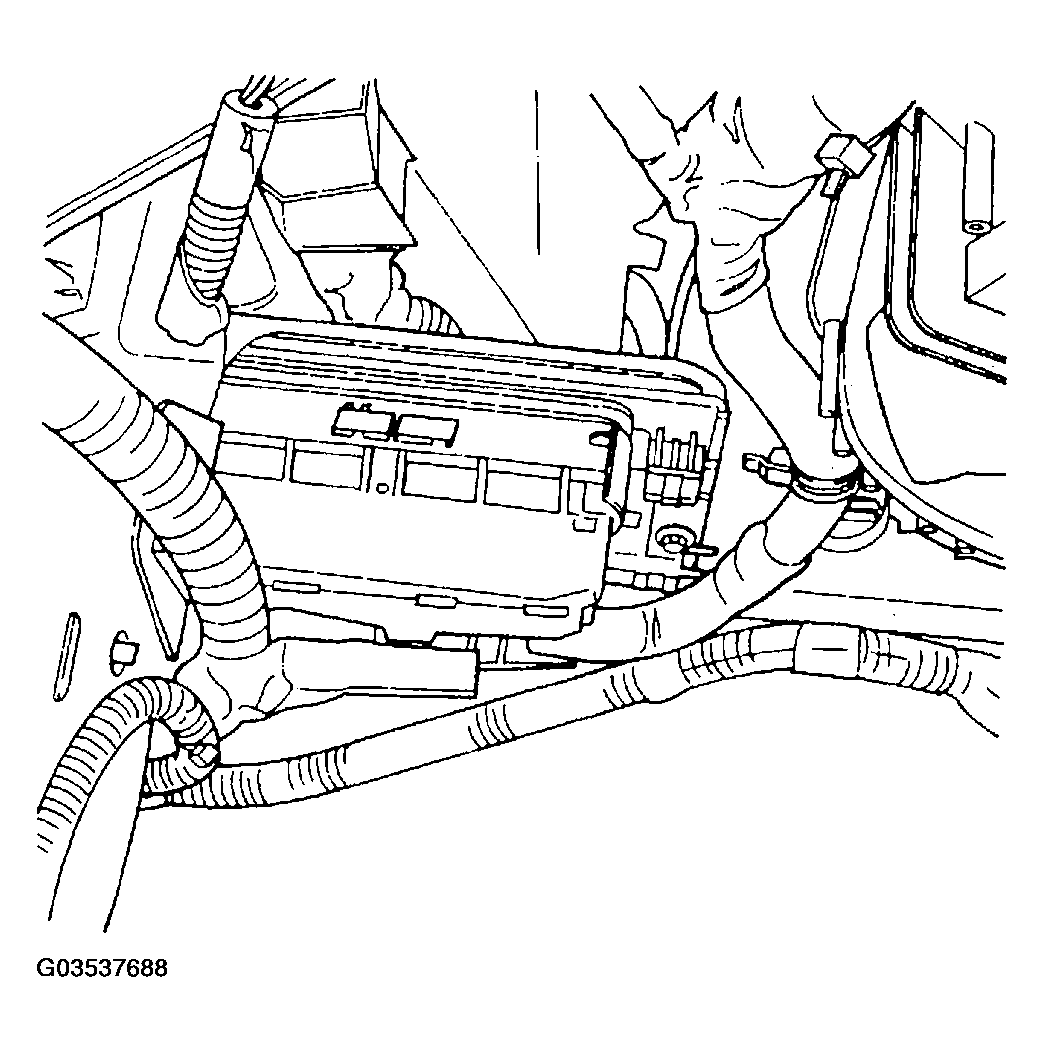

    Fig 1: Locating PCM (1.6L)
    G03537688Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove the 4 bolts (Fig 2).

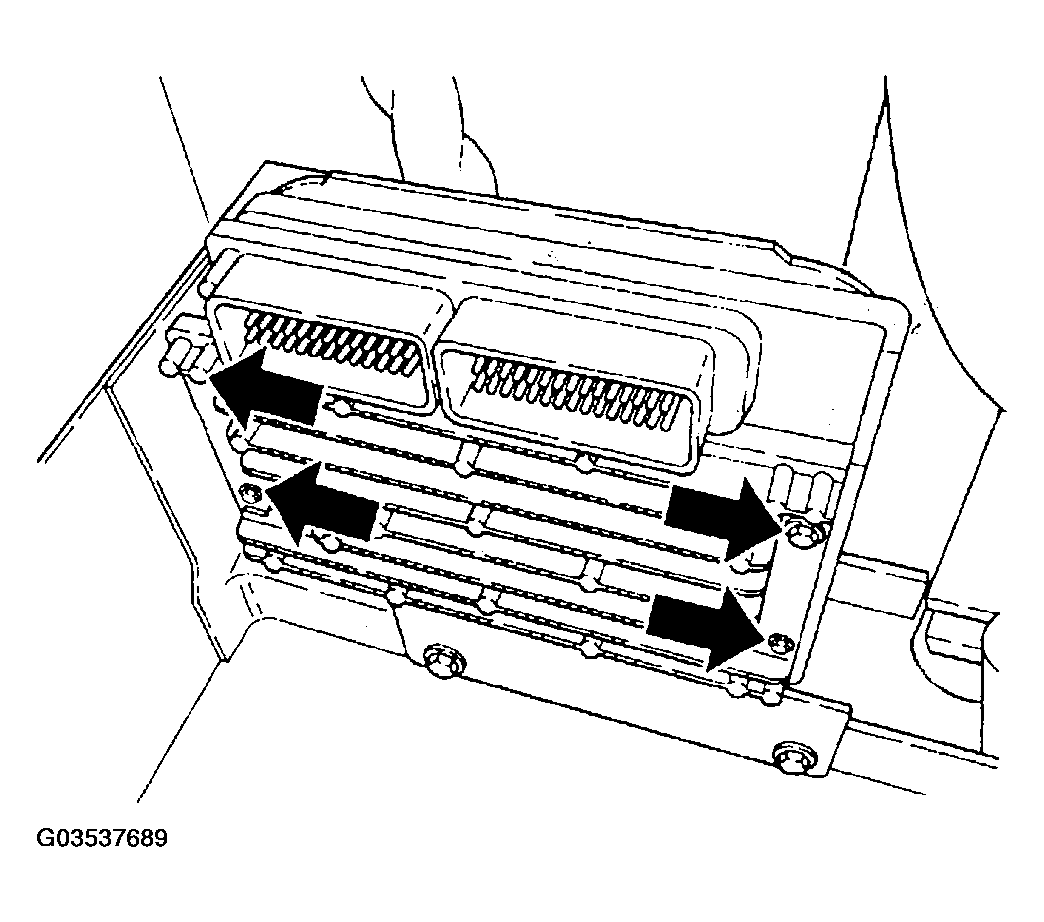

    Fig 2: Identifying PCM Bolts (1.6L)
    G03537689Courtesy of DAIMLERCHRYSLER CORP.
  5. Remove the PCM from bracket.
