Powertrain Control Module Connector End View

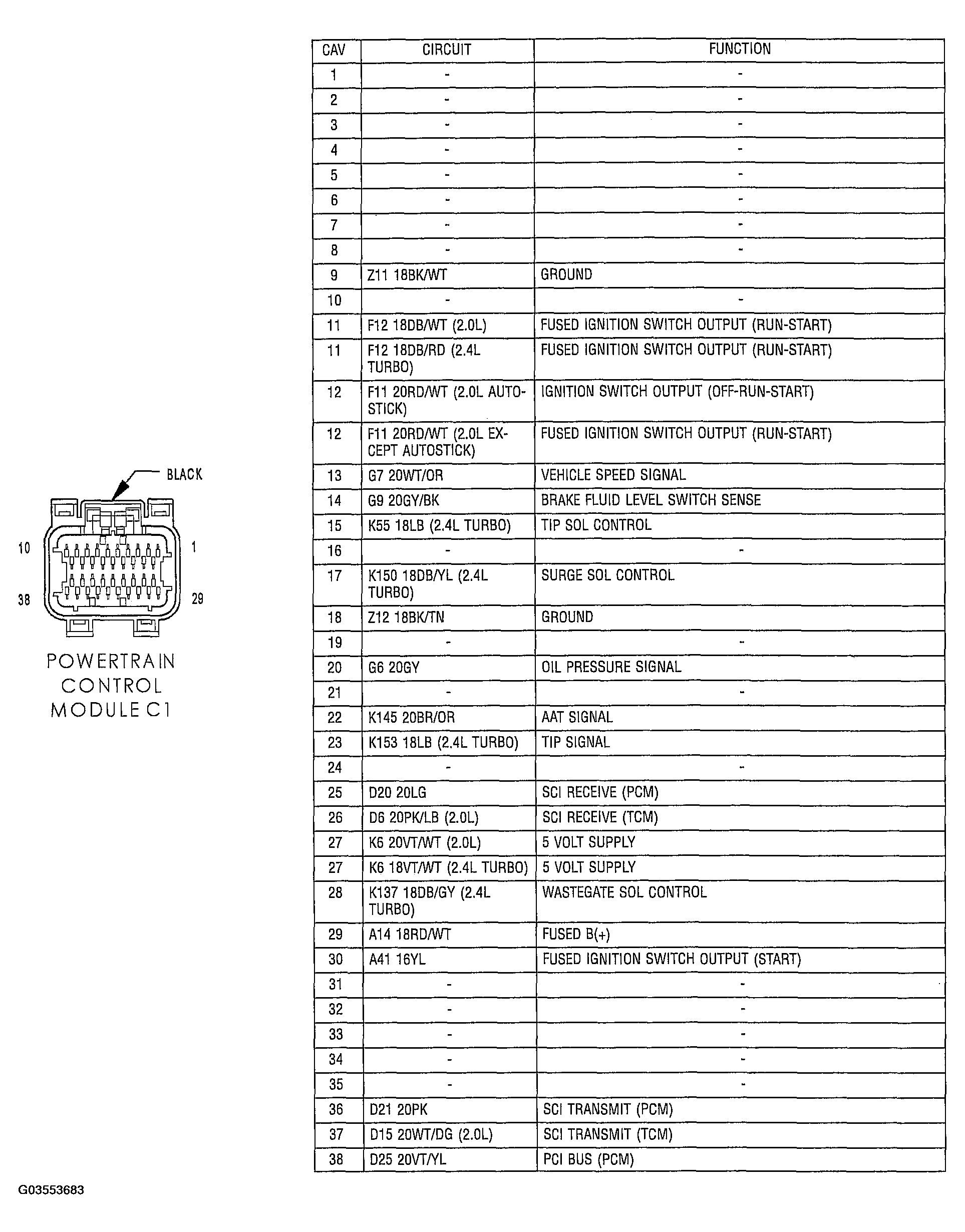

Fig 1: Identifying Powertrain Control Module C1 Connector Terminals And Specifications (Black 38-Way)
G03553683Courtesy of DAIMLERCHRYSLER CORP.
