Remote Keyless Entry Module Connector End View

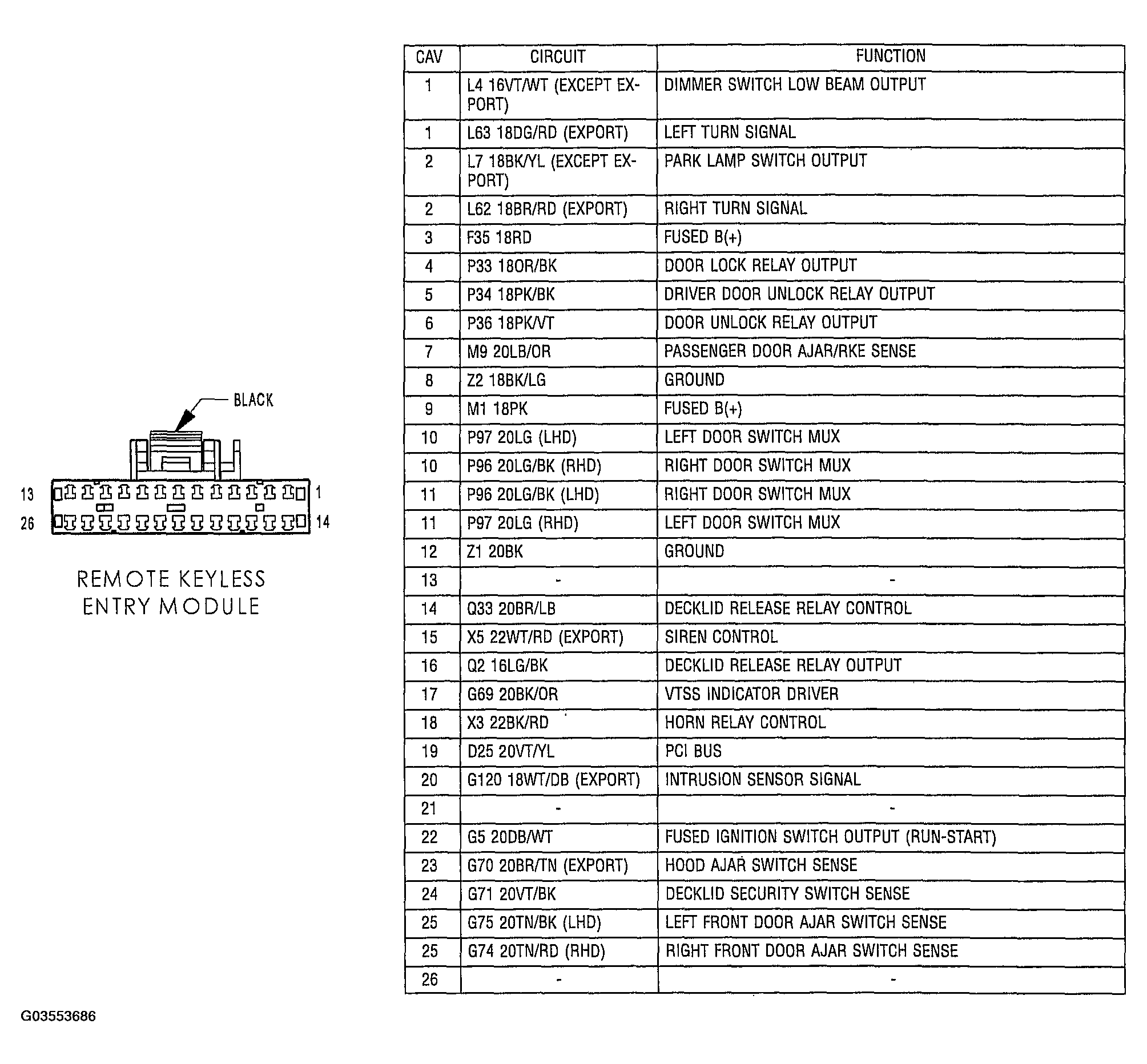

Fig 1: Identifying Remote Keyless Entry Module Connector Terminals And Specifications (Black 26-Way)
G03553686Courtesy of DAIMLERCHRYSLER CORP.
