Calibration/Zone Mode

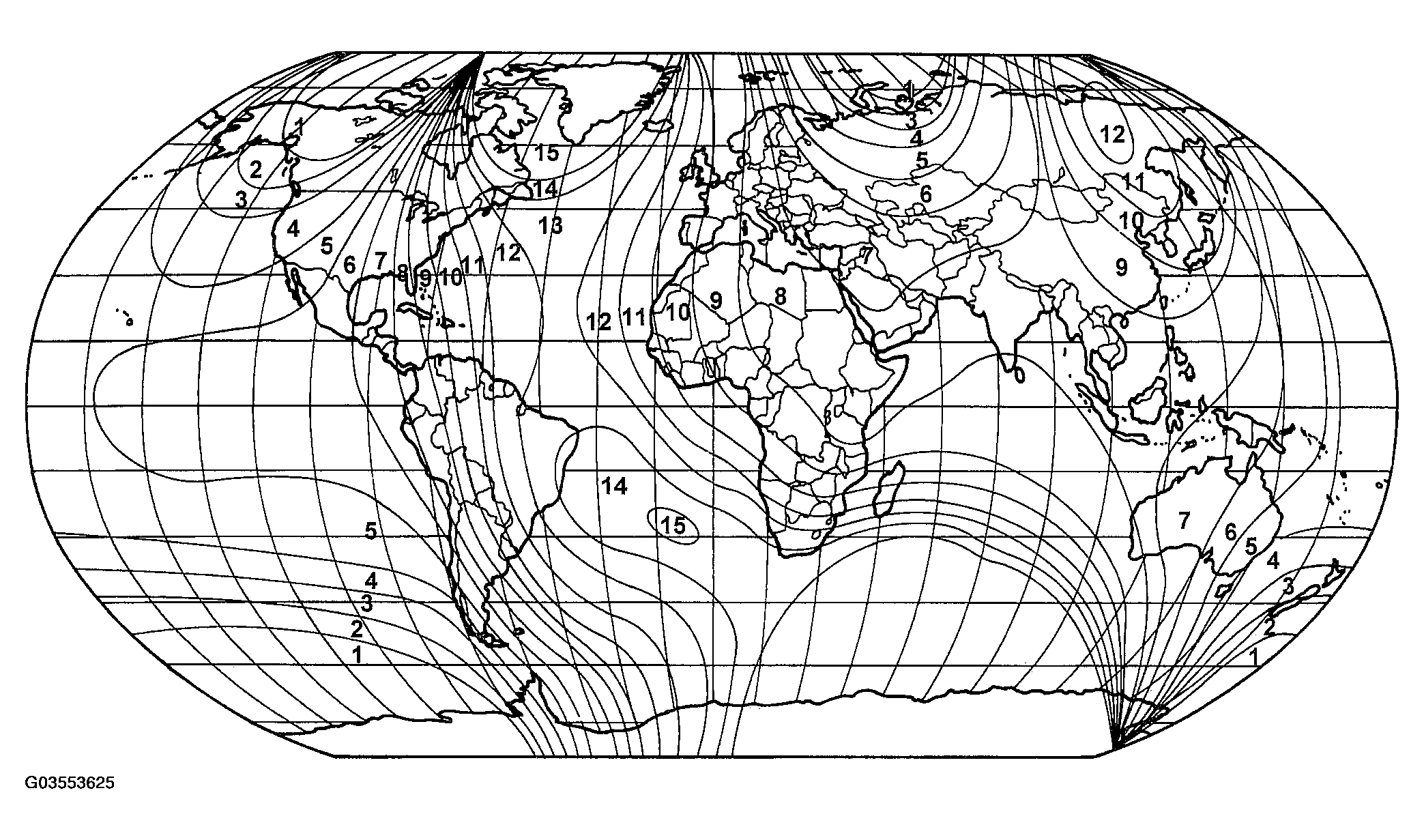

Refer to the Fig 1. With the ignition in the ON position, pressing and holding the Zone/Cal button (left reading lamp button) for 5-10 seconds will illuminate ZONE in the display. Releasing the button while ZONE is illuminated will enter the compass into the Zone Setting mode. The Compass/Temp Mirror will illuminate the Zone Variance number 1 to 15 that is stored in memory. While ZONE is displayed; momentarily pressing the Zone/Cal button advances the zone to the next higher zone. When the desired zone number is displayed, do not press the Zone/Cal button again. After 5 seconds, the Zone Variance number will be stored in the module memory.
With the ignition in the ON position, pressing and holding the Zone/Cal button for 10-15 seconds will toggle the CAL (calibration) mode between on and off. Releasing the button while CAL is displayed enters the compass into the calibration mode. See "FIRST TIME CALIBRATION ", "MANUAL CALIBRATION ", and "CONTINUOUS CALIBRATION ".
Pressing and holding the Zone/Cal button for 15-20 seconds and then releasing will exit the CAL mode and toggle the display to the current state of compass/temperature mirror use; OFF, Compass/Temperature °F, or Compass/Temperature °C.
Pressing and holding the Zone/Cal button for 20-25 seconds will enter the CTM into the self-check diagnostic mode upon releasing the button.
Holding the Zone/Cal button for longer than 25 seconds will cause the display to return to its current state with no changes.
