Powertrain Control Module (2.0L) Connector End View (C2)

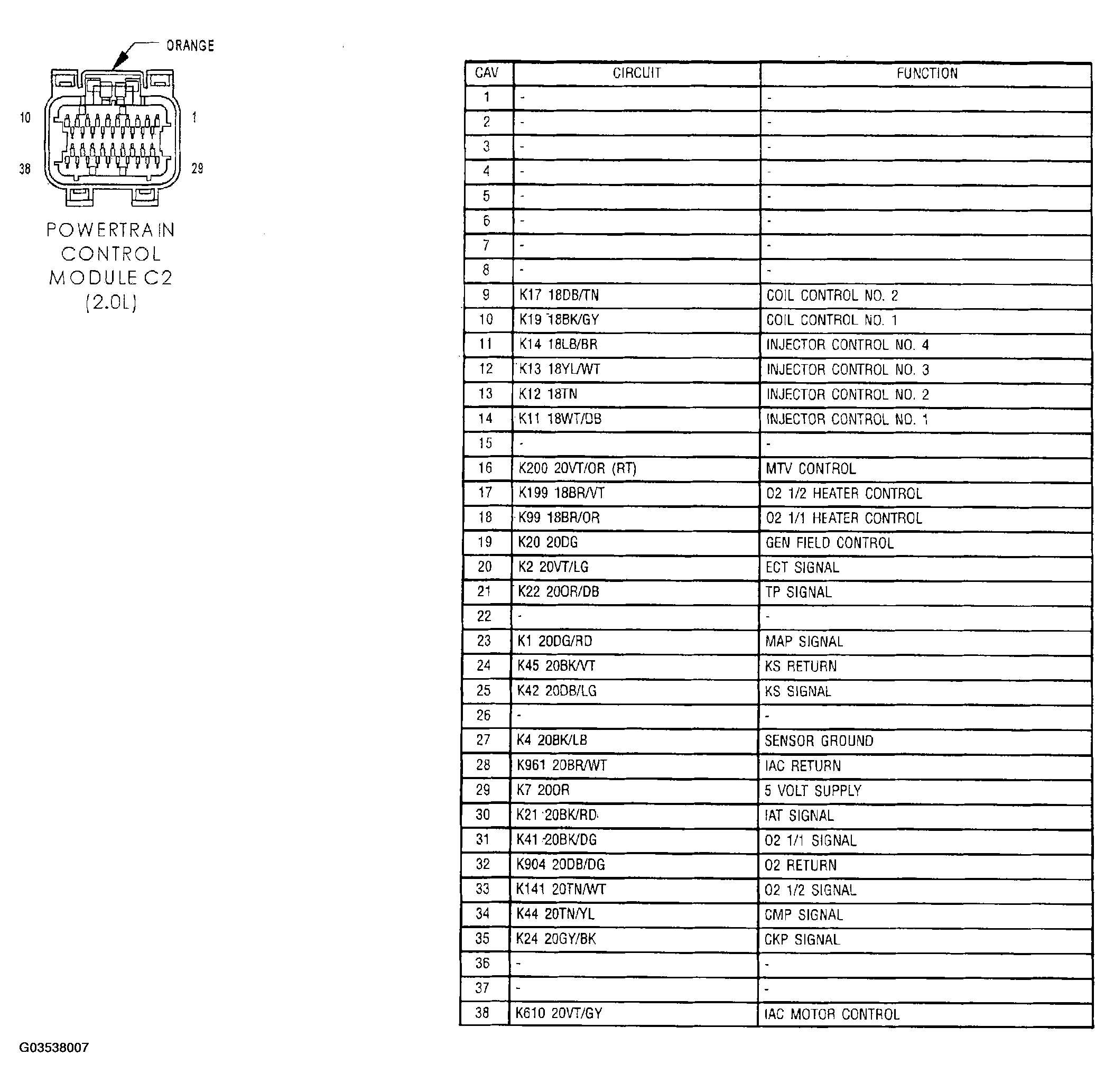

Fig 1: Powertrain Control Module (2.0L) Connector End View (C2)
G03538007Courtesy of DAIMLERCHRYSLER CORP.
