Remote Keyless Entry Module Connector End View

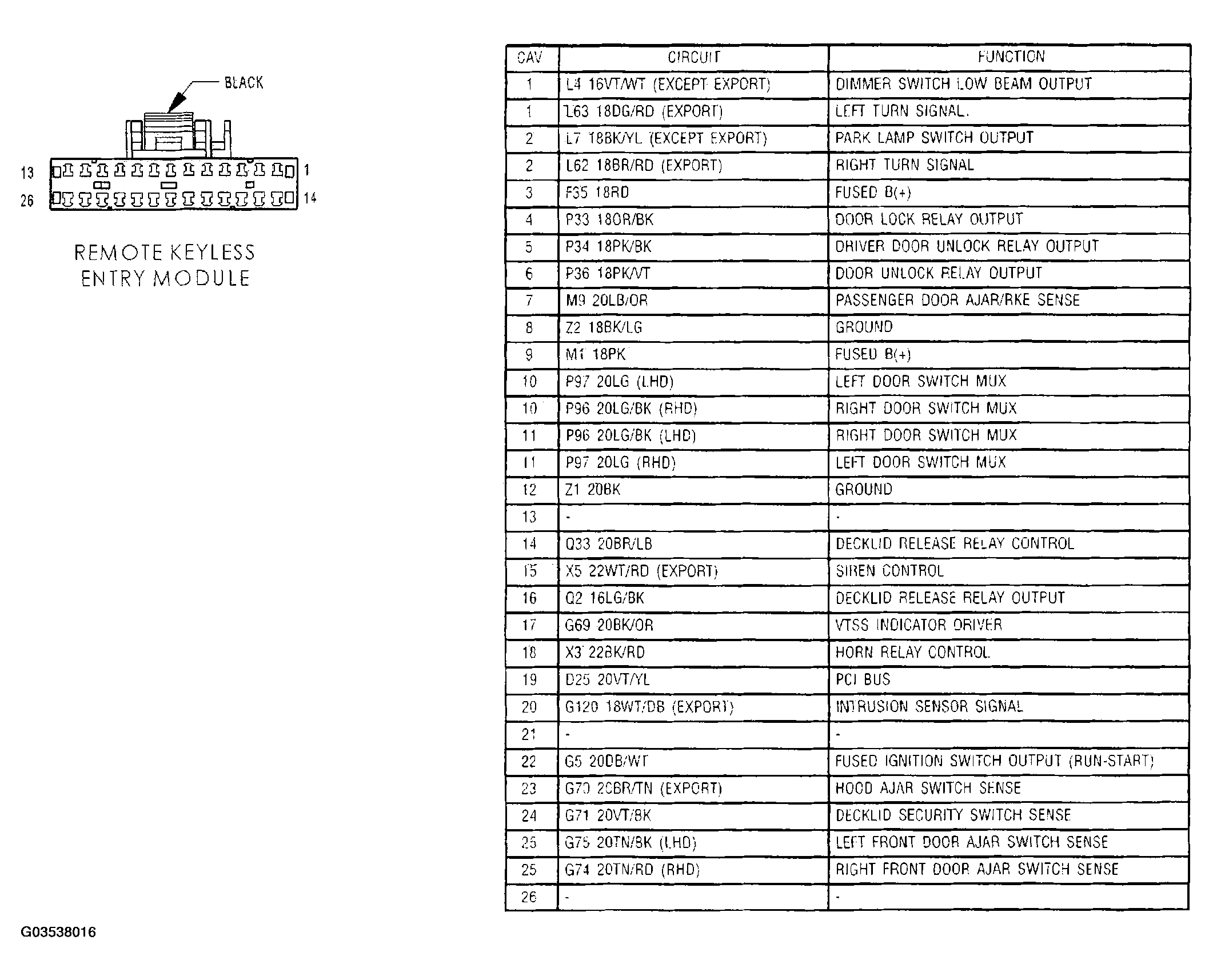

Fig 1: Remote Keyless Entry Module Connector End View
G03538016Courtesy of DAIMLERCHRYSLER CORP.
