Right Lavalier Module (Export) Connector End View

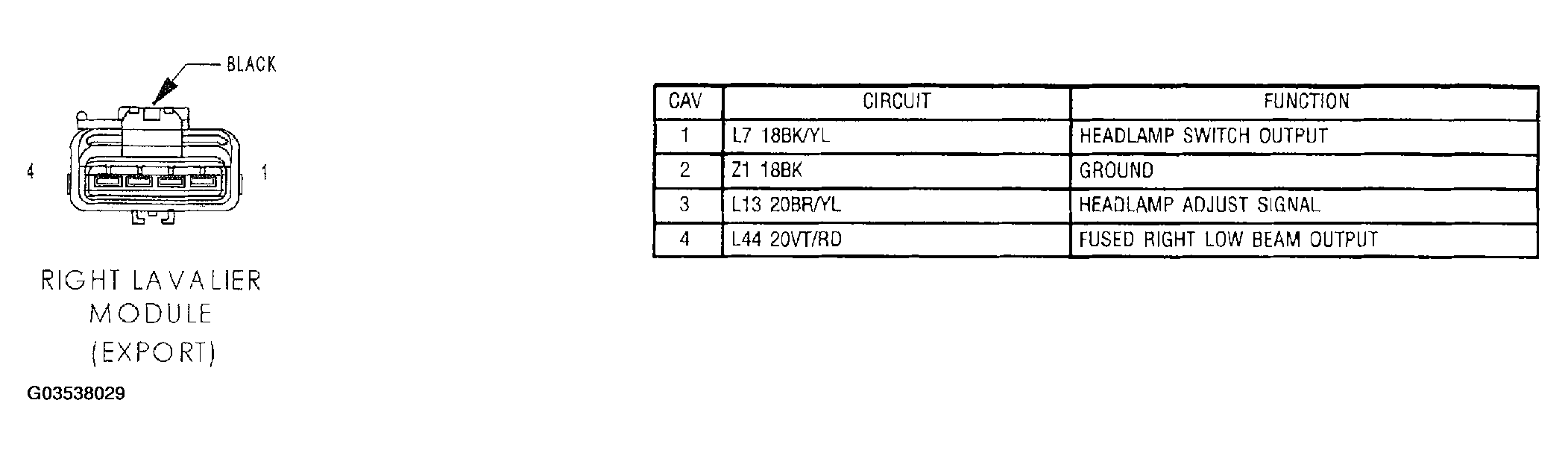

Fig 1: Right Lavalier Module (Export) Connector End View
G03538029Courtesy of DAIMLERCHRYSLER CORP.
