Installation - LHD

  1. Open APPS module and connect the cable (Fig 1).

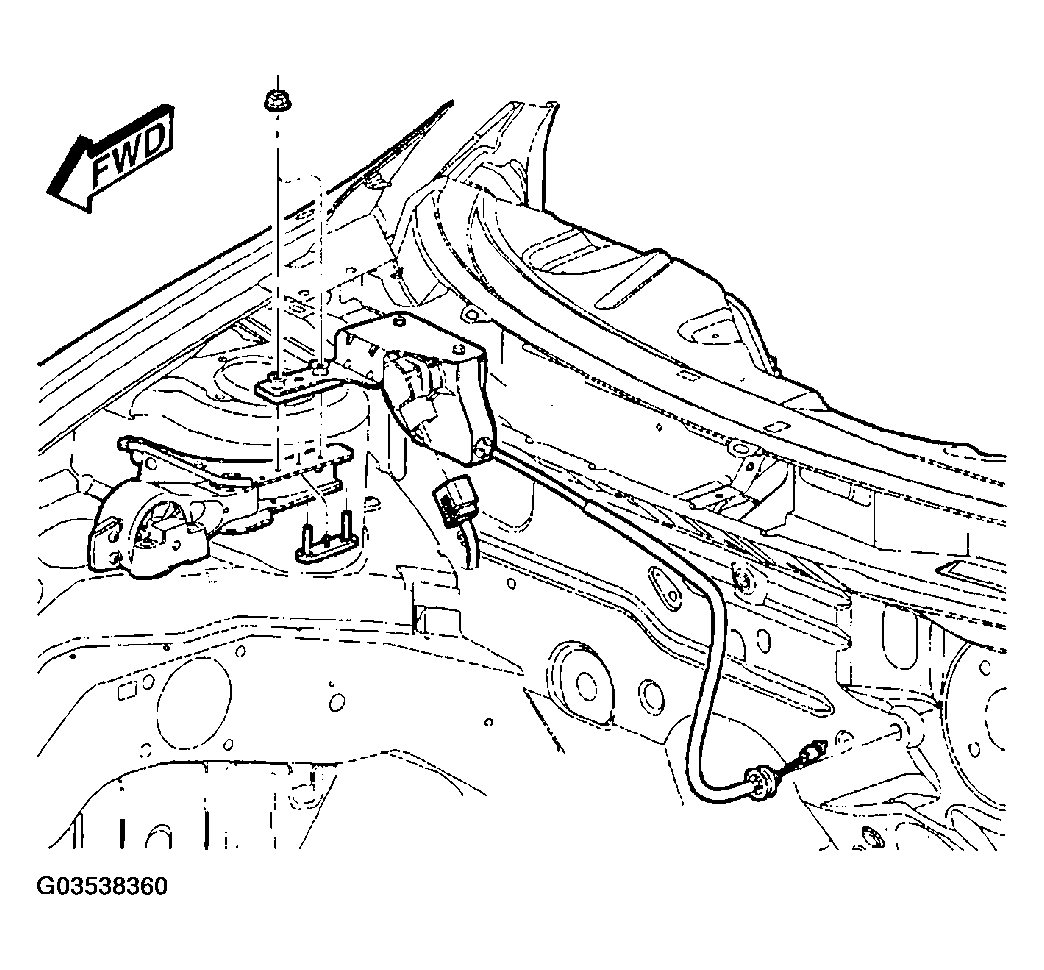

    Fig 1: Installing APPS And Cable (Left Hand Drive Vehicles)
    G03538360Courtesy of DAIMLERCHRYSLER CORP.
  2. Install APPS module.
  3. Tighten the 2 mounting bolts (Fig 1).
  4. Connect the negative battery cable.
