Installation - RHD

  1. Open APPS module and connect cable.
  2. Route electrical connector though mounting bracket (Fig 1).

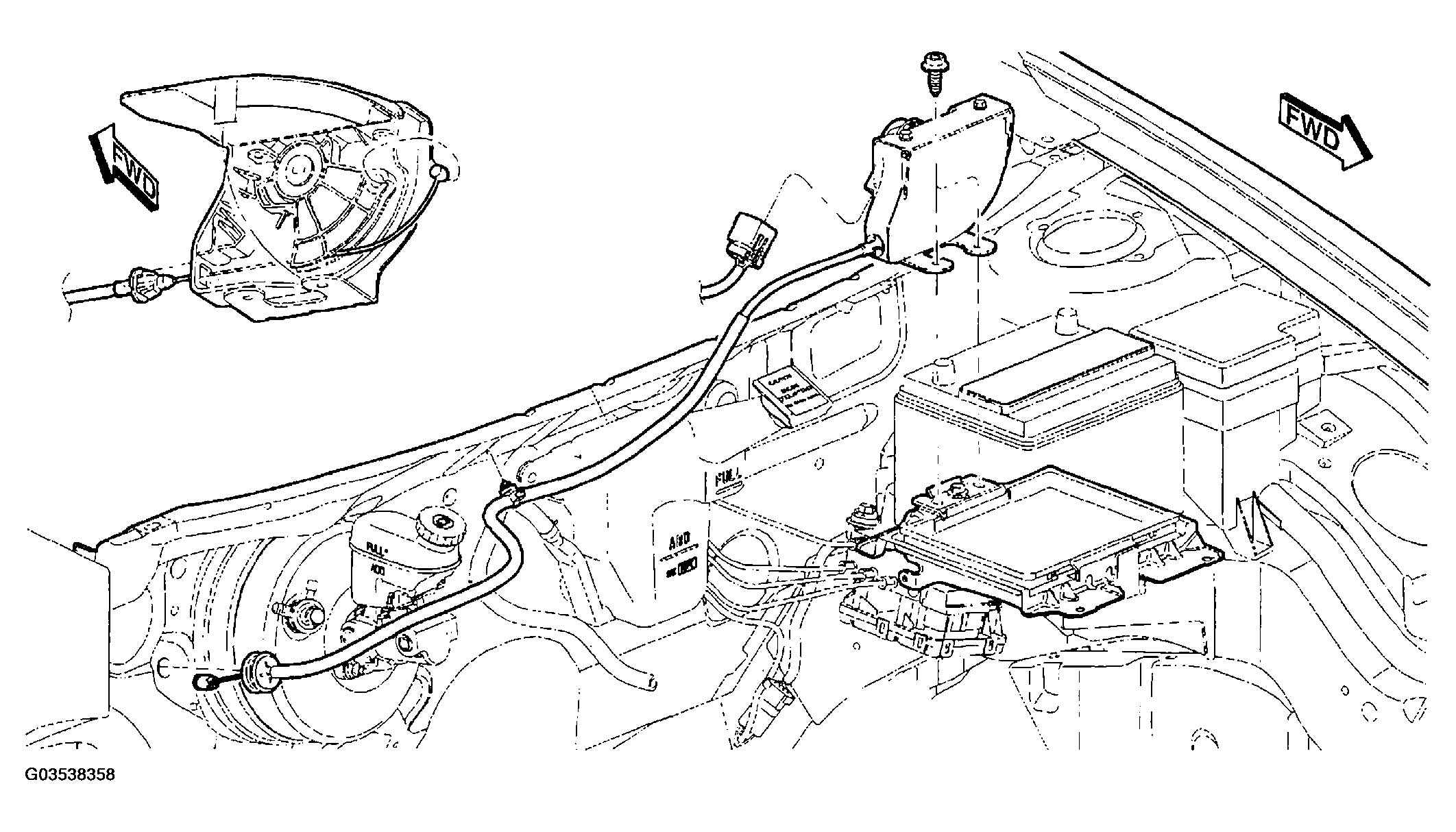

    Fig 1: Identifying APPS And Cable Routing (Right Hand Drive Vehicles)
    G03538358Courtesy of DAIMLERCHRYSLER CORP.
  3. Install electrical connector and lock (Fig 2).

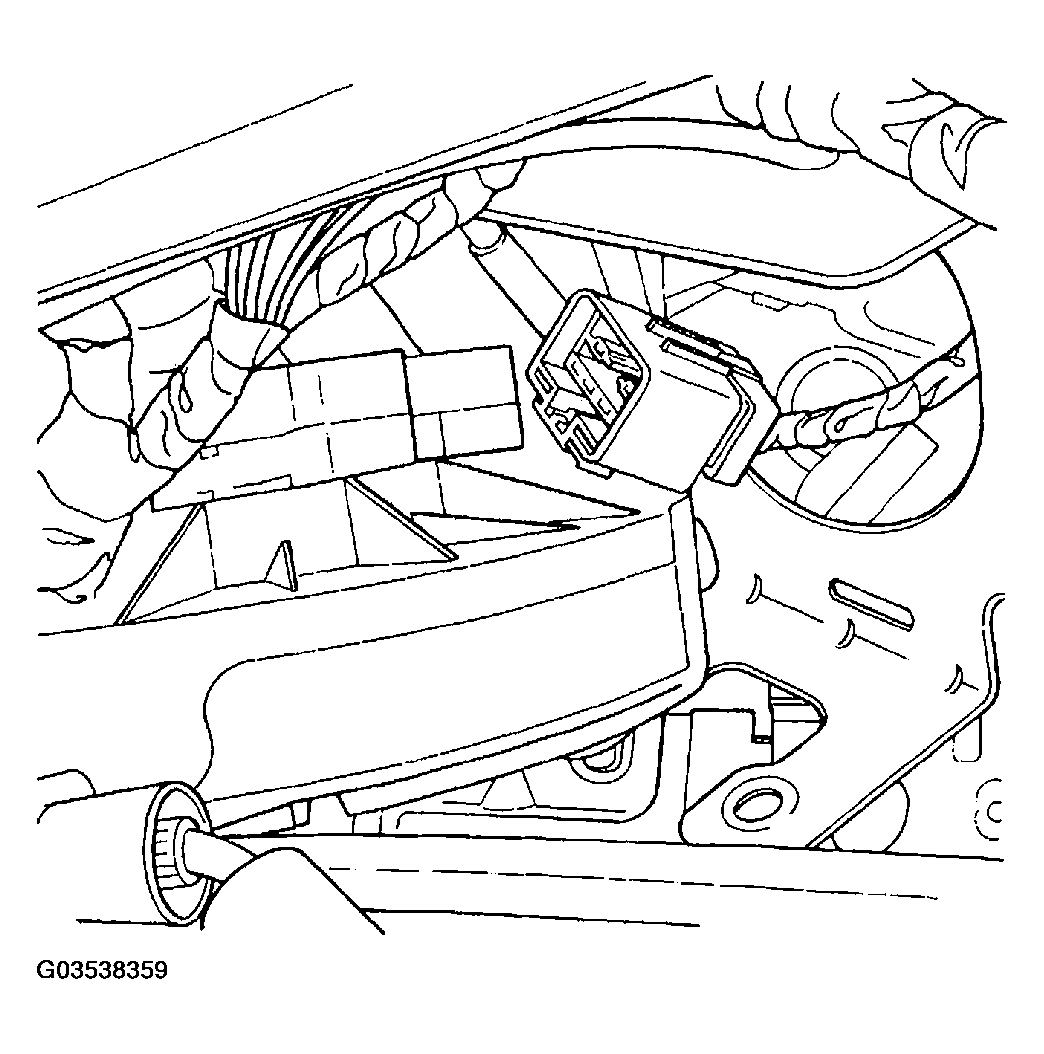

    Fig 2: Installing Electrical Connector
    G03538359Courtesy of DAIMLERCHRYSLER CORP.

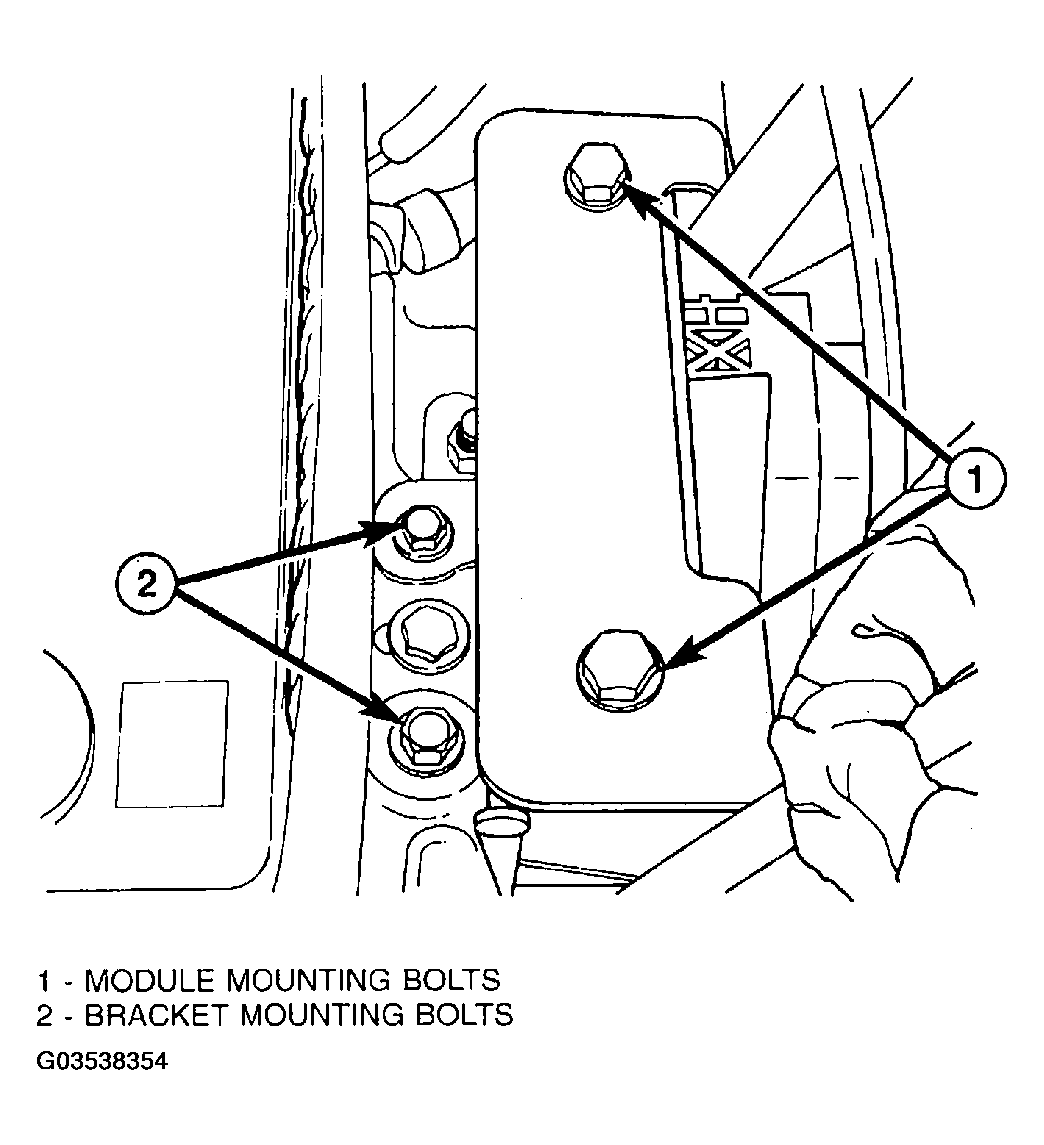

  4. Install the 2 top bolts (Figure).
  5. Install the 2 mounting bolts (Figure).
  6. Connect the negative battery cable.
