Automatic Shut Down Relay: Description

The ASD relay is located in the PDC (Fig 1 ). The inside top of the PDC cover has label showing relay and fuse identification.

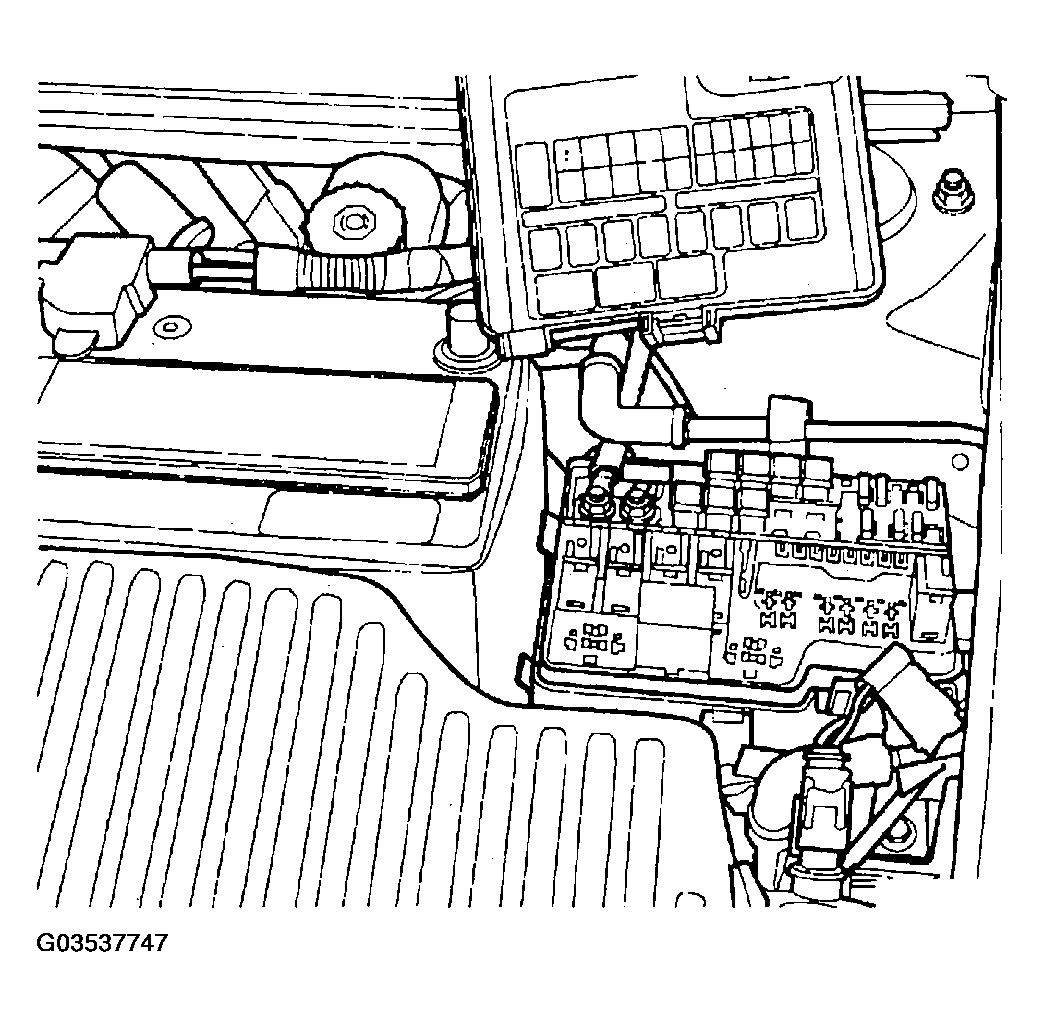

Fig 1: Locating Power Distribution Center (PDC)

Courtesy of DAIMLERCHRYSLER CORP.
