Control Modules And PDC: SRT-4

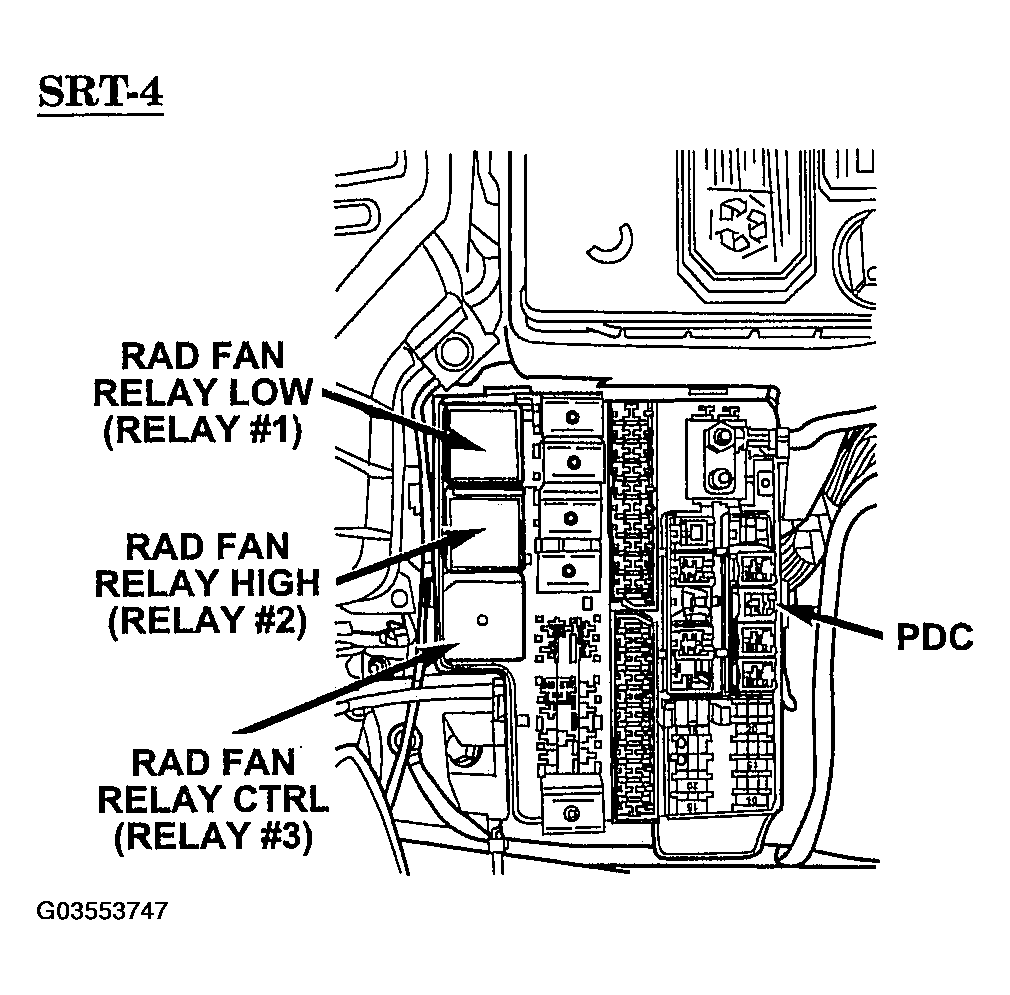

Fig 1: Identifying Relays And PDC (SRT-4)
G03553747Courtesy of DAIMLERCHRYSLER CORP.

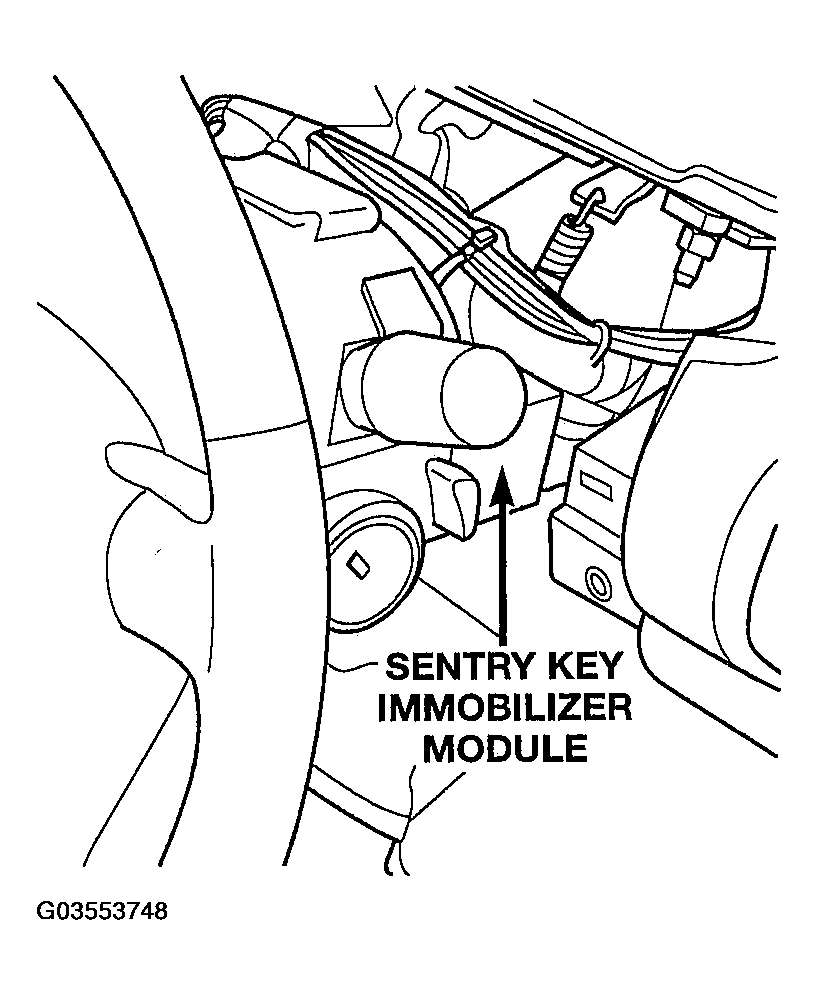

Fig 2: Identifying Sentry Key Immobilizer Module
G03553748Courtesy of DAIMLERCHRYSLER CORP.
