Controls And Solenoids: SRT-4

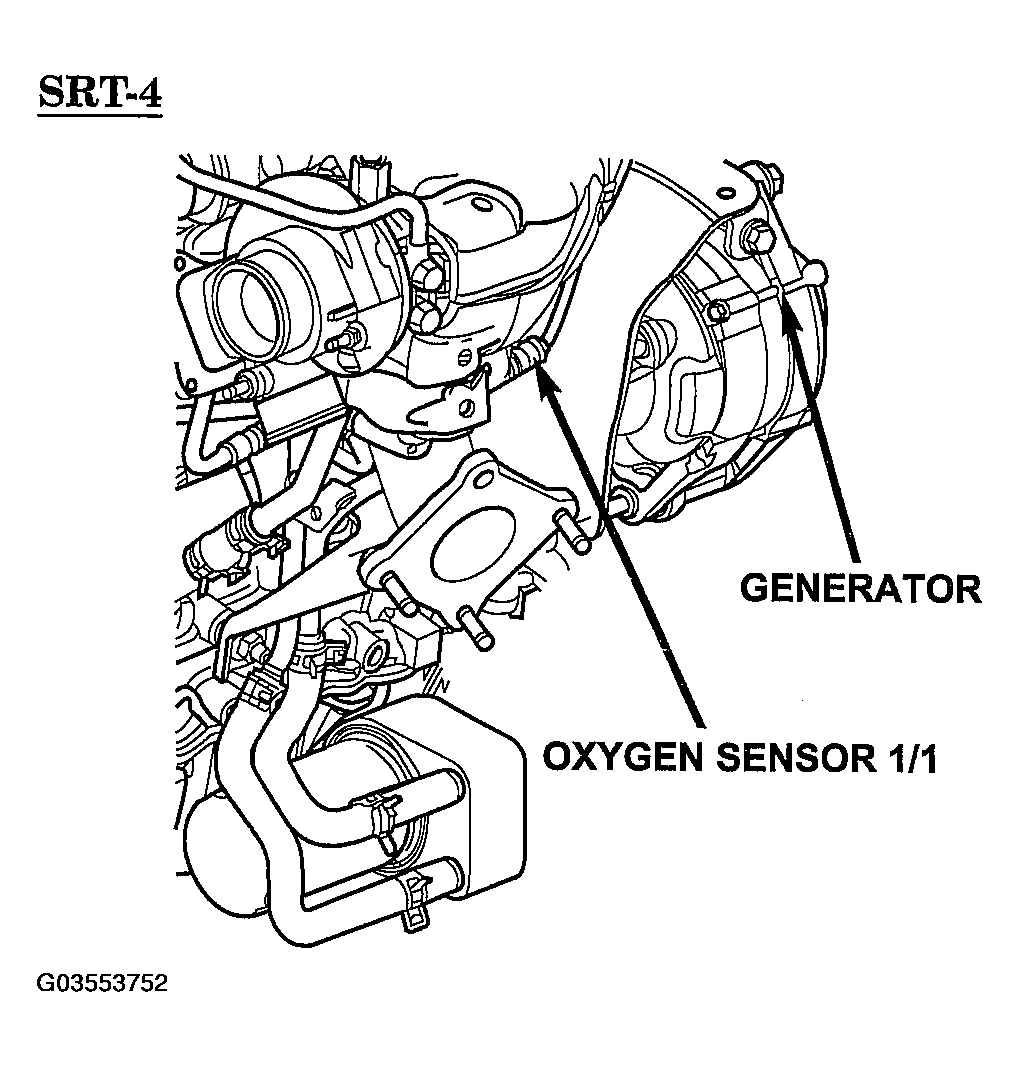

Fig 1: Identifying 1/1 Oxygen Sensor And Generator (SRT-4)
G03553752Courtesy of DAIMLERCHRYSLER CORP.

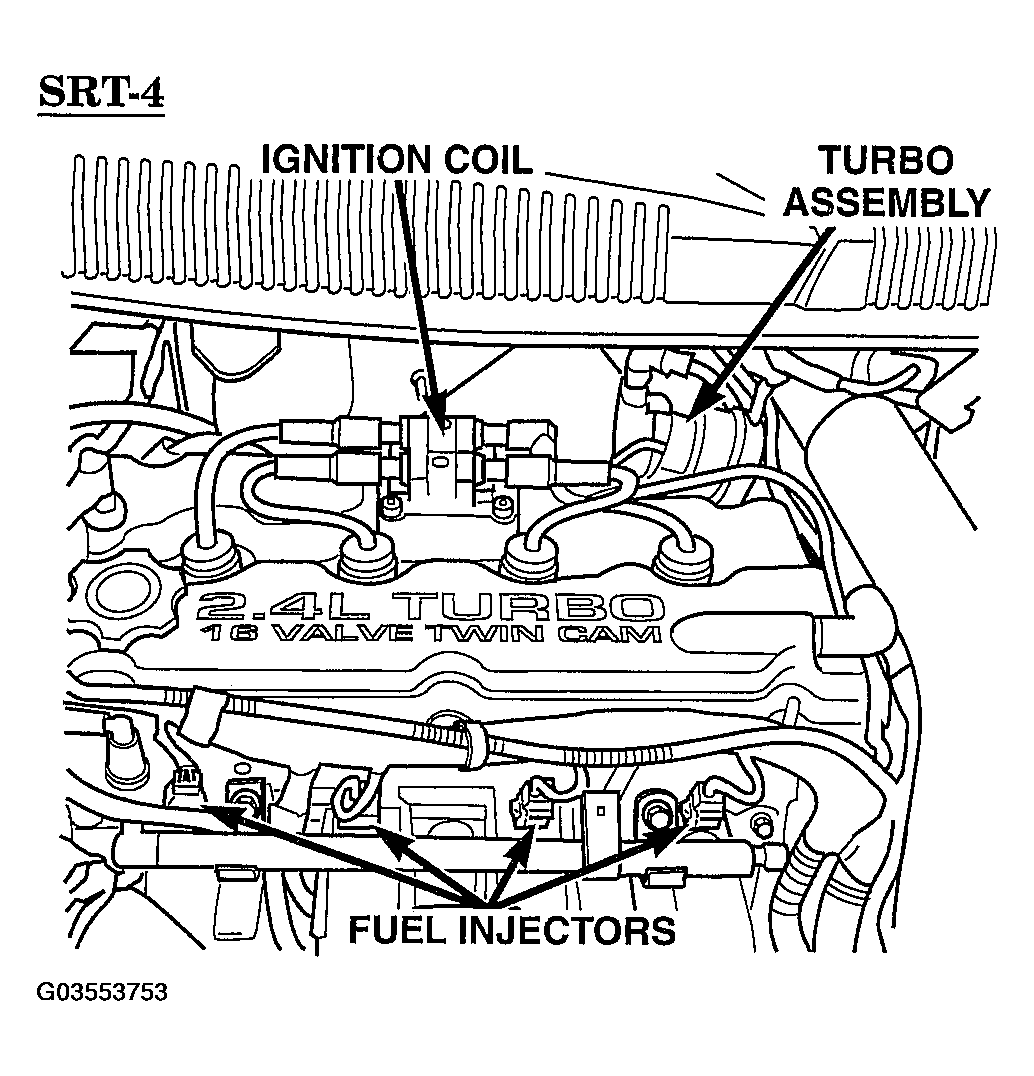

Fig 1: Identifying Ignition Coil And Fuel Injectors (SRT-4)
G03553753Courtesy of DAIMLERCHRYSLER CORP.
