Air Bag System

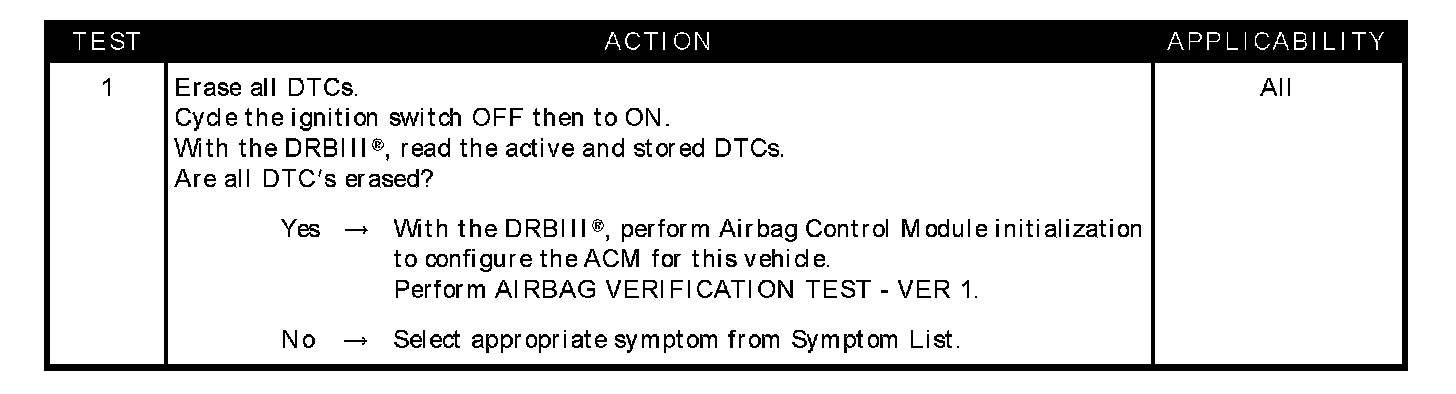

Test 1:






SYMPTOM
AIRBAG WARNING INDICATOR FLASHING

POSSIBLE CAUSES
- Initialise airbag control module
- Active code present
