Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|
| Airbag Squib-Passenger | Right side of dash. |

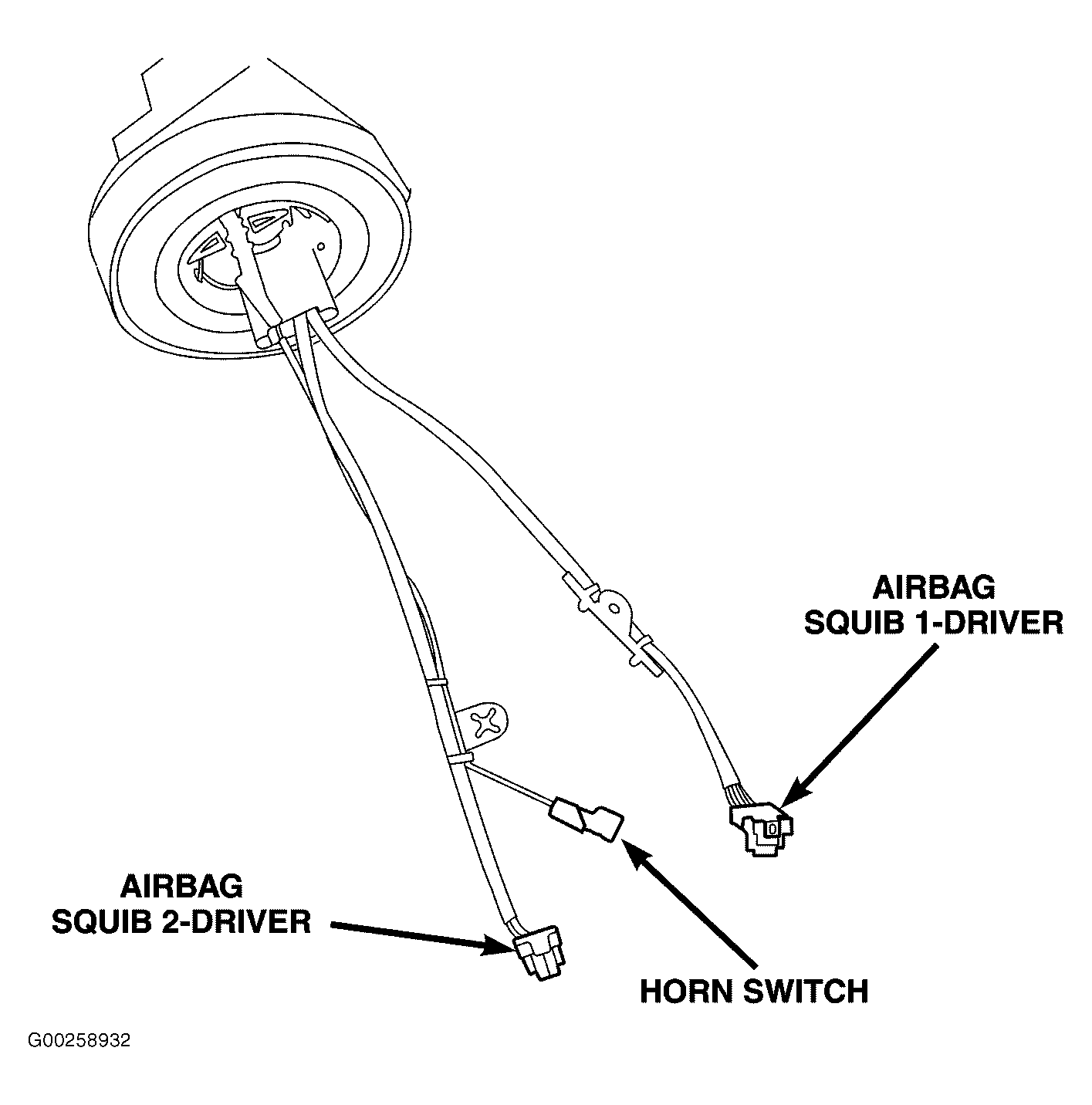

| Airbag Squib 1-Driver | In steering wheel. See Figure . |
| Airbag Squib 2-Driver | In steering wheel. See Figure . |
| Amplifier Antenna | Behind right side of dash. See Figure . |

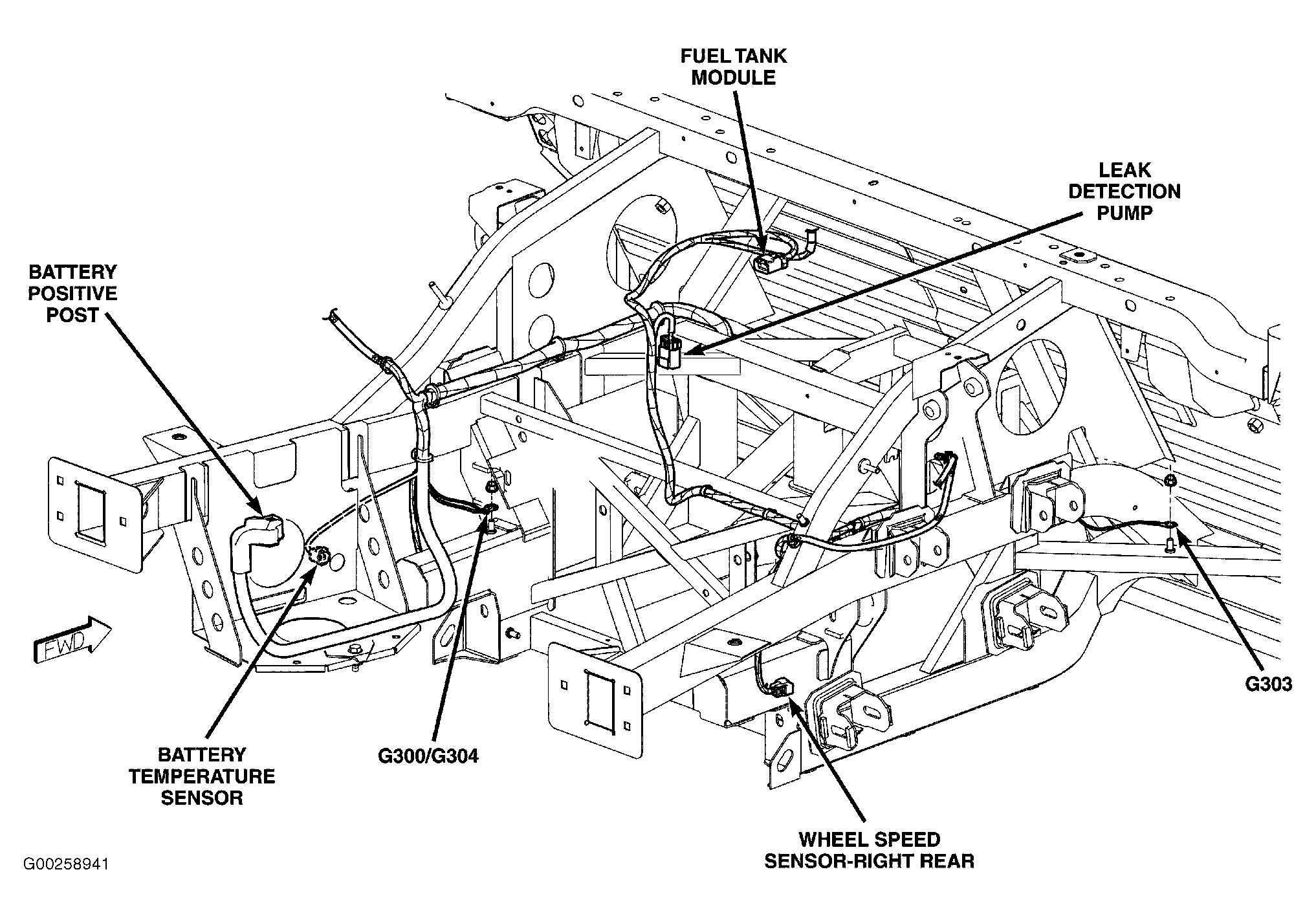

| Battery Positive Post | Left rear of vehicle. See Figure . |
| Blower Motor Resistor Block | On HVAC. See Figure . |
| Data Link Connector | Under left side of dash. See Figure . |

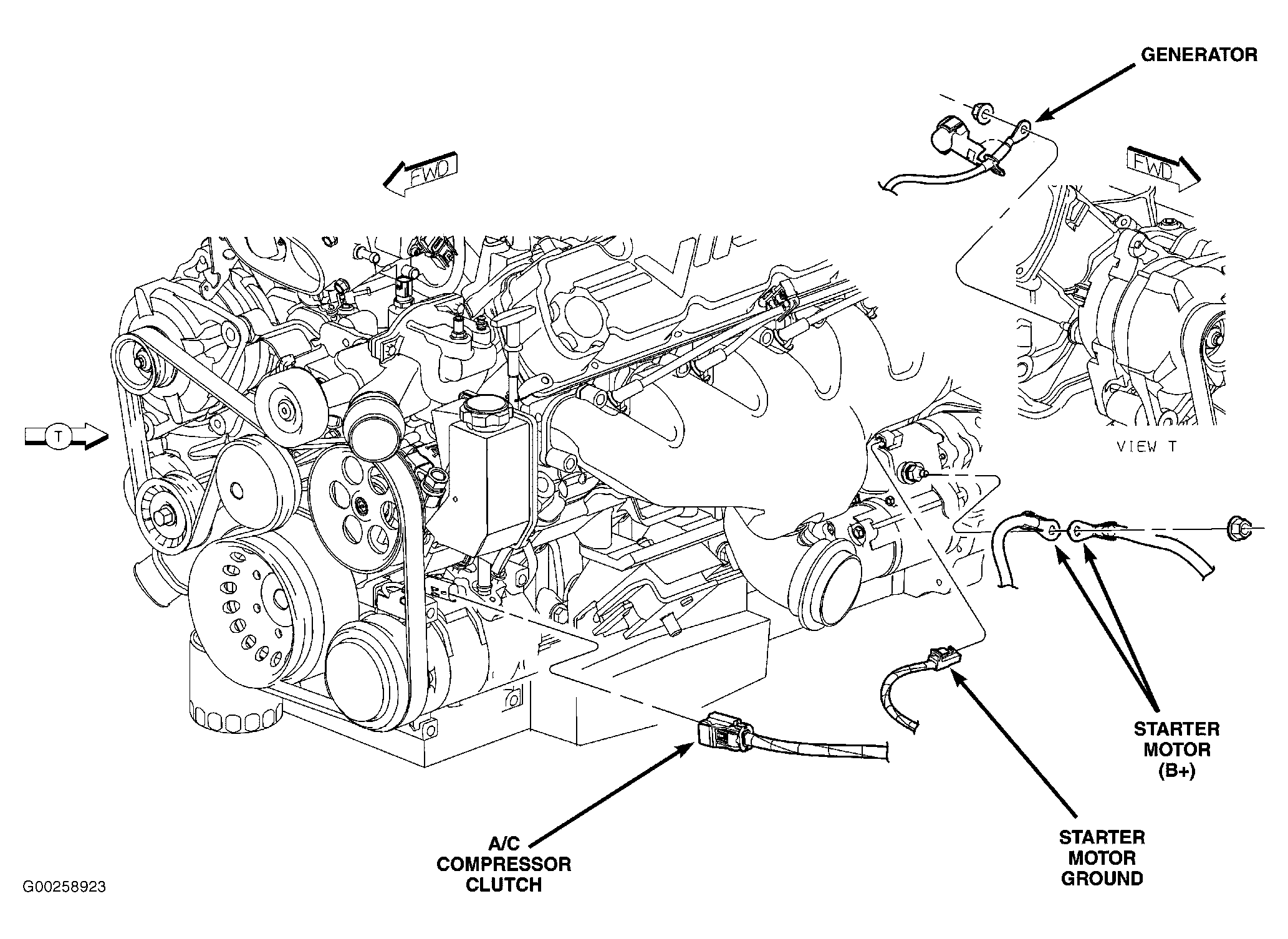

| Generator | Right front of engine. See Figure . |
| Horn-High Note | At left front of engine compartment. See Figure . |
| Horn-Low Note | At left front of engine compartment. See Figure . |
| Ignition Coil Pack-Left | Under intake manifold. |
| Ignition Coil Pack-Right | Under intake manifold. |
| Positive Jump Start Attachment | On power distribution center. See Figure . |
| Power Amplifier | Under passenger's seat. See Figure . |
| Power Distribution Center Jump Post | Rear of power distribution center. See Figure . |

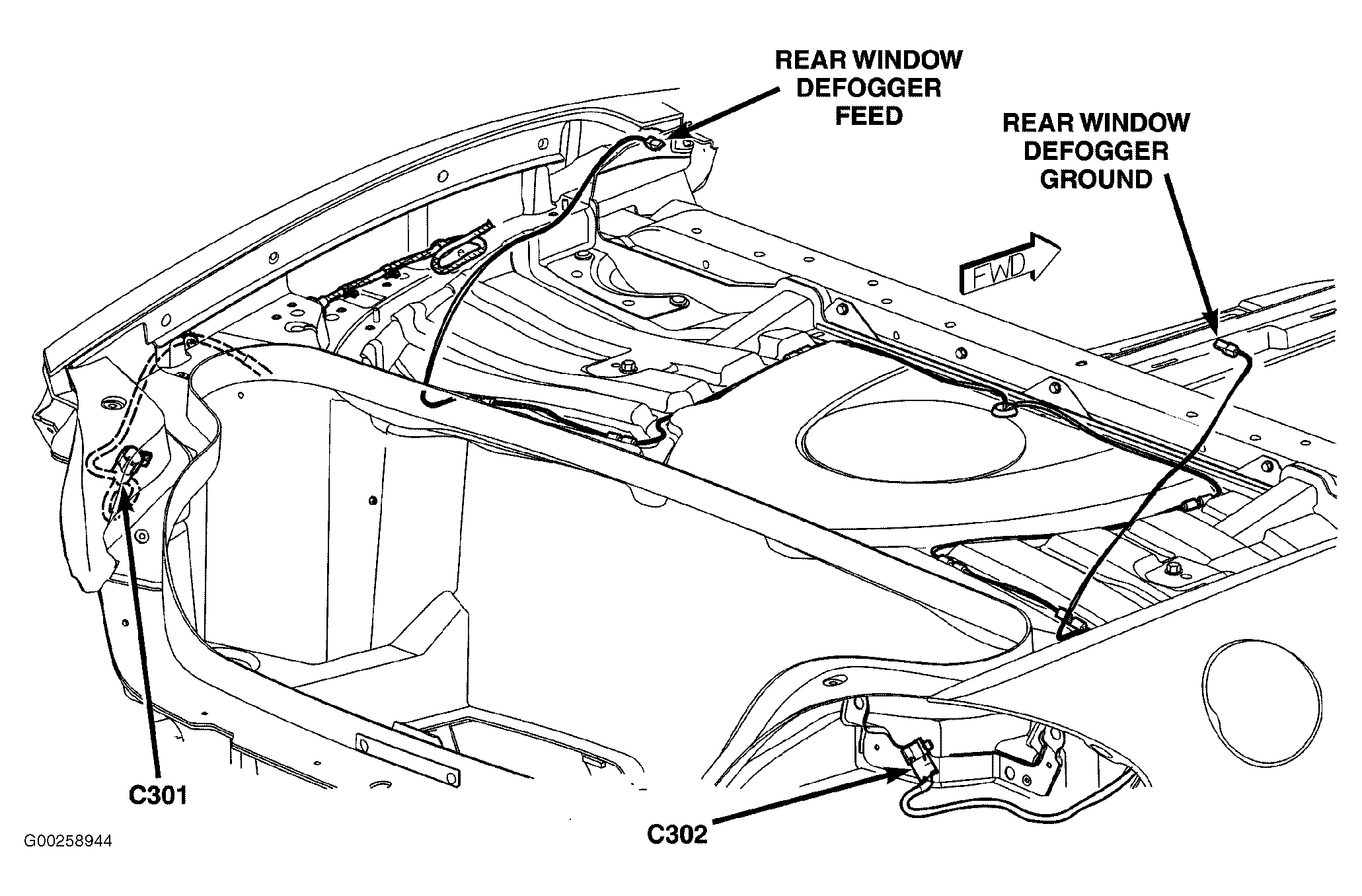

| Rear Window Defogger Feed | Left side of rear window. See Figure . |

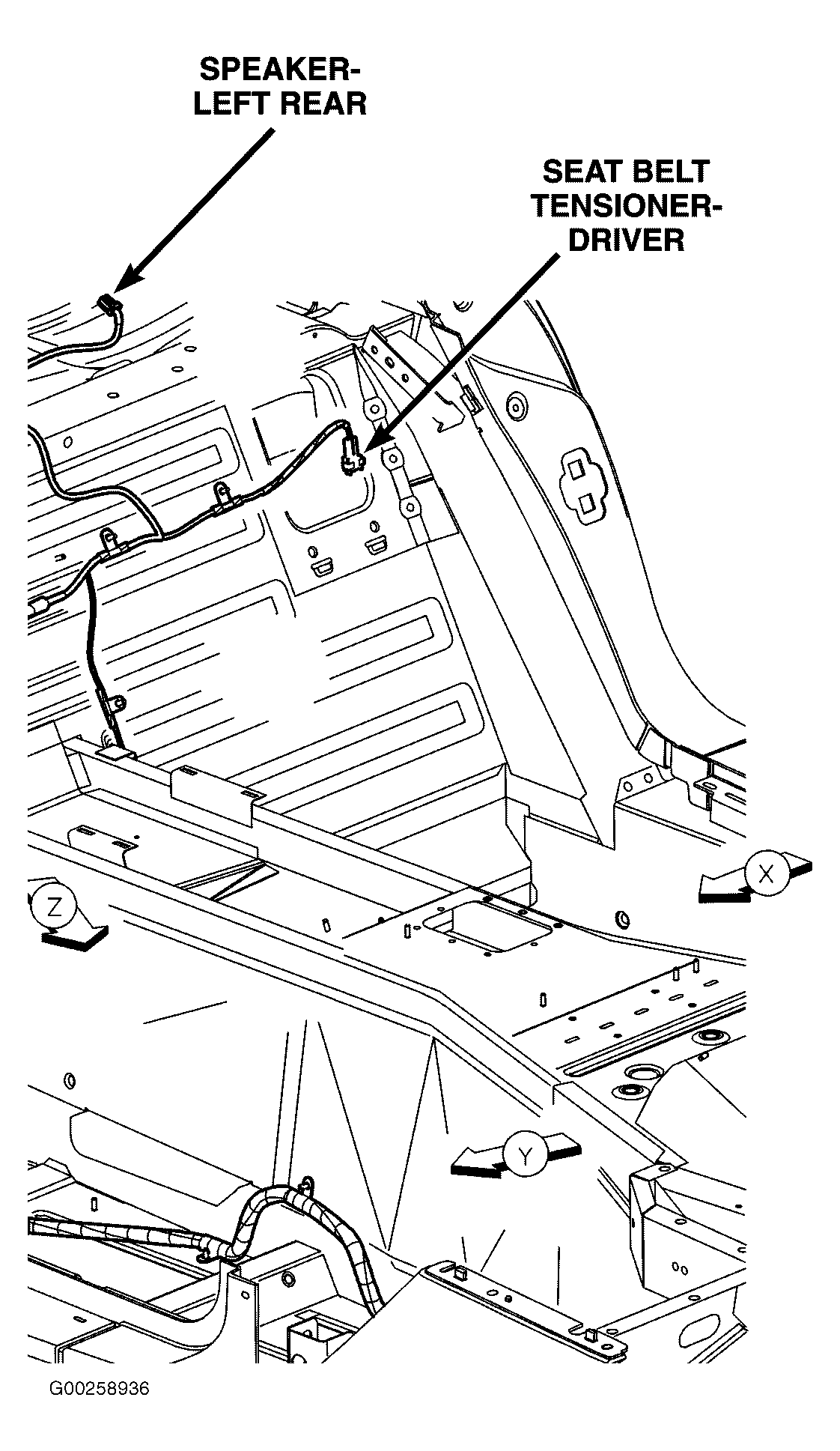

| Seat Belt Tensioner-Driver | Behind left seat. See Figure . |
| Seat Belt Tensioner-Passenger | Behind right seat. See Figure . |
| VTSS LED | Near illuminated rear view mirror. |
