Fuel Rail: Removal

Release fuel system pressure. Refer to STANDARD PROCEDURE - FUEL SYSTEM PRESSURE RELEASE PROCEDURE in this section.
Remove the battery cover and disconnect negative battery cable.
Remove the air cleaner assembly. Refer to AIR CLEANER HOUSING for more information.
Disconnect the electrical connector to the MAP sensor and. Coolant Temperature sensor (Fig 1 ).

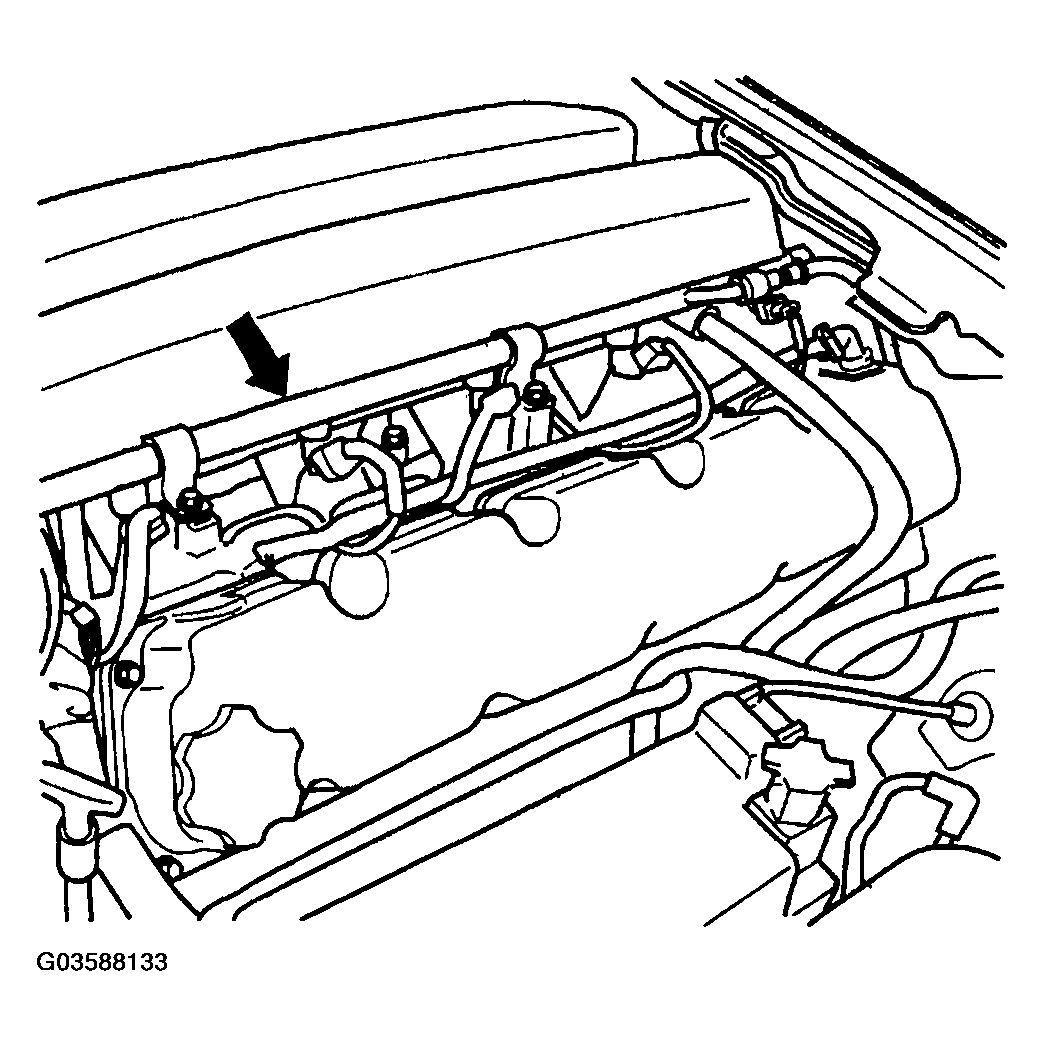

Fig 1: Disconnecting MAP & Coolant Temp. Sensor
Courtesy of DAIMLERCHRYSLER CORP.

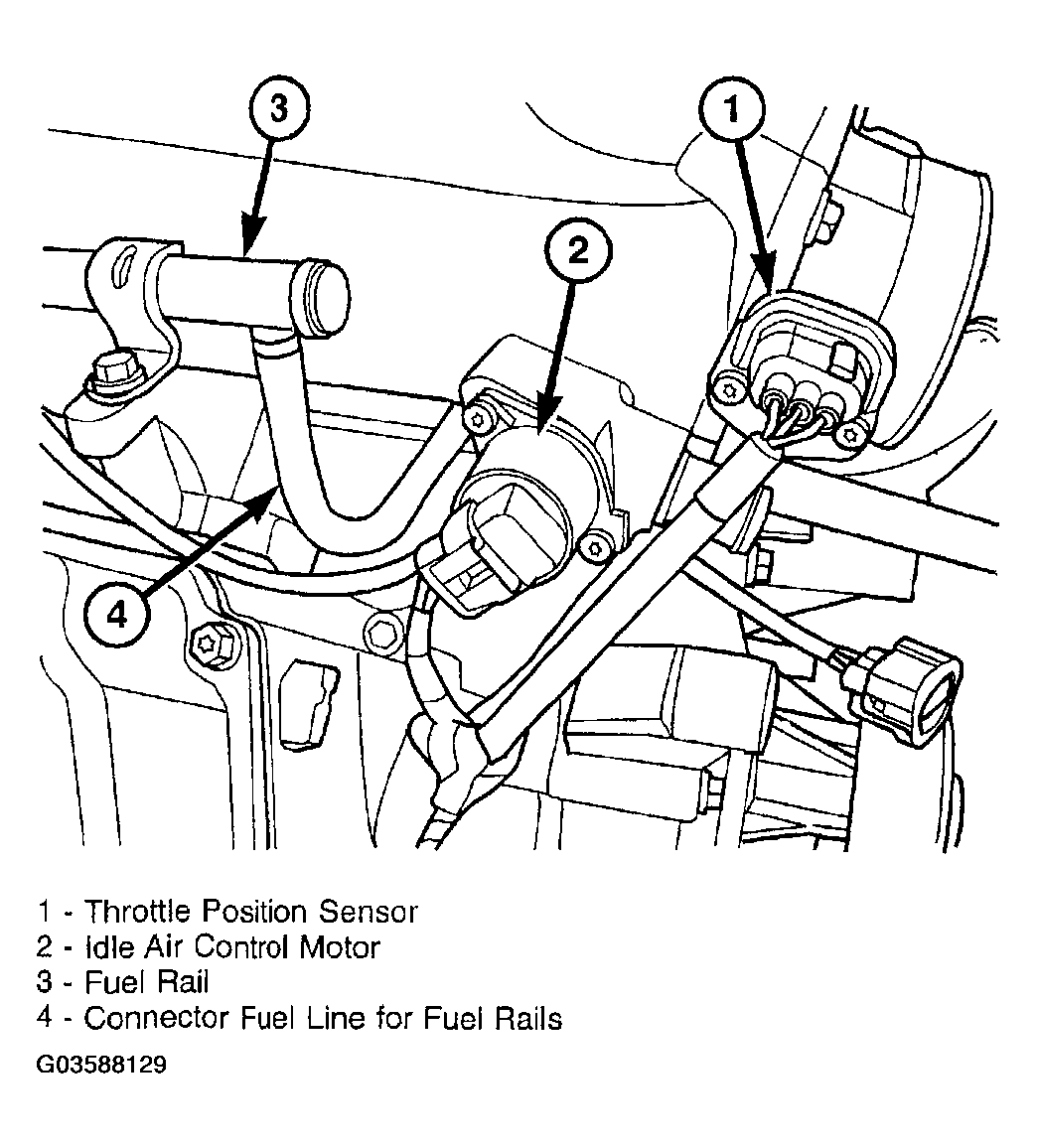

Disconnect the electrical connector to the TPS and Idle Air Control (Fig 2 ).

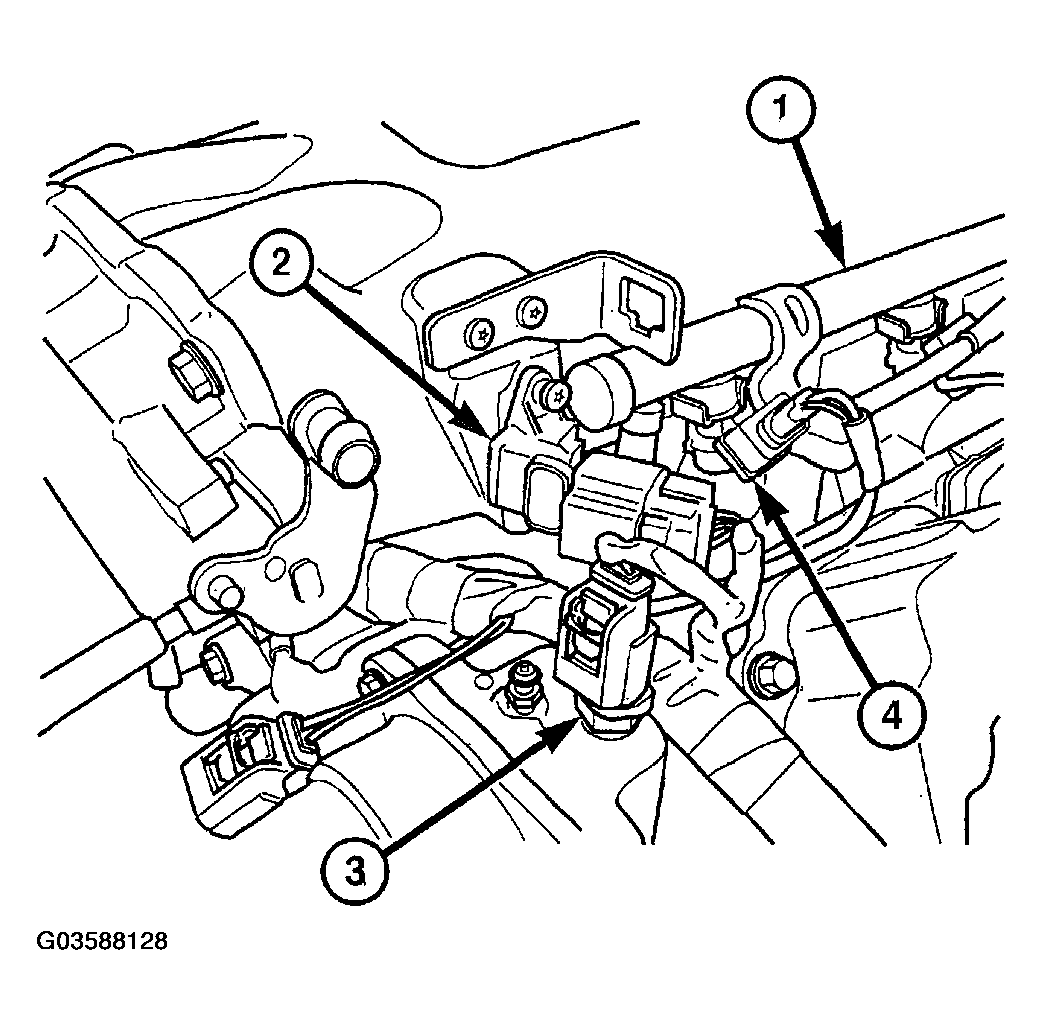

Fig 2: Disconnecting TPS & Idle Air Control
Courtesy of DAIMLERCHRYSLER CORP.

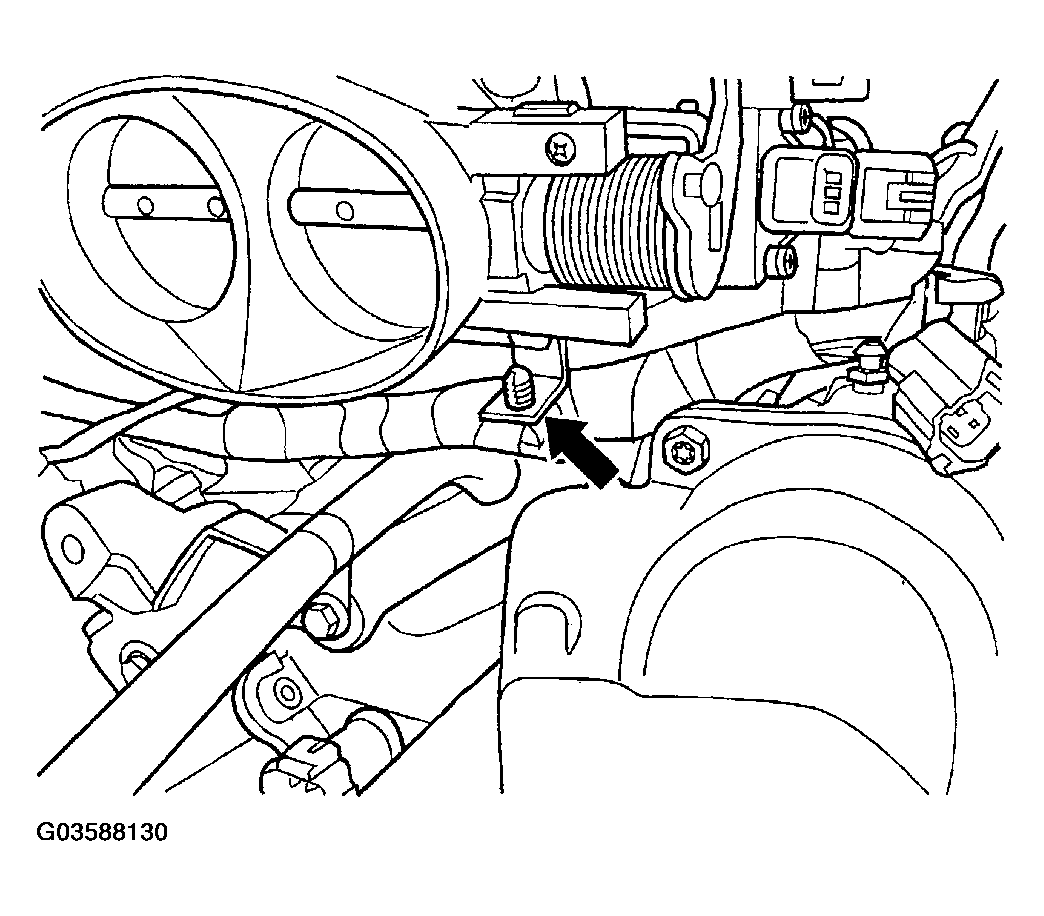

Remove the wiring harness from the wiring clips under the throttle body (Fig 3 ).

Fig 3: Removing Wiring Harness From Wiring Clips
Courtesy of DAIMLERCHRYSLER CORP.

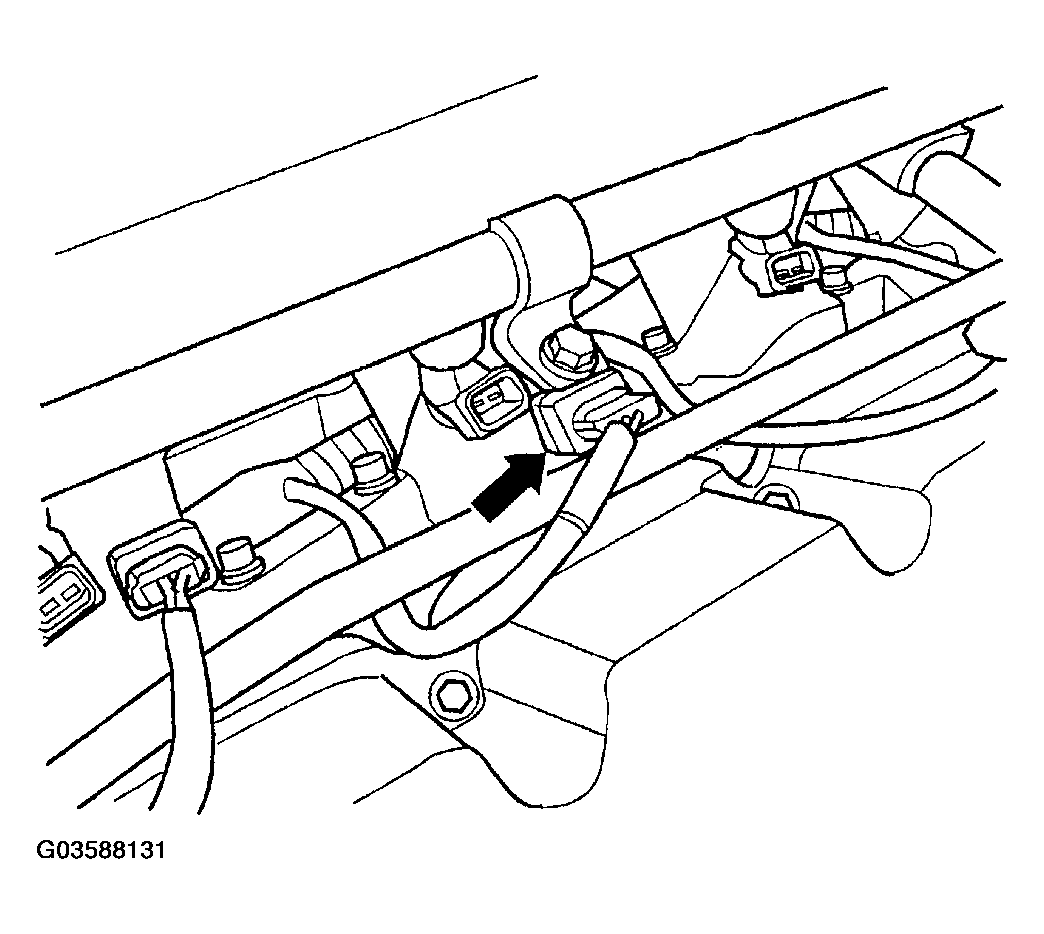

Disconnect the electrical connector from the fuel injectors (Fig 4 ).

Fig 4: Disconnecting Fuel Injector Connector
Courtesy of DAIMLERCHRYSLER CORP.

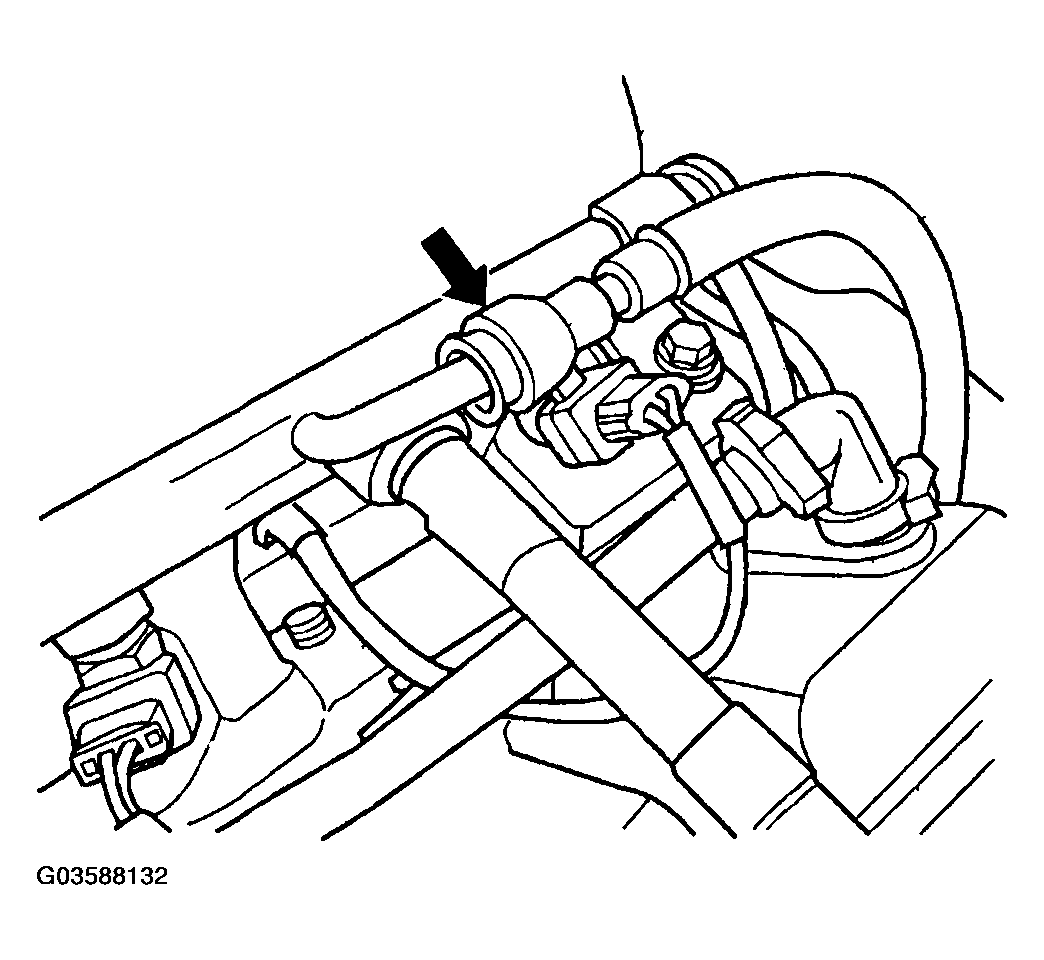

Disconnect the fuel line quick connector. (Fig 5 ).

Fig 5: Disconnecting Fuel Line Quick Connector
Courtesy of DAIMLERCHRYSLER CORP.
Remove the bolts for the fuel rail (Fig 6 ).

Fig 6: Removing Bolts For Fuel Rail
Courtesy of DAIMLERCHRYSLER CORP.

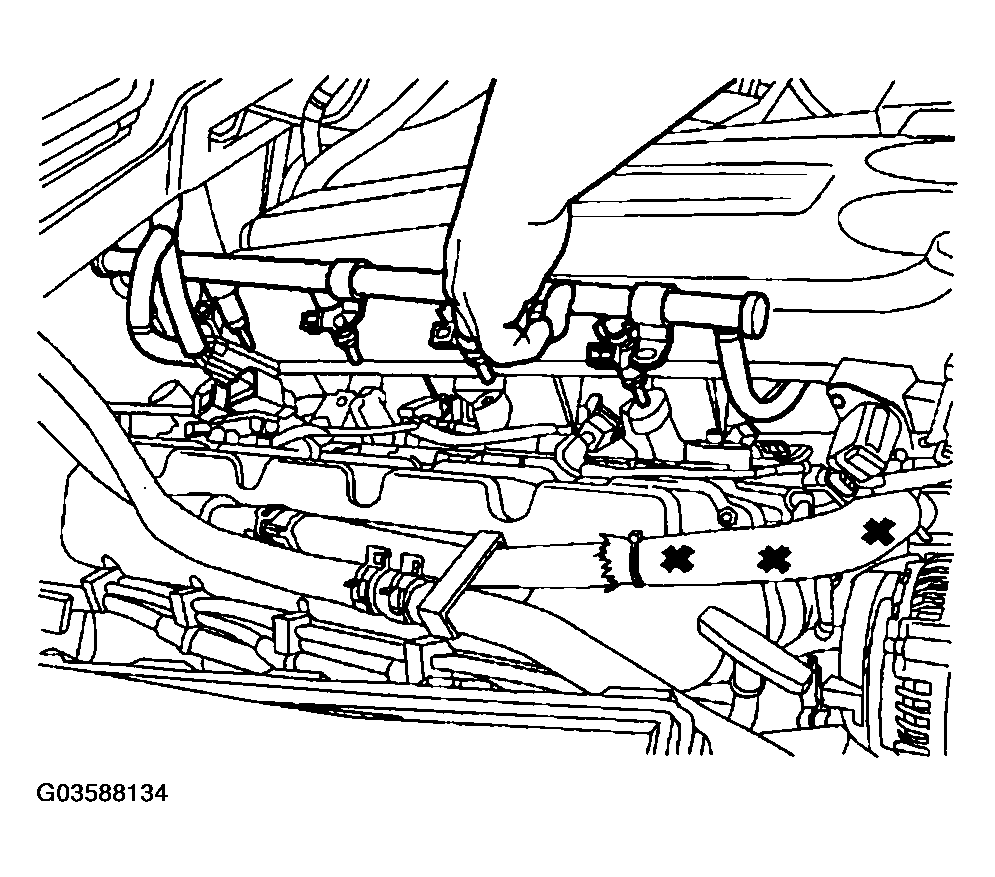

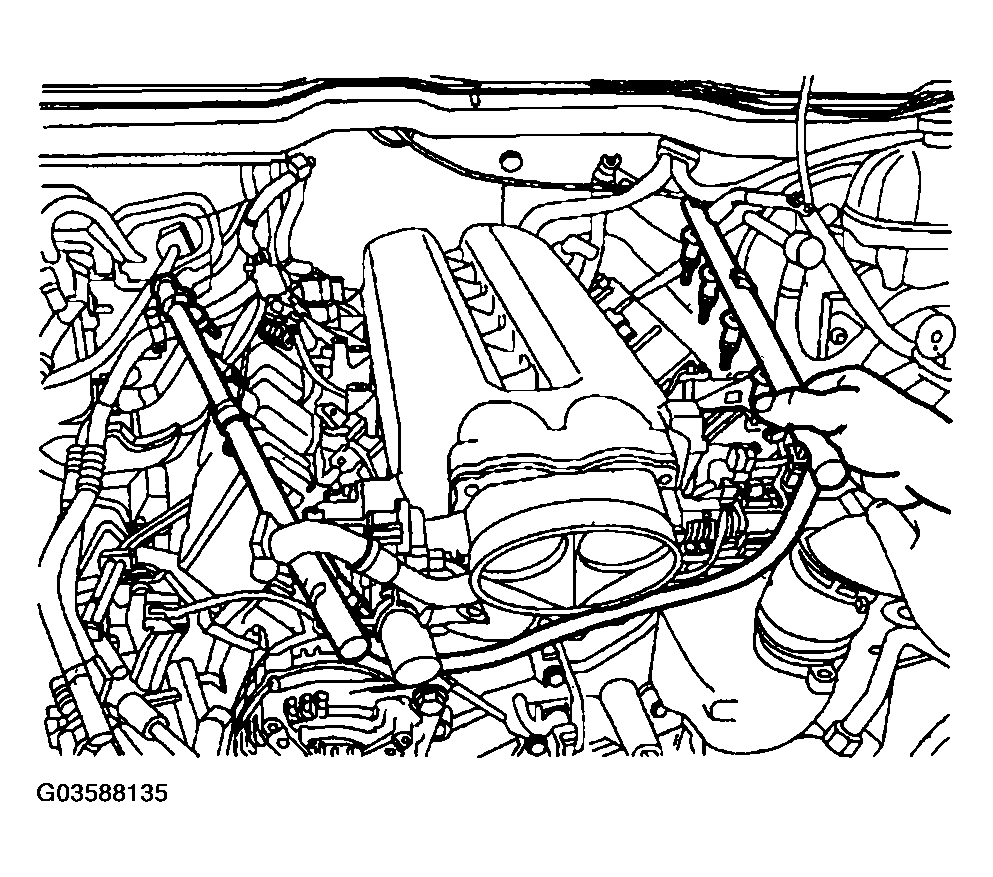

Pull fuel rail and injectors straight up and out of the intake manifold (Fig 7 ).
Move the fuel rail forward (Fig 8 ) and out from under the intake manifold and throttle body (Fig 9 ).

Fig 7: Pulling Fuel Rail And Injectors Straight Up
Courtesy of DAIMLERCHRYSLER CORP.

Fig 8: Removing/Installing Fuel Rail
Courtesy of DAIMLERCHRYSLER CORP.

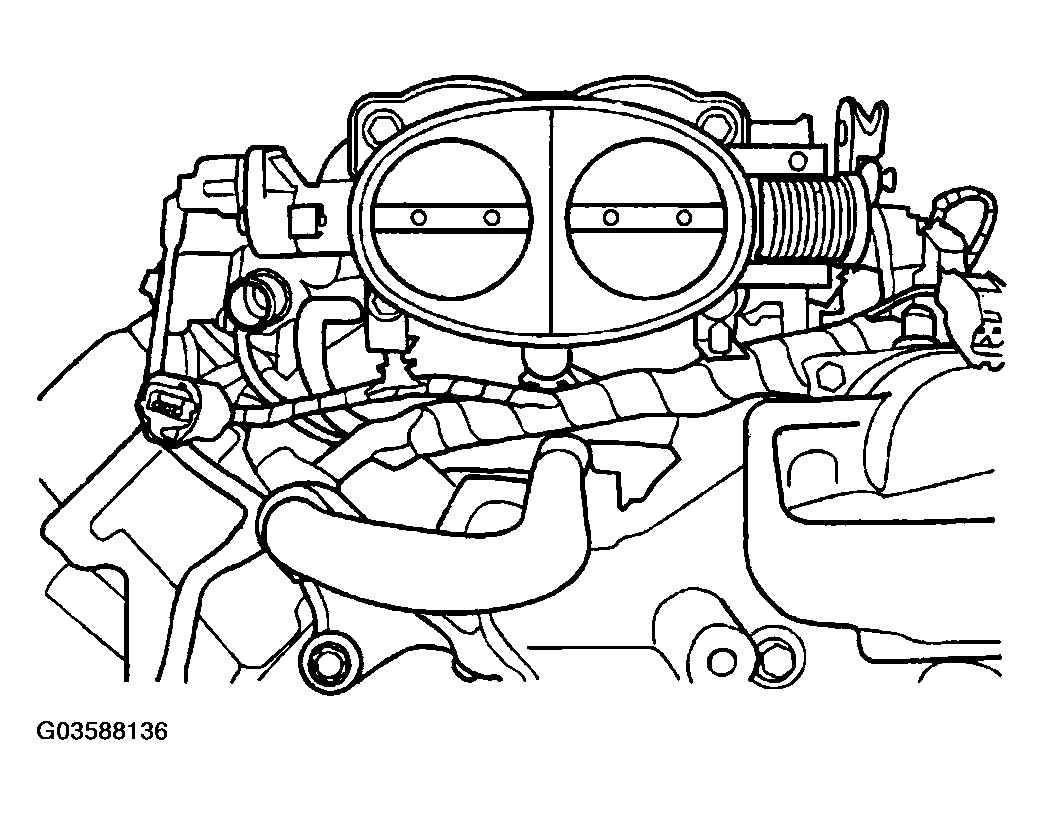

Fig 9: Removing Throttle Body
Courtesy of DAIMLERCHRYSLER CORP.

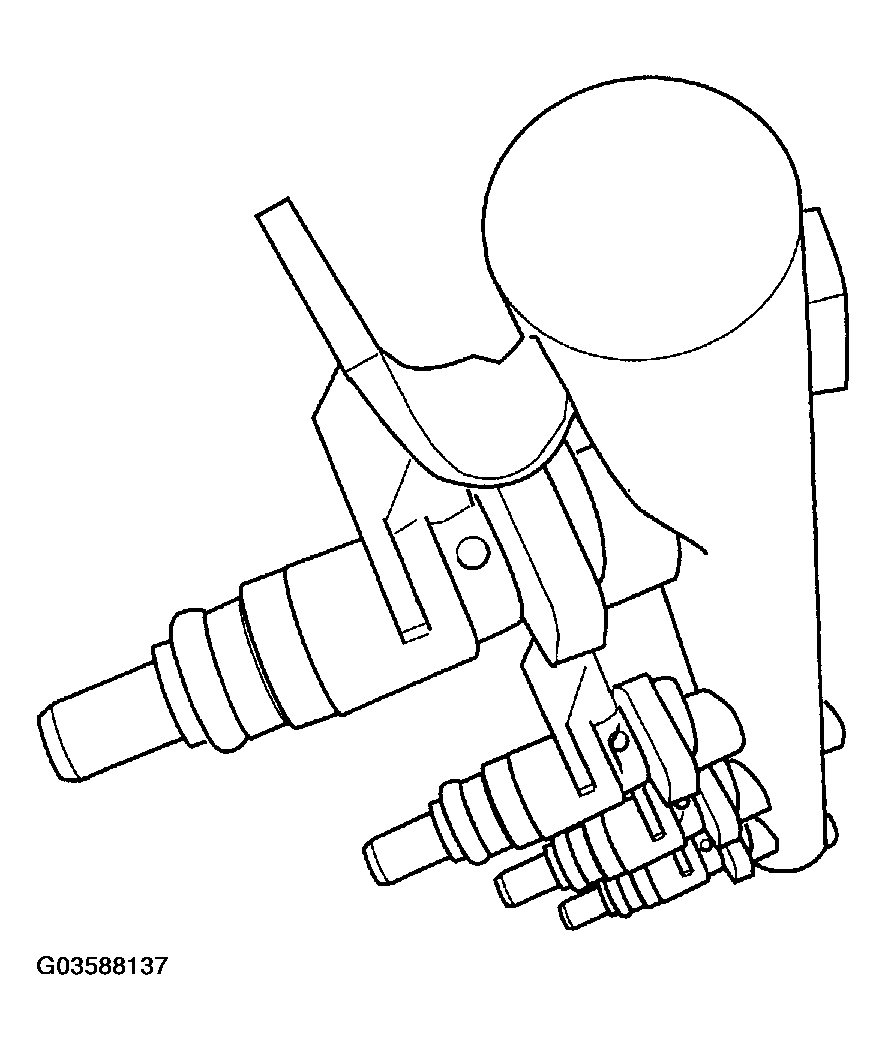

Remove the fuel injector from the fuel rail (Fig 10 ).

Fig 10: Removing Fuel Injector From Fuel Rail
Courtesy of DAIMLERCHRYSLER CORP.
