EVAP Leak Detection Sequence Diagram

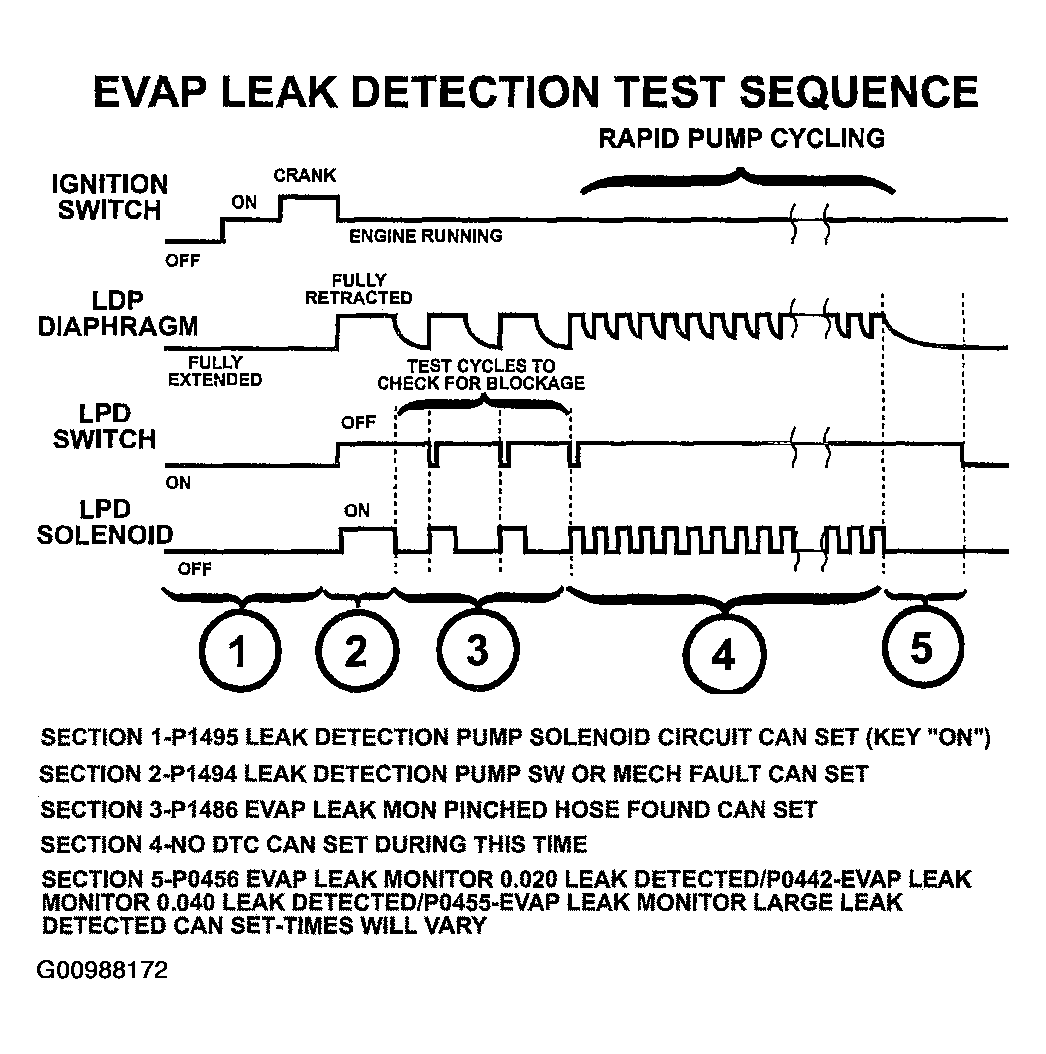

Fig 1: EVAP Leak Detection Sequence Diagram
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
