Battery Temperature Sensor - Way

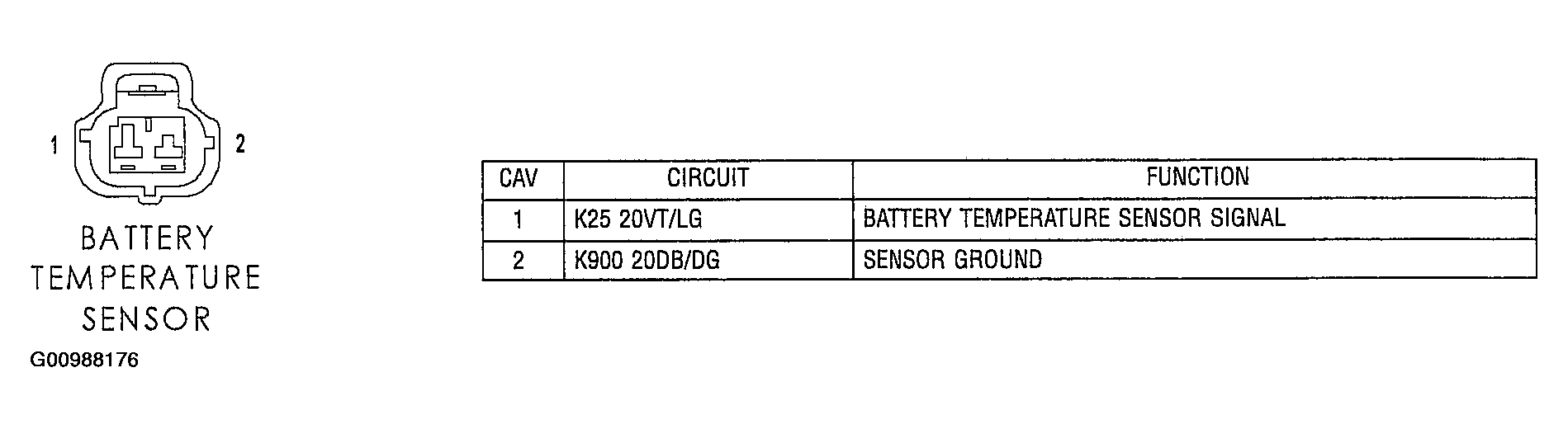

Fig 1: View Of Battery Temperature Sensor 2 Way Connector Pinouts And Function Description Chart
G00988176Courtesy of DAIMLERCHRYSLER CORP.
