Air Bag Control Module
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Air Bag Control Module

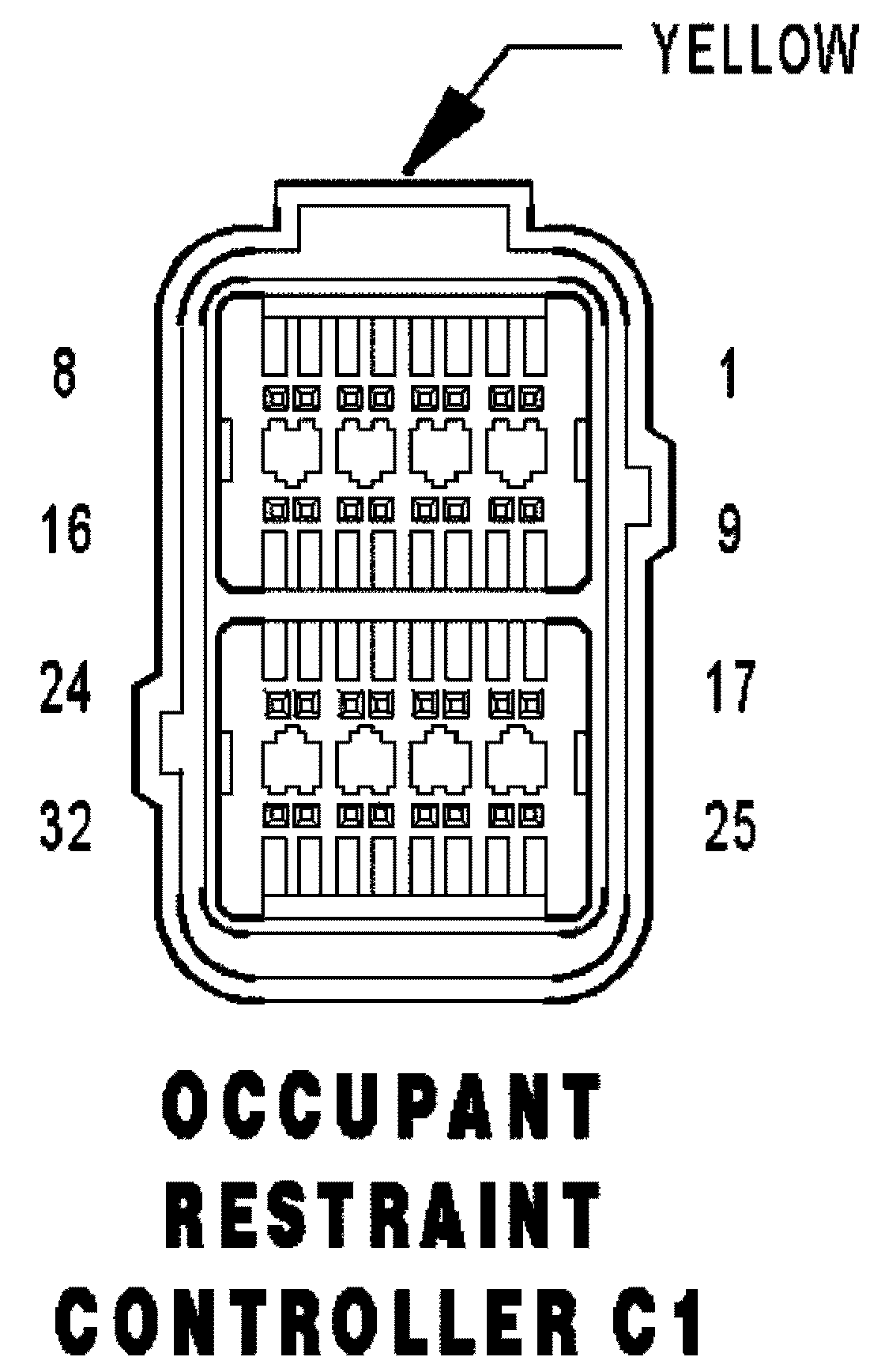

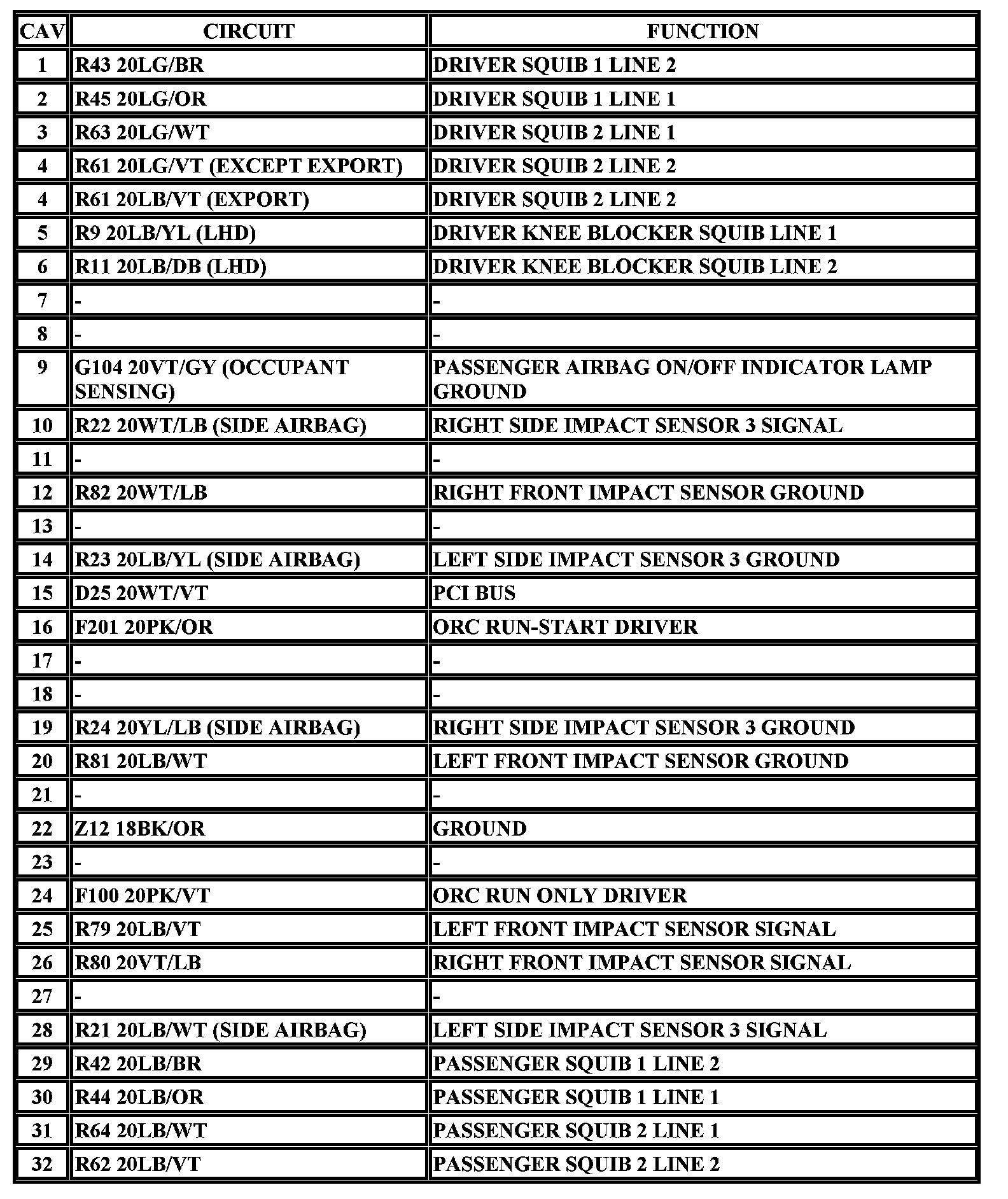

Occupant Restraint Controller C1

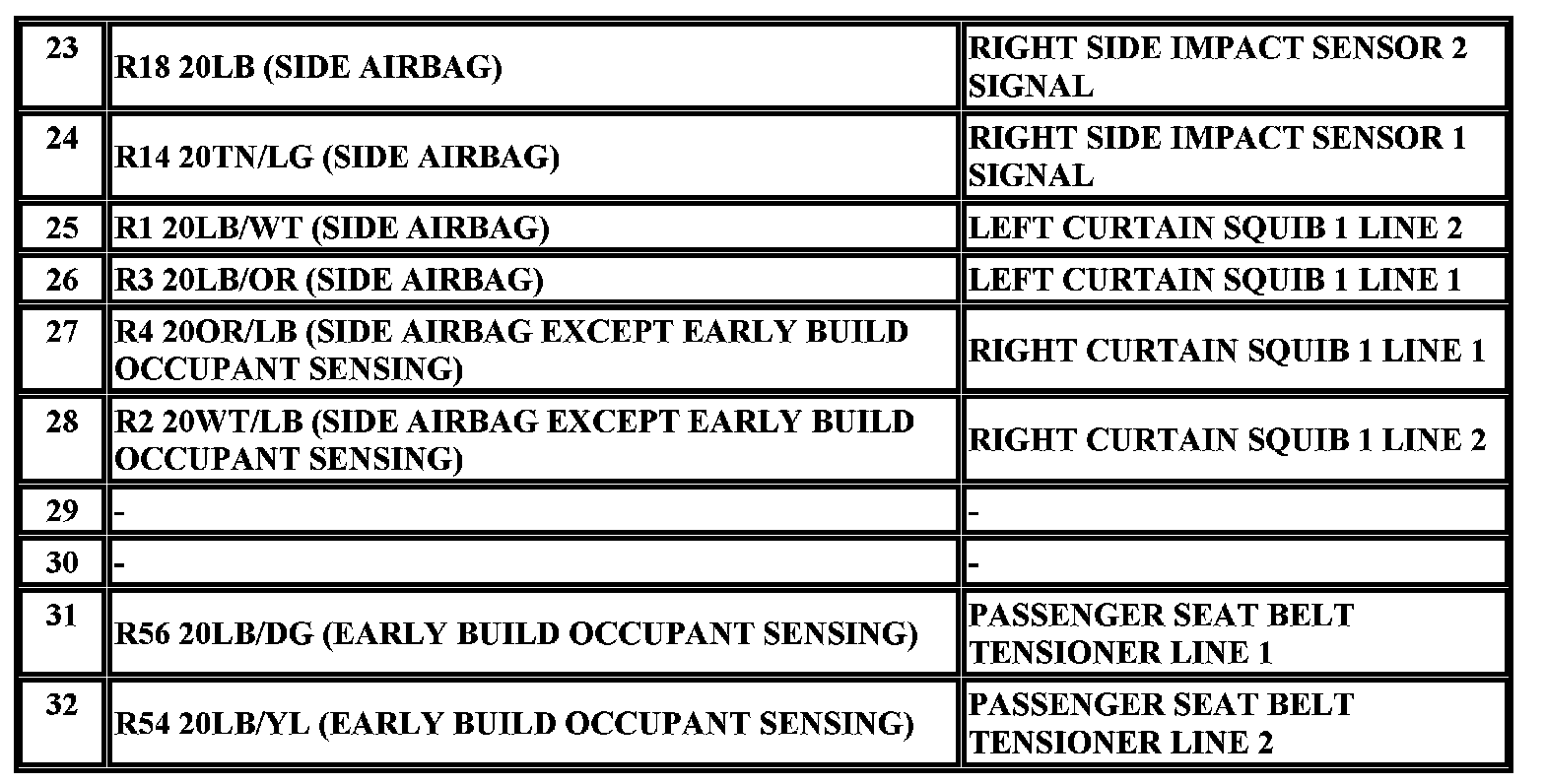

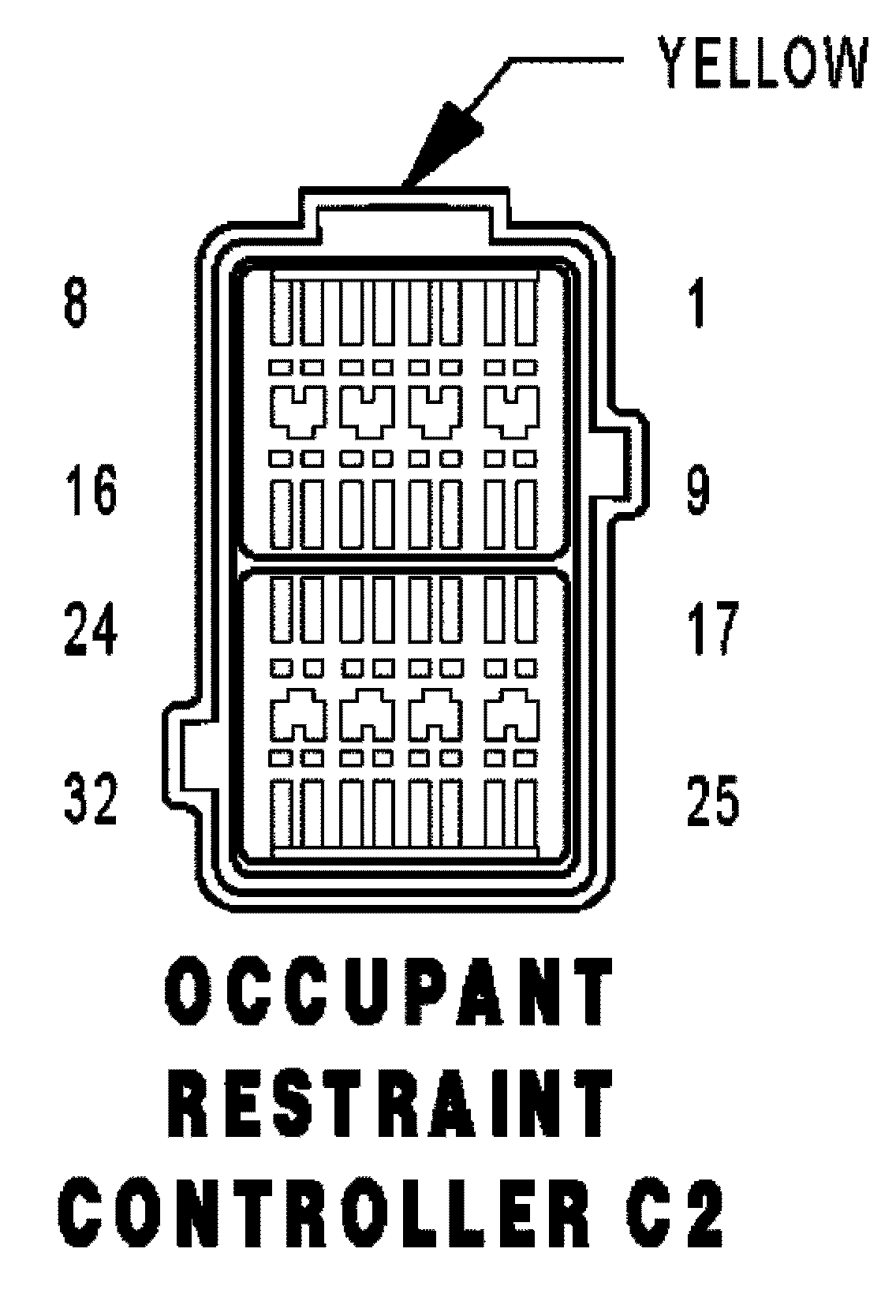

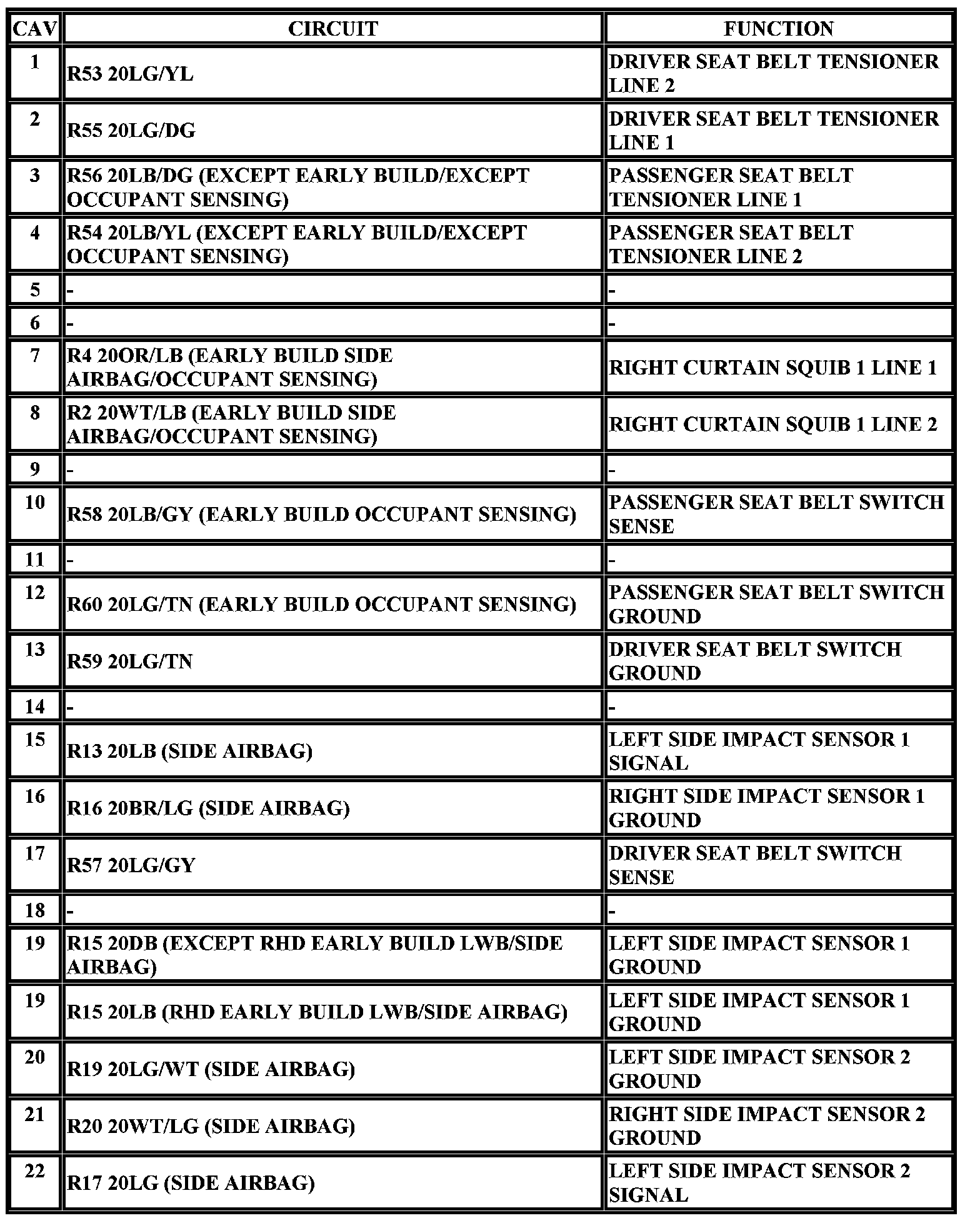

Occupant Restraint Controller C2
