Pedal Positioning Module

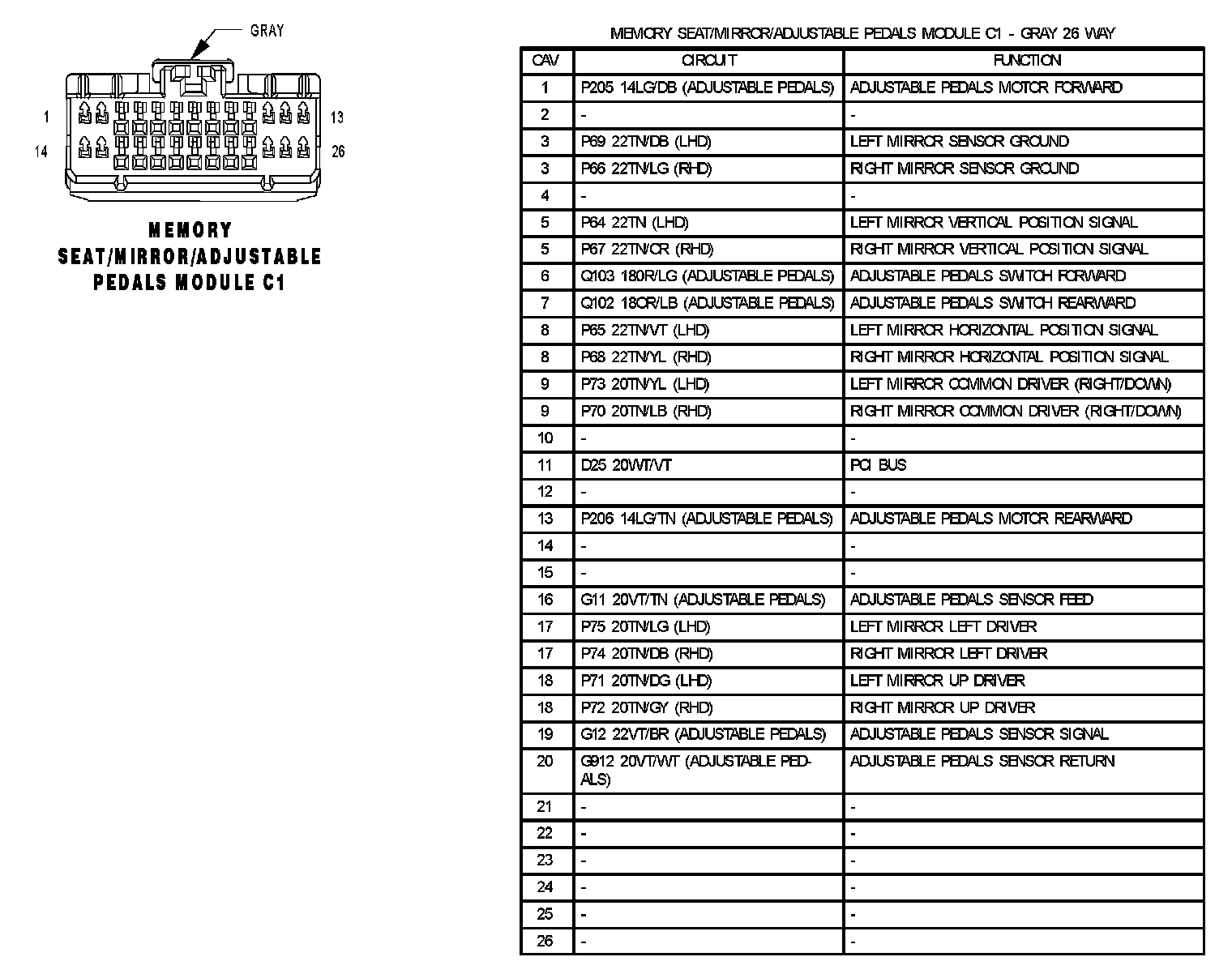

Memory Seat/Mirror/Adjustable Pedals Module C1:

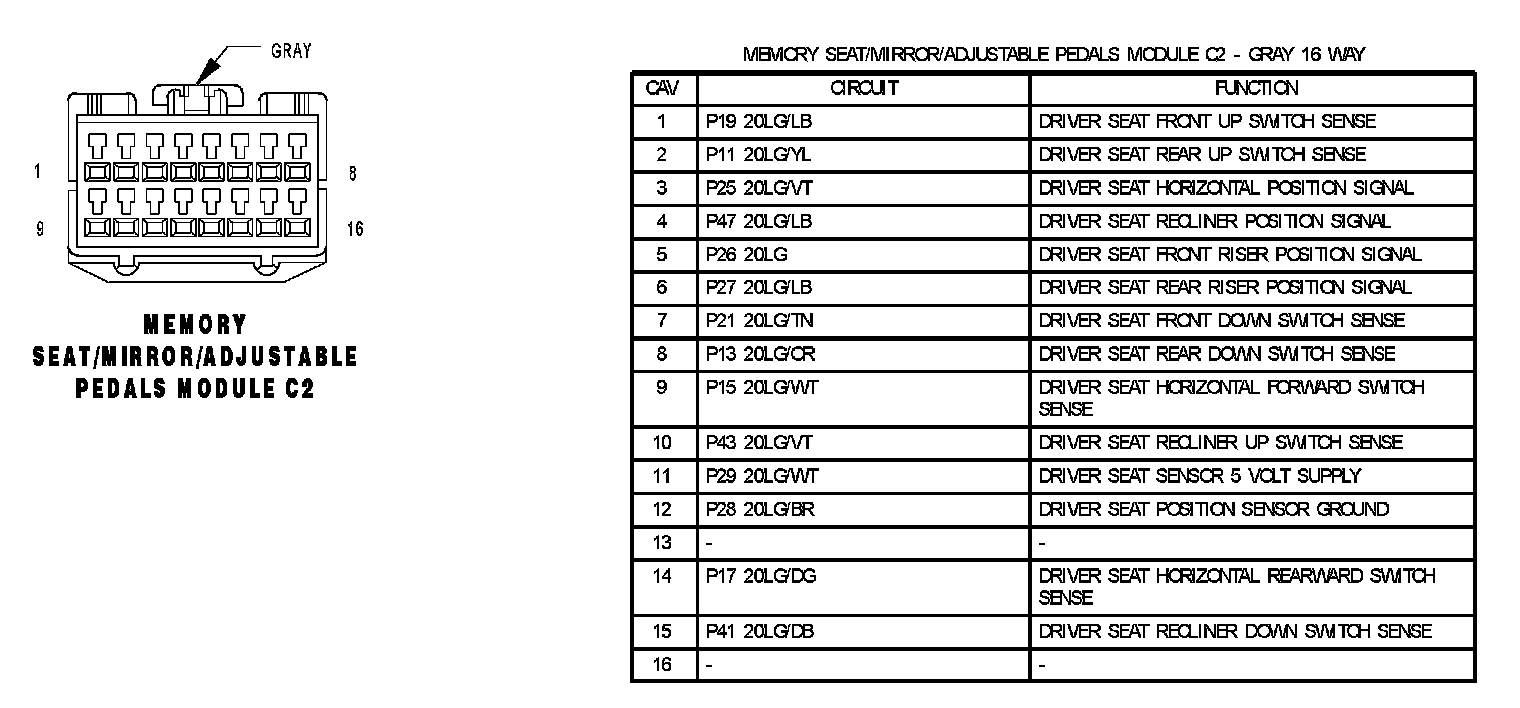

Memory Seat/Mirror/Adjustable Pedals Module C2:



Memory Seat/Mirror/Adjustable Pedals Module C3:



Memory Seat/Mirror/Adjustable Pedals Module C4:
