SBEC Controller

REMOVAL
1. Disconnect the negative battery cable.
2. Remove the battery shield.

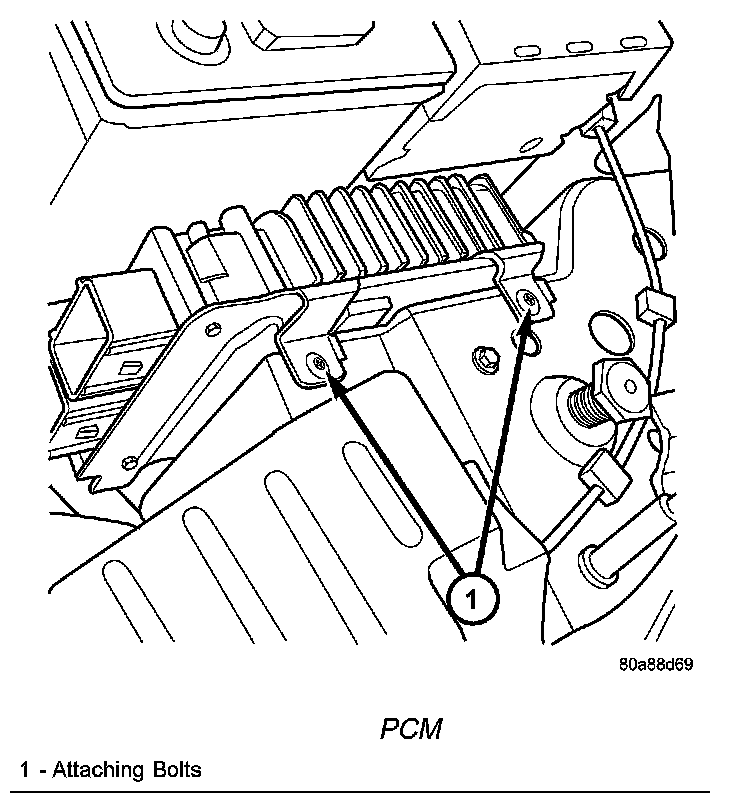

PCM:




3. Remove the 2 upper PCM bracket bolts.
4. Remove the 2 PCM connectors.
5. Remove the headlamp

PCM Lower Bolt:




6. Remove the lower PCM mounting bolt.
7. Remove PCM.

INSTALLATION
1. Install the PCM.
2. Install the lower PCM mounting bolt. Tighten bolt.
3. Install the 2 upper PCM bracket bolts. Tighten bolt.
4. Install the headlamp.
5. Install the 2 PCM connectors.
6. Install the battery shield.
7. Connect the negative battery cable.
