Connector Locations

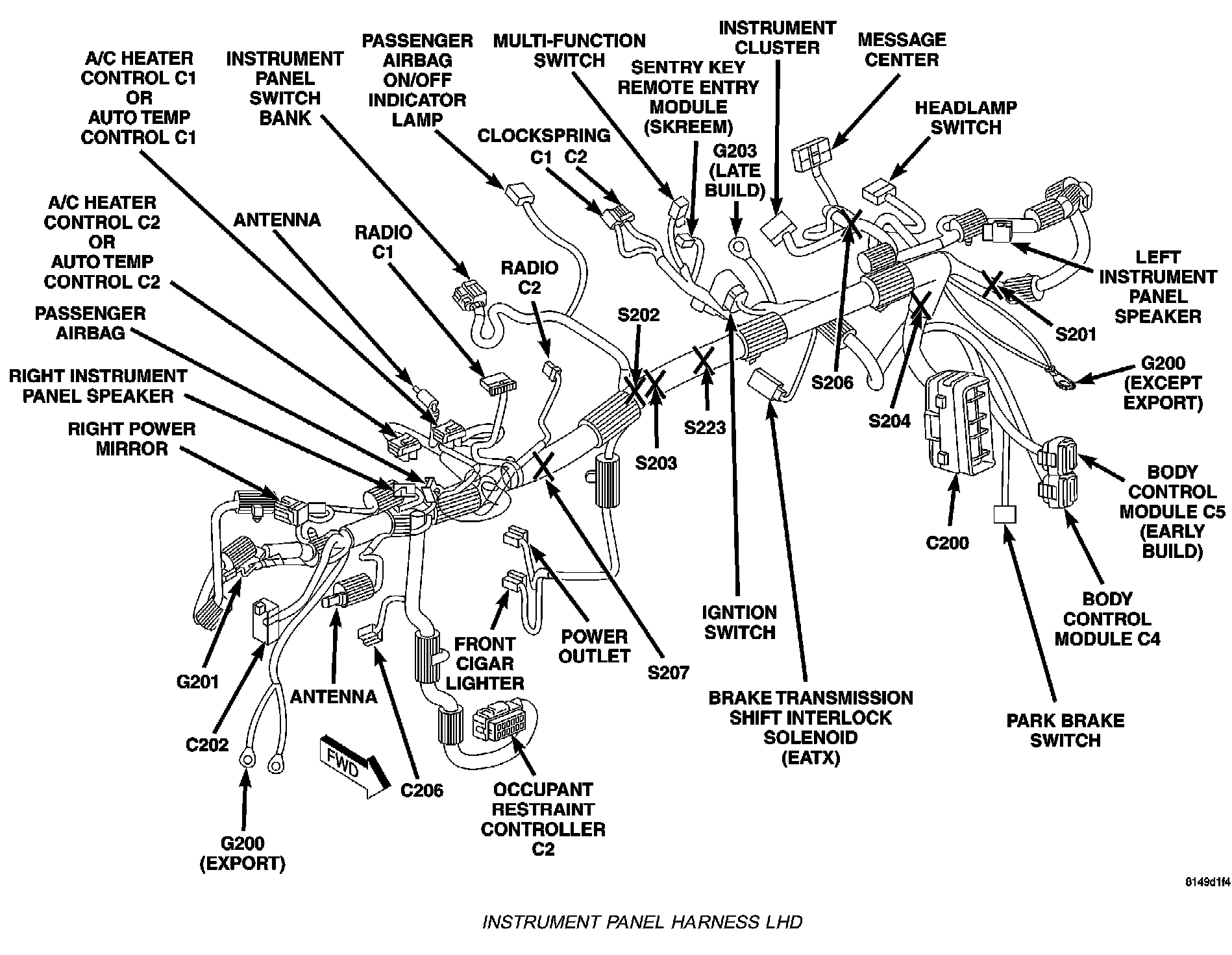

Instrumental Panel Harness LHD:

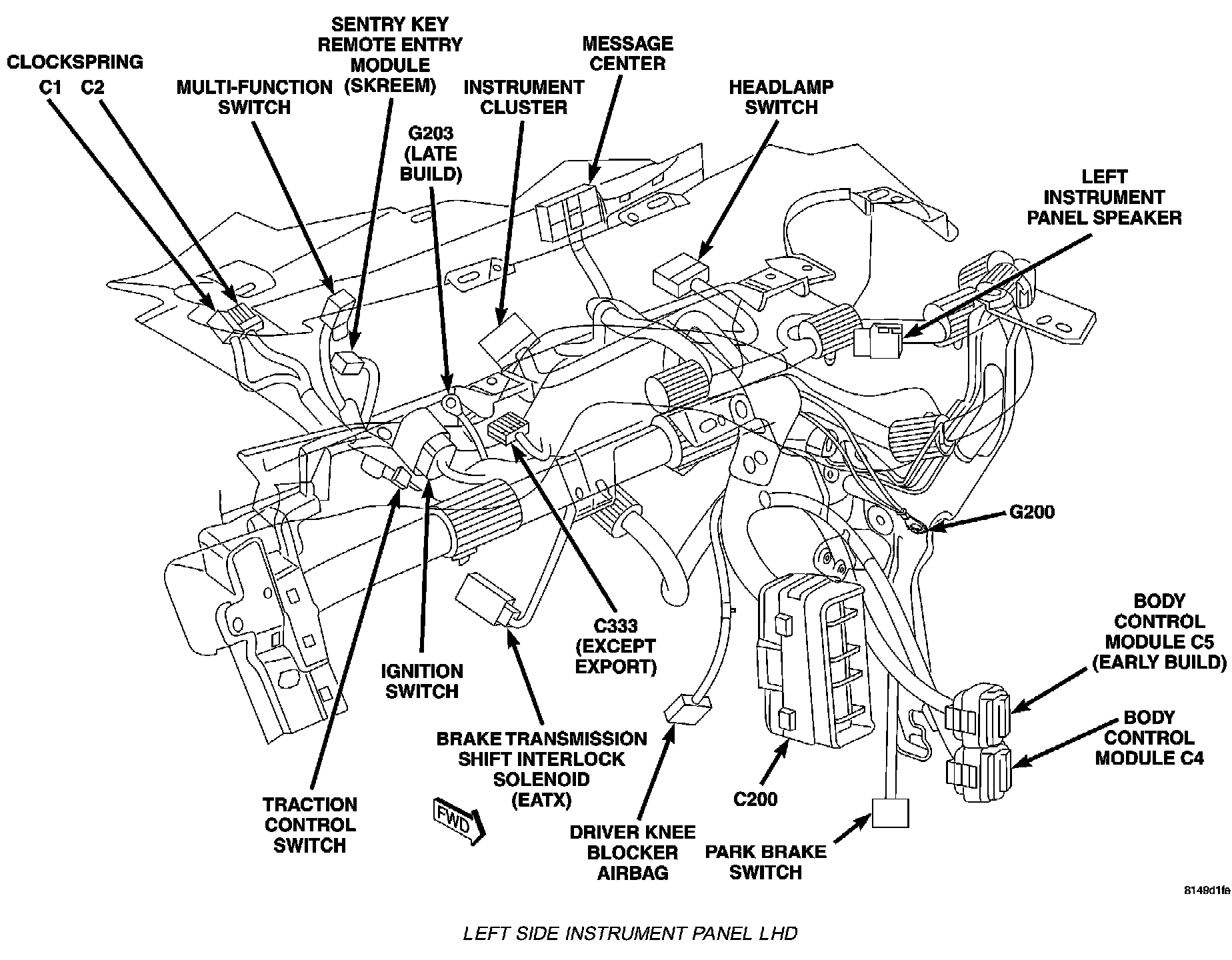

Left Side Instrument Panel LHD:

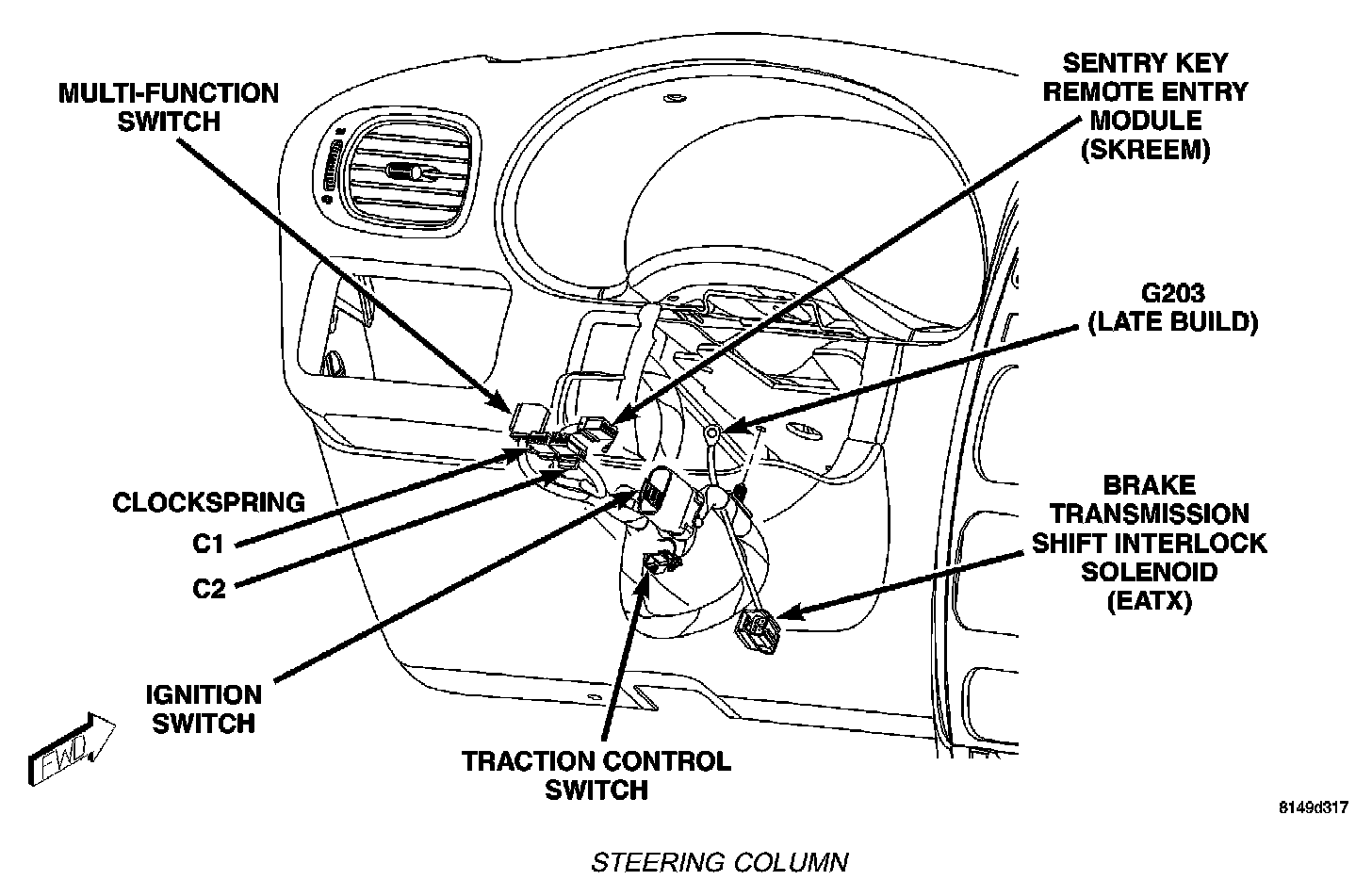

Steering Column:

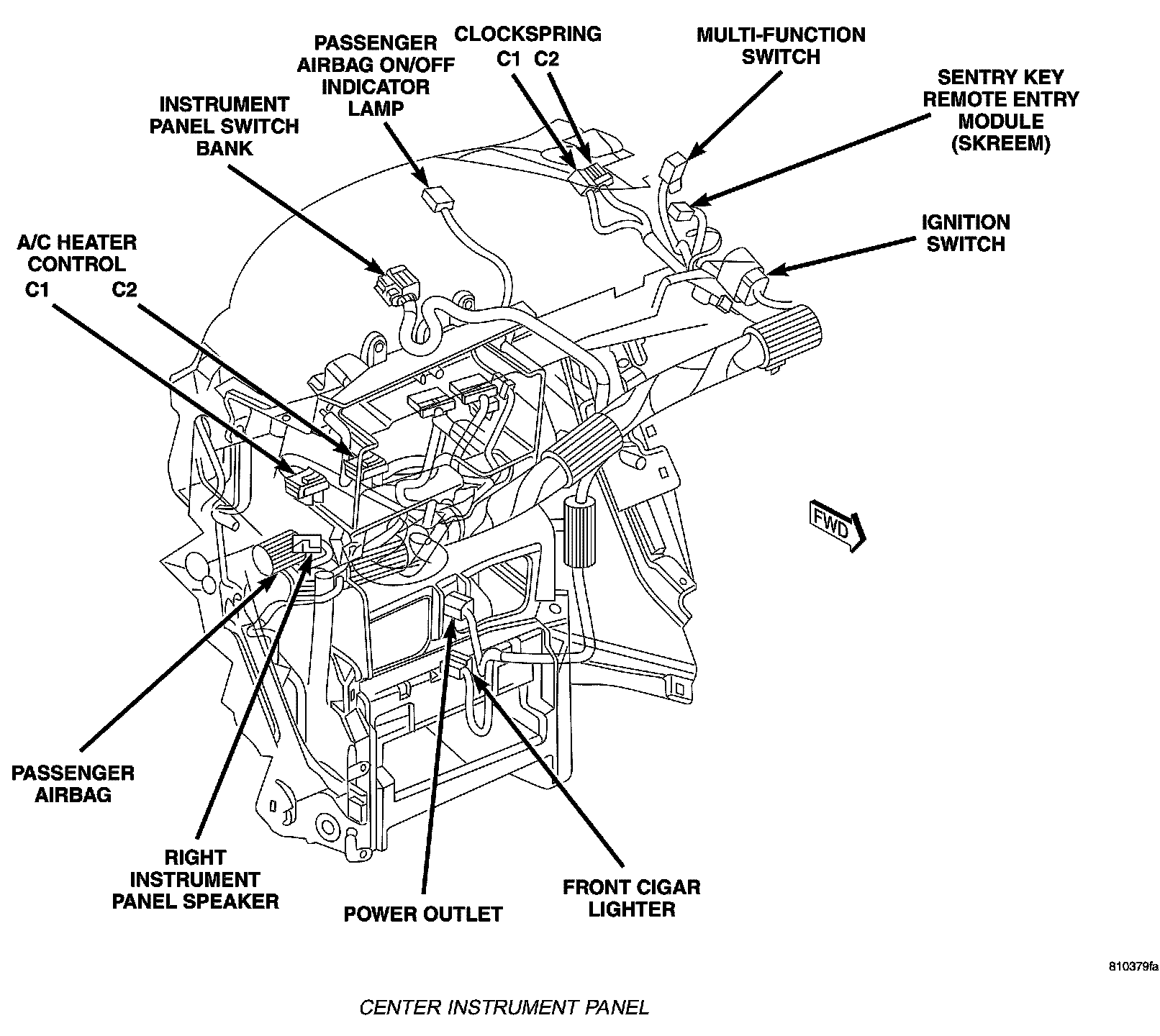

Center Instrument Panel:

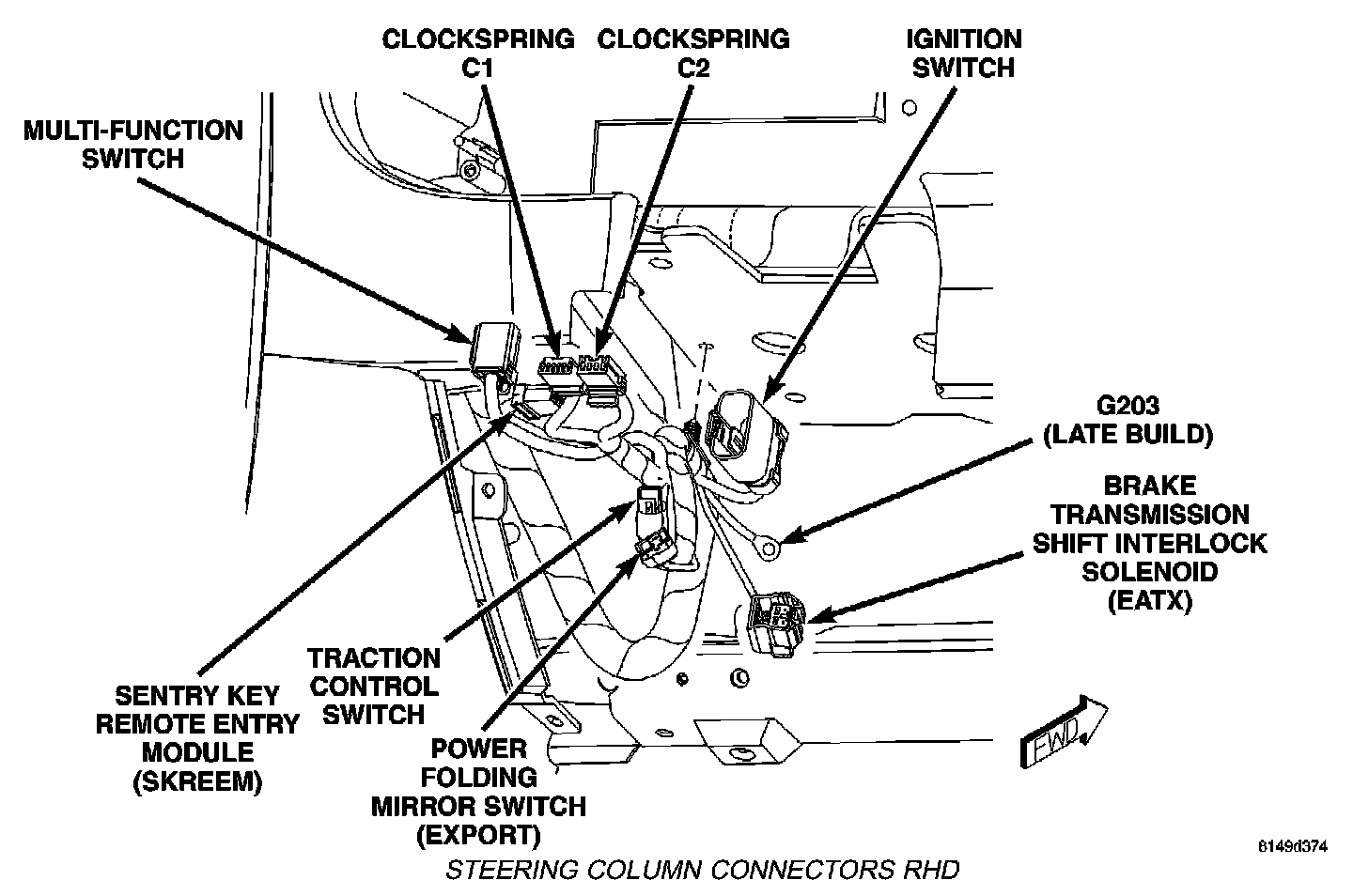

Steering Column Connectors RHD:
