Installation - Fold-In-Floor

NOTE: Be careful not to allow dirt/debris to fall into the fuel tank.
  1. Wipe seal area of tank clean and place a new O-ring seal in position on pump.
  2. Position fuel pump module in tank.

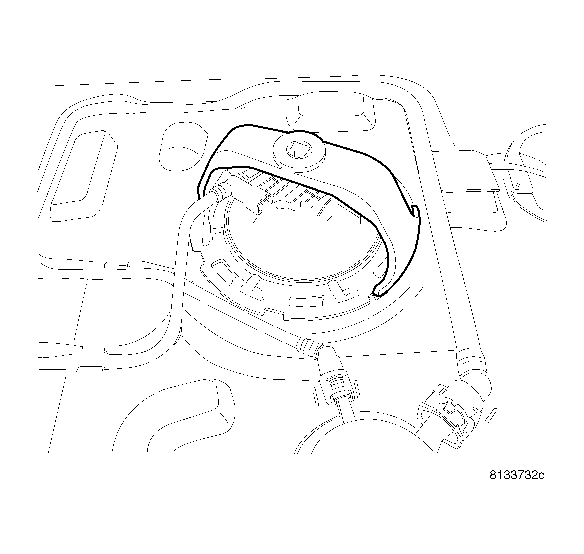

  3. Tighten lock ring using special tool #9340 to install the lock ring. See Figure.
  4. Install fuel tank, refer to INSTALLATION .
  5. Lower vehicle.
  6. Connect negative cable battery.
  7. Fill fuel tank. Use the DRB III(R) scan tool to pressurize the fuel system. Check for leaks.
  8. Install fuel filler cap.
