Leak Detection Pump: Installation

  1. Install LDP.

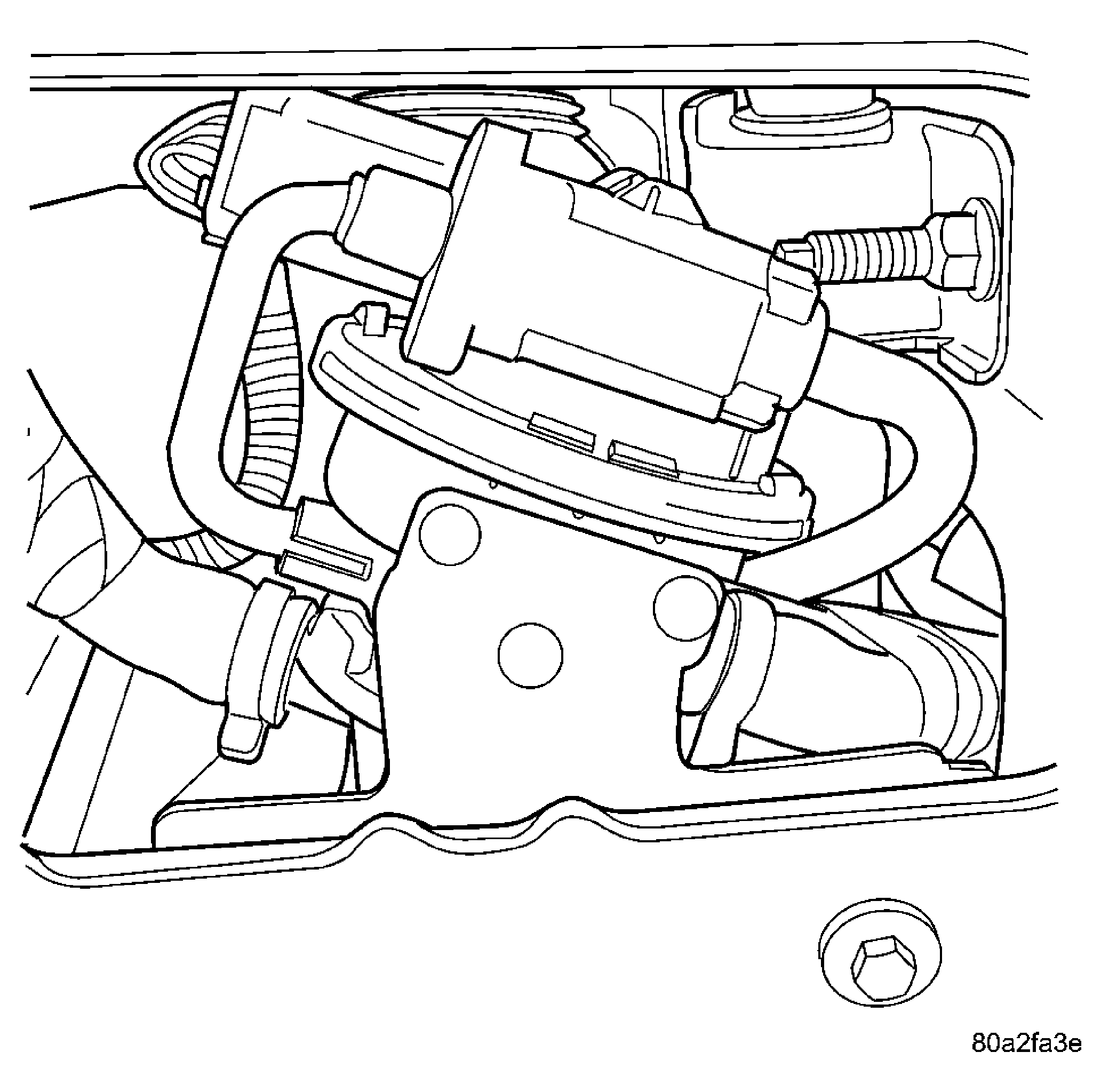

  2. Install the 3 screws and tighten. See Figure.
  3. Install the electrical connector.

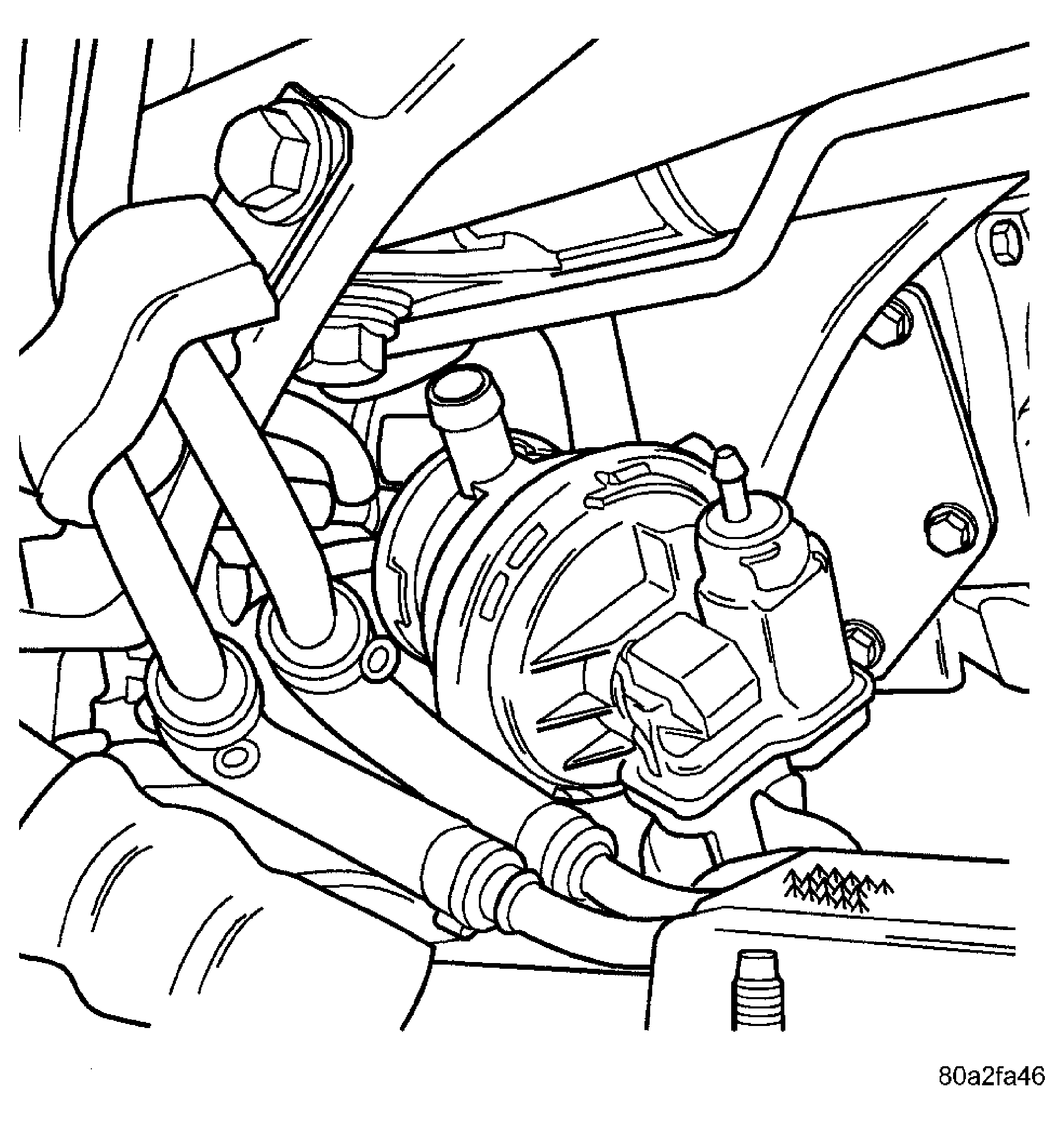

  4. Install the 3 hoses. See Figure.
  5. Lower vehicle.
  6. Connect the negative battery cable.
