Power Windows: Switch-Window: Installation

The driver and front passenger side power window switch is included in the window/lock switch.  (Refer to ELECTRICAL/POWER LOCKS/POWER LOCK SWITCH - INSTALLATION) .

1. Install the switch to the door trim panel.

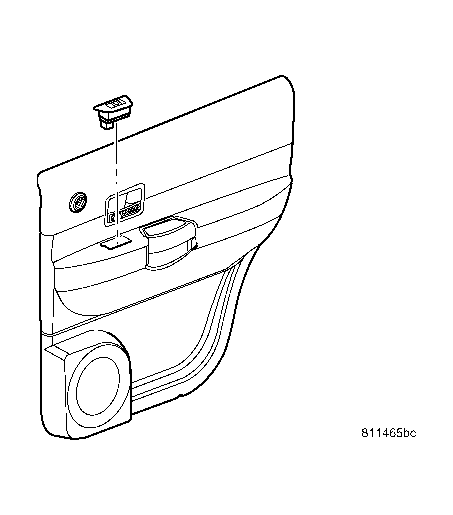

   Fig 1: Installing Switch To Door Trim Panel

   Courtesy of DAIMLERCHRYSLER CORP.
2. Install the door trim panel (Refer to BODY/DOORS - REAR/TRIM PANEL - INSTALLATION) .
3. Connect the battery negative cable.
