Sensor-Battery Temperature: Installation

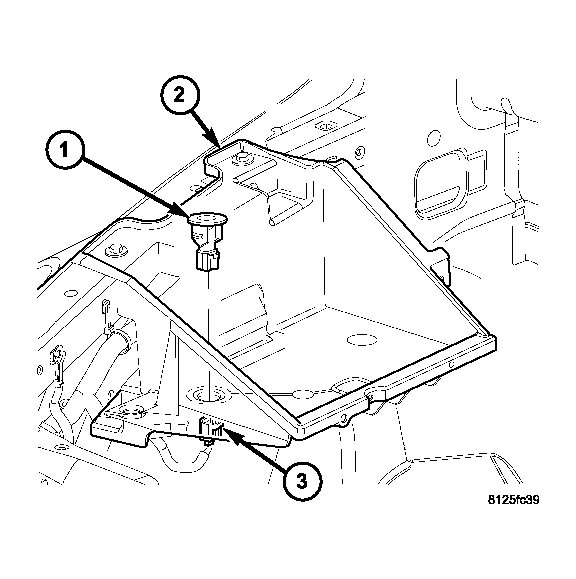

Fig 1: LOCATING BATTERY TEMPERATURE SENSOR
GC0009362Courtesy of DAIMLERCHRYSLER CORP.
  1. Feed engine wire harness (3) through hole in top of battery tray and attach sensor (1).
  2. Press sensor (1) into hole of battery tray (2).
  3. Install battery. Refer to BATTERY SYSTEM for procedures.
